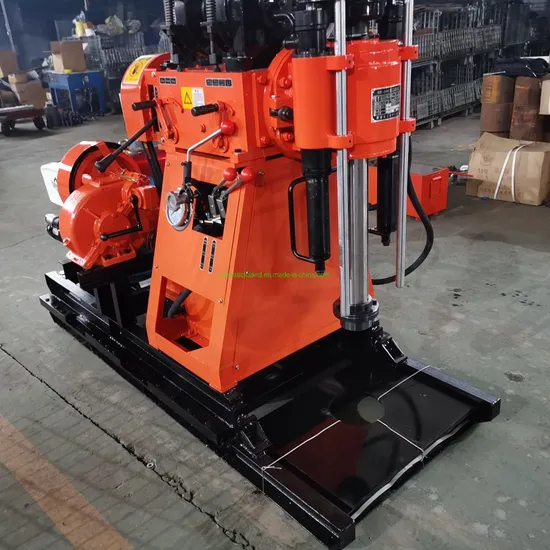

Portable Mud Pump Water Well Drilling Machine (GY-150HB)
| US$4,680.00-6,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
GY-150HB
Certification
CE, ISO 9001:2008
Condition
New
Motor
Diesel Engine
Drill Hole Diameter
76-300mm
Drill Hole Depth
150m
Bit Type
Diamond Bit
Drilling Way
Rotary
Type
Core Drilling Rig
Usage
Ore, Water Well, Coal
Quality
High Quality
Transport Package
in New Strong Plywood Case
Specification
150
Trademark
csmiracleland
Origin
Changsha, Hunan, China
HS Code
8430691900
Production Capacity
20 Sets/Month
Product Description
Product Description GY-150HB Drilling Rig With Pump Integrated:1. With BW-160 mud pump attached on the rig.
2. Large torque, multiple drilling speeds in an appropriate range.
3. Capable to drill inclined holes at different angle.
4. High efficiency drilling with hydraulic feeding structure.
5. Multiple usages, geotechnical investigation for engineering constructions, mineral exploration, small size pile hole, water well boring.
Product Parameters The technical parameter of the GY-150HB Drilling Rig:
| Basic Parameters | |
| Drilling depth | 150m 35m |
| Drilling diameter | 76mm 300mm |
| Drill pipe diameter | 42mm 50mm AW BW AWJ BWJ |
| Gross weight of drilling machine(engine not included) | 600kg |
| Dimension (length ×width × height) | 1610 × 790× 1420 mm |
| Revolving Plate | |
| Rated speed | 60 200 400 610 1100 r/min |
| Maximum torque | 1800N*m |
| Driving travel | 450mm |
| Maximum Cylinder driving force | 20KN |
| Maximum Cylinder lifting force | 30KN |
| Lifter | |
| Lifting capacity | 24KN |
| Bobbin line speed (2 layers) | 0.20 0.72 1.26 2.8 m/s |
| Bobbin diameter | 125mm |
| Rope diameter | 11mm |
| Rope capacity | 26m |
| Oil pumps: | |
| Displacement: | 20ml/r |
| Normal speed | 2500r/min |
| Normal pressure | 20MPa |
| Max pressure | 25MPa |
| Mud pumps | |
| Model | BW-160 Horizontal single cylinder double action reciprocating piston pump |
| Displacement | 160L/min |
| Maximum pressure | 1.6MPa |
| Drive motor | |
| Type | Changchai ZS1105 diesel engine |
| Rated power | 13.2KW |
| Rated speed | 2200r/min |
| weight | 160kg |
| Frame | |
| Type | Sliding type(with base frame) |
| Movable travel of drill | 400m |
| Distance between drill and hole-opening | 280mm |
Production Workshop
Buyers Show
Packaging & Shipping
