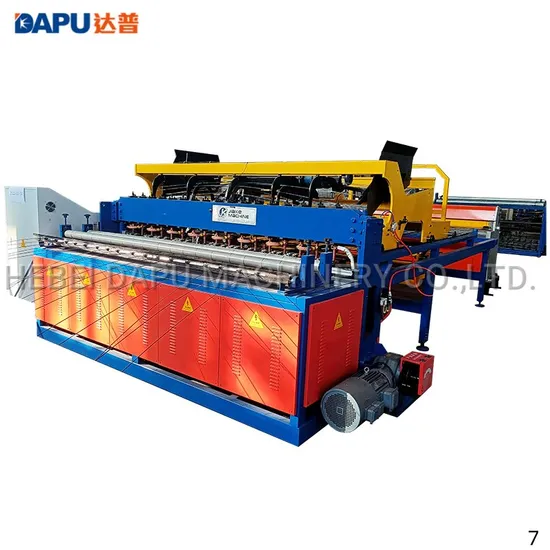

High-Quality 3-6mm Welded Mesh Machine with Cost-Effective Solution for Fencing, Construction, and Industrial Mesh Production

Product Description

High quality 3-6mm welded mesh machine in a good price
Product Description
1.This machine can make both of panel meh and roll mesh
2.Line wires are fed from wire coils automatically and through straightening rollers
3.Cross wire should be pre-cut and fed by cross wire feeder automatically
4.Equipped with cutting machine to make panel mesh and rolling machine to make roll mesh


Technical Parameters

Model	DP-FP-2500BN
Wire diameter	3-6 mm
Line wire space	50-300mm
Cross wire space	Min.50mm
Mesh width/height	Max.2.5m
Mesh length	Max.100m
Welding electrodes	48 pcs
Welding speed	50-75 times/min
Welding transformers	150kva*6pcs
Line wire feeding	From wire coils
Cross wire feeding	Pre-cut
Overall Size	5.4*3.2*1.7m
Weight	5500kg

Machine Layout

New Technologies
Welding electrodes- chromium zirconium copper Upper-20*120mm diameter
Lower-20*30*30mm, can be used 4 sides,
The welding electrode distance can be adjusted.
Main motor (5.5kw)& planetary reducer connect the main axis directly, instead of by chain.
It is not easily broken.
High stability.
Big transmission torque, suitable for high welding speed.
Cast water cooling welding transformers
Suitable for high temperature.
When 2.5-4mm one welding transformer controls 8 welding electrodes.
When 4-6mm, one welding transformer controls 4 welding electrodes.
Panasonic brand servo motor (2kw) for mesh pulling, accurate, big power.
SMC air cylinders controls the hook up&down.
J&T brand pulling rack, less noise, high accuracy
Certifications
Our Factory
FAQ
Q: What's capacity of the chain link fence machine?
A: It is depended on the mesh opening you want. Generally, if your mesh opening is 15mm, the production is about 80-90M/h; if your mesh opening is 80mm, the production is about 140-160M/h.
Q: What's the main motor of the machine?
A: If your wire diameter is less than 1.1mm, the main motor is 2.2KW. But you use the machine usually do the wire diameter over than 1.1mm, the motor will be 3KW.
Q: How many machines can be load in one container?
A: One 40 feet container can load two sets machine.
Q: Will you help us to install the machine after we get it?
A: We can send installing video and Instruction manual. Our engineer can also go to your factory to install the machine and train your labor.
Q: How long is your guarantee time?
A: 2 years
