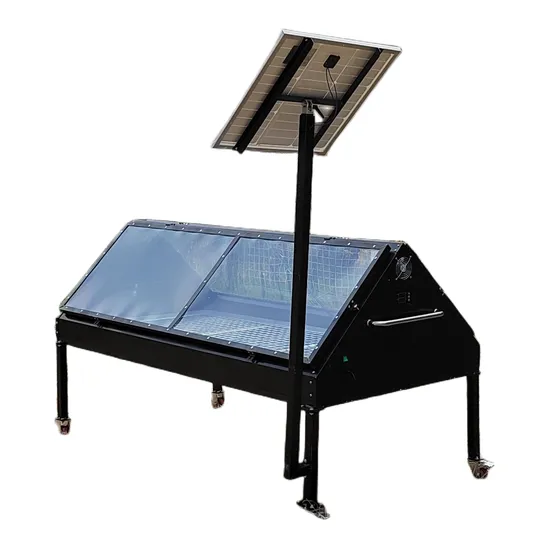

AMS-20A Portable Vegetable Fruit Seafood Grain Herb Fish Solar Dehydrator Dryer
Basic Info.
Model NO.
AMS-20A
Condition
New
Certification
ISO, CE
Application
Home, Industrial, Commercial, Farm
Specification
Normal, AMS-20
Materials
Food Grade FDA 304# Stainless Steel
Capacity
10-20kg
Temperature
30-60 Degrees Celsius
Use
Herb Spices Fruits Seafood Vegetables
Controller
New
Dry Time
2-8h
Collecting Heat Plate
Black Chromium
Service Life
5years
Weight
50kg
Packing Size
2000X950X1200mm
Color
Black
Food Tray
2unit ,304# Stainless Steel
Collector Surface
Tempered Glass
Heating Circulating Fan/Blower
18V,25W
Solar Photovoltaic Panel
30W,1unit
Transport Package
Standard Export Package
Trademark
ACME
Origin
Wuhan, China
HS Code
8419399090
Production Capacity
500sets/Month
Packaging & Delivery
Package Size
210.00cm * 150.00cm * 50.00cm
Package Gross Weight
80.000kg
Product Description
AMS-20 portable vegetable fruit seafood grain herb spices fish solar dehydrator solar dryerProduct Description: Solar Dryer lid made of transparent fibre glass sheet, thickness of 3-4 mm
Solar Dryer lid support made of 25 x 25 angle iron.
Solar Dryer lid dimensions: 2000X950 mm
Solar Dryer Frame made of 25 x 25 angle iron.
Walls of the dryer made of galvanized sheet.
Wall height up to lid:300 mm
Length of solar Dryer wall:2000 mm
Width of solar Dryer frame:950 mm
Frame cover made of galvanized sheet with 32 holes for ventilation
Solar panel installed with 18v output and capable to run the fan without using any battery cell
Galvanised tray for food items. The tray cells should be 50mmx 50mm
Galvanised tray dimensions: thickness with Rubber wheel:1900X900 X70 mm
Solar Dryer legs made of 25 x 25 iron angle; 500mm long with Rubber wheel with total locking devices - Wheel x wheel width 10 x 3 cm
Fan installed on the side of the wall, the fan is covered with gauze/screen to avoid insects entering, and the circulation of fan per second is 100.
certificate
CE certificate
ISO 9001 CERTIFICATE
ISO 14001 CERTIFICATE
