Sluggish-Tempo High-Energy Machining CNC Lathe Tool (CK61100/61125/61140/61125/61140/61160/61180/61120)
Basic Info.
Model NO.
BL-CK61100/61125/61140/61160
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Transport Package
Plywood Case
Trademark
BLIN
Origin
Ningbo China
HS Code
8458110090
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description

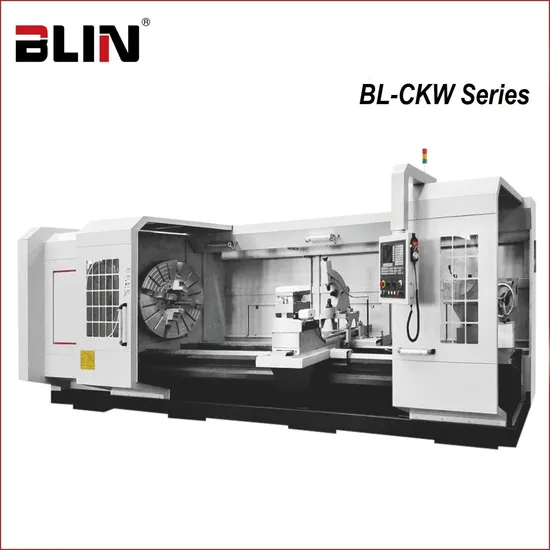

China heavy duty big bore spindle flat bed cnc lathe(BL-CK61100/61125/61140/61160)- Guideway width 755mm,spindle bore Φ130mm,heavy-duty type,suitable for heavy cutting - Mono-block bed,high rigidity - Adopt China top quality compound resin sand cast iron,after aging treatment,good precision keeping - Guideway hardened by ultrasonic frequency, good precision keeping, long using lifespan - Guideway stick PTFE,remove creeping,good wearability - Adopt manual 4 class gear spindle, stepless speed in every class
| Item | Specification | Unit | BL-CK61100 | BL-CK61125 | BL-CK61140 | BL-CK61160 |
| Capacity | Guideway width | mm | 755 | |||
| Max. swing dia. over bed | mm | Φ1000 | Φ1250 | Φ1400 | Φ1600 | |
| Max. swing dia. over slide | mm | Φ610 | Φ850 | Φ1000 | Φ1200 | |
| Center distance | mm | 1500/3000/4000/5000/6000 | ||||
| Max. loading capacity | t | 6 | ||||
| Spindle | Spindle bore | mm | Φ130 | |||
| Spindle bore taper | mm | Metric Φ140/MT6# | ||||
| Spindle speed | rpm | 4~300(manual 4 class gears,speed stepless in every class) | ||||
| Spindle nose type | / | A2-15 | ||||
| Chuck size | mm | Manual 4-jaw Φ1000mm | ||||
| Spindle motor | kw | 22 | ||||
| Feeding axes | X axes travel | mm | 520 | 620 | 720 | 720 |
| Z axes travel | mm | 1350/2850/3850/4850/5850 | ||||
| X/Z axes rapid rate | m/min | 4/6 | ||||
| Tool post | Tool post type | mm | 4 station electric tool post | |||
| Toolshank size | mm | 40×40 | ||||
| Tailstock | Tailstock quill travel | mm | 300 | |||
| Tailstock quill dia. | mm | Φ160 | ||||
| Tailstock quill taper | / | MT6# | ||||
| Overall size | L | mm | 5000/6500/7500/8500/9500 | |||
| W×H | mm | 2100×2100 | 2250×2300 | 2350×2450 | 2350×2600 | |
| Weight | N.W. | T | 10/11.5/12.5/13.5/14.5 | 11/12.5/13.5/14.5/15.5 | 12/13.5/14.5/15.5/16.5 | 13/14.5/15.5/16.5/17.5 |
Standard configuration: - GSK controller
- Manual chuck
- 4 station tool post
- Manual tailstock
Optional configuration: - SIEMENS 808D ADVANCED/FANUC 0I TF controller
- 6/8 station tool turret
- Hydraulic tailstock Other models Choice:
