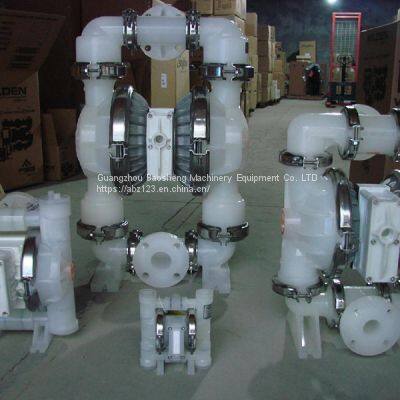

American brand WILDEN pneumatic diaphragm pump WILDEN acid and alkali pneumatic pump

Product Details

Product Description

Product Description
WILDEN Pneumatic pump In 1955, WILDEN developed the world's first pneumatic two-compartment diaphragm pump. After more than 50 years of continuous process improvement and technical innovation, WILDEN has developed into the world's largest manufacturer of pneumatic diaphragm pumps and accessories. WILDEN has distributors in 64 countries and products worldwide. As the core product of WILDEN, WILDEN pneumatic diaphragm pump has a full range of types, with a wide range of options.
Advantages of the WILDEN pump
Unbalanced valve patented design, will not stop unbalanced piston, no dead point
Plastic self lubricating air system, no need for oil lubrication
Minimum energy consumption, very low compressed air leakage
Special fast exhaust structure, fully ensure that the air valve does not freeze, improve the air utilization rate
The number of parts and wearing parts in the single pump is the least in the industry, unique clamp design, fast and convenient disassembly
The patented stiffener design gives the WILDEN diaphragm the longest life and highest temperature resistance in the industry
Passed ISO9001 certification, and the European Community CE certification
The universal advantages of pneumatic diaphragm pump
No electric spark, can run empty, can be self-priming start work, without complex control, simple operation, self-priming height up to 6M
Can be selected by the shell of the pump body and diaphragm material to transport different characteristics of strong acid, alkali, strong organic solvent liquid medium
No dynamic seal, no pollution of the material, low shear force, not easy to damage the material structure
Submersible, mobile, easy handling, can be used as a mobile pump
No rotating parts (or bearings), no mechanical shaft seal, no connectors, low maintenance cost
The delivery speed can be changed by changing the gas volume
The conveying height can be changed by changing the pressure
Can transport high viscosity, high viscosity liquid medium
Can switch the outlet at any time, not afraid of blockage
Automatic pressure balancing (without pressure relief valve)
WILDEN pneumatic diaphragm pump
1. Suitable for the chemical industry in high, medium and low viscosity of all kinds of acid, alkali and corrosive fluid, benzene, ketones and esters and other solvents transport. Due to the use of compressed air as power, flow, pressure adjustment range is wide;
2. It is suitable for the transportation of all kinds of fluids in flammable and explosive environment, because the pneumatic diaphragm pump does not generate electric sparks, does not generate and accumulate heat in the work;
3. It is suitable for the transportation of all kinds of precious liquid, high harm, high corrosion and other dangerous materials in fine chemical industry, because the pneumatic diaphragm pump has no dynamic seal structure, completely separated from the outside world, no material leakage;
4. Suitable for harsh working conditions such as oil fields, mines, construction sites containing solid particles of wastewater, no blockage, no overload, no leakage worries;
5. It is suitable for conveying all kinds of materials in light and mobile occasions without foundation. Small footprint, simple and economical installation;
6. It is suitable for the transportation of high purity and high clean materials, because the pneumatic diaphragm pump does not need lubrication, no lubricant pollution of materials. Such as in pharmaceutical intermediates and products, laboratory pharmaceutical delivery;
7. It is suitable for fluid transportation with unstable chemical properties, because the pneumatic diaphragm pump has very low shear force on the material and does not destroy the material structure. Such as transport photosensitive materials, flocs, crystal liquid
8. With automatic batch pumping and metering functions;
9. It is suitable for feeding pump of plate and frame filter press.
10. Widely used in shipyards, T series Marine pneumatic diaphragm pump, used for conveying sewage oil, because the pneumatic diaphragm pump has strong self-priming ability and conveying materials with a certain viscosity, the maximum self-priming height can reach 7 meters
11, because the pneumatic diaphragm pump may pass certain particles, can idling self-priming, explosion-proof and other characteristics, widely used in coal mine, used to transport sewage.
P. 025-1/4 "(6.35mm) plastic concentrated acid pump
Common models:
P.025/PPPPP/WFS/TF/PWF
P. 025 / PZPPP TNL/TF/PTVP. 025 / KZPPP TNL/TF/KTV technical parameters
Size: 1/4"
Maximum flow: 4.8GPM (18.2LPM)
Maximum operating pressure: 125PSI (8.6BAR)
Liquid connection structure material: polypropylene, carbon filled acetal, polyvinylidene difluoride
Dry suction: 10' (3m)
Maximum particle size available: 1/64" (0.4mm)
Elastomer: butadiene rubber, Teflon PTFE, WIL-FLEXTM, fluorinated rubber
P1-1/2 "(12.7mm) plastic dilute acid pump
Common models:
P1/PPPPP/WFS/WF/KWF
P1/PPPPP/TNU/TF/KTV
P1/KKPPP/TNU/TF/KTV technical parameters
CAL: 1/2"
Maximum flow: 14.8GPM (56.1LPM)
Maximum operating pressure: 125PSI (8.6BAR)
Structure material: polypropylene, carbon filled acetal, polyvinylidene difluoride, Teflon PTFE
Dry suction: 20' (6.1m)
Maximum particle size available: 1/16" (1.59mm)
Elastomer: butadiene rubber, polyurethane, SaniFlexTM, fluorinated rubber, WIL-FLEXTM, Teflon PTFE
P2r-1 "(25.4mm) plastic corrosion resistant pump
Common models:
P2/KKPPP/TNU/TF/KTV/0040
P2/KKPPP/TNU/TF/KTV/0040
P2/PKPPP/TNU/TF/PTV/0400
P2/PKPPP/WFS/WF/PWF/0400
Technical parameters
Size: 1"
Maximum flow: 37GPM (140.0LPM)
Maximum operating pressure: 125PSI (8.6BAR)
Structure material: polypropylene, polyvinylidene difluoride, Teflon PTFE
Dry suction: 18' (5.5m)
Maximum particle size available: 1/8" (3.18mm)
Elastomer: butadiene rubber, polyurethane, SaniFlexTM, fluorinated rubber, WIL-FLEXTM, Teflon PTFE
P4-1 1/2" (38.1mm) plastic corrosion resistant pump
Common models:
P4/KKAPP/TNU/TF/KTV
P4/PPAPP/TNU/TF/PTV
P4/PPAPP/WFS/WF/PTV
Technical parameters
1-1/2 "diameter:
Maximum flow: 92GPM (348.0lpm)
Maximum operating pressure: 125PSI (8.6BAR)
Structure material: polypropylene, polyvinylidene difluoride, Teflon PTFE
Dry suction: 16' (4.9m)
Maximum particle size available: 3/16" (4.76mm)
Elastomer: butadiene rubber, polyurethane, SaniFlexTM, fluorinated rubber, WIL-FLEXTM, Teflon PTFE
P8-2 "(50.8mm) plastic corrosion resistant pump
Common models: P8 / KKPPP/TNU/TF/KTV / 0400, P8 / KKPPP/TNU/TF/KTV, P8 / PKPPP/WFS/WF/PWF / 0400. The P8 / PPPPP/WFS/WF/KWF, P8 / KZPPP TNL/TF/KTV,, P8 / PPPPP / TNU/TF/KTV, P8 / KKAPP TNU/TF/KTV
P8/PKAPP/TNU/TF/PTV
P8/PKAPP/WFS/WF/PTV
Technical parameters
Size: 2"
Maximum flow: 155GPM (587LPM)
Maximum operating pressure: 125PSI (8.6BAR)
Structure material: polypropylene, polyvinylidene difluoride, Teflon PTFE
Dry suction: 23' (7.0m)
Maximum particle size available: 1/4" (6.35mm)
Elastomer: butadiene rubber, polyurethane, SaniFlexTM, fluorinated rubber, WIL-FLEXTM, Teflon PTFE
