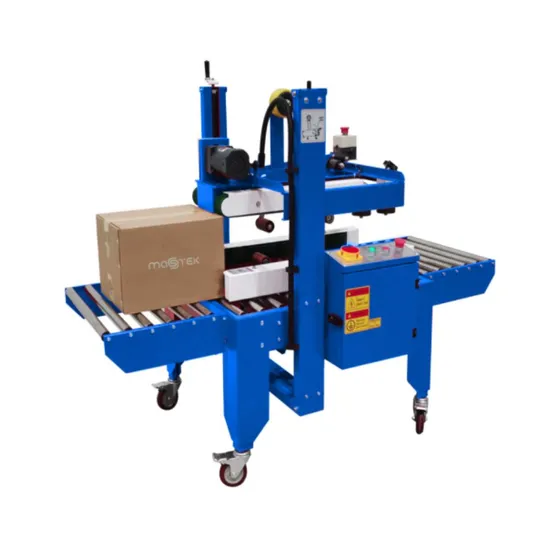

Semi Automatic Side+Top Drive Carton Sealer Carton Sealing Machine
| US$1,299.00-1,799.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
MC-05Pro
Packaging
Cartons
Automatic Grade
Semi-Automatic
Application
Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Usage
Outpacking
Type
Sealing Machine
Model
Mc-05PRO
Condition
New
Voltage
110/220/380V/1phase
Power
0.4kw
Weight
120kg
Max Speed
20 CTN/Min
Tape
48-72mm
Certification
CE ISO9001
Specification
1020*900*1350mm
Origin
Jiangsu, China (Mainland)
HS Code
84224000
Production Capacity
300 Set/Sets Per Month
Product Description
| TECHNICAL DATA | STANDARD FEATURES | ||||||||||
| Performance: | Cylinder | AIRTAC /(MC-06FA Model) | |||||||||
| Throughput Speed | 20M/Minute | Electromagnetic Valve | AIRTAC /(MC-06FA Model) | ||||||||
| Case Size (Outside Dimensions) | L:150-unlimited W:150-500mm H:150-500mm | Motor | CPG | ||||||||
| Sensor | OMRON/(MC-06FA Model) | ||||||||||
| Operation | Air Flitter Valve | AIRTAC/(MC-06FA Model) | |||||||||
| fold flaps | Manual | Tape Cutter | SKD11(Japan) | ||||||||
| adjust size | Manual (MC-05FA model "AUTO") | Motor Protector | S c h n e i d e r | ||||||||
| Top & Bottom Seal | Electric Switch | S c h n e i d e r | |||||||||
| Tape | 48-72mm | ||||||||||
| Machine Head | 3inch (2inch optional) | ||||||||||
| Service Requirements | Certification | CE | |||||||||
| Air Supply | NON (MC-06FA Model 6Bar ) | Machine Warranty | 1 year | ||||||||
| Power | 400W | ||||||||||
| Voltage | 110/220V, 1ph, 50/60Hz | ||||||||||
| Machine Data | Optional | ||||||||||
| Weight | 120KG | Top & Bottom seal | Hot glue | ||||||||
| Dimensions | 1020*900*1350mm(L*W*H) | Safety door system | with safety sensor | ||||||||
| Outfeed Pass Height | 600 mm +/- 150 mm | Output conveyor | custom made conveyor | ||||||||
| MC-05Pro FEATURE |
| Side drive + Top Drive system 1. Two drive systems make the machine more durable 2. Both are suitable for heavy and high boxes | Independent Electric Box with main power switch, pause, power indicator button, let machine work more visible | Safe & Intelligent Function 1. Two E-Stop buttons on machine 2. S chneider relays protect the motor from burning |
Length:150-unlimited
Width:150-500mm
Height:150-500mm
Side Drive with E-stop on machine
maximum load weight:25KG
2 or 3 inches tape head
Economical Model
SUS304 Stainless Steel
Carton Sealing Machine MC-05Pro ( stainless)
MC-05Pro with stainless steel 304 standard frame, and it's suitable for humid environment, widely used in food industry.
All frame stainless steel
Side+Top drive
independent control box
high security system
FOR RANDOM SIZE wide box
Carton Sealing Machine MC-05FA
Length: 250-600mm
Width: 150-500mm
Height: 150-500mm
Automatic Adjust Width and height
Speed: 10-12ctn/min
Side+Top drive
independent control box
high security system
| Packaing Line: 1. Carton sealing machine + flexible Conveyor 2.Carton sealing & strapping All in one machine |
