Byd Brand 1.5ton 2ton 3ton Electric Forklift Small Battery Operated Electric Forklifts

Product Description

Italy SME/USA curtis motor
Suspended brake system
USA Curtis electric control
Multi-stage pump control, efficiency hydraulic system

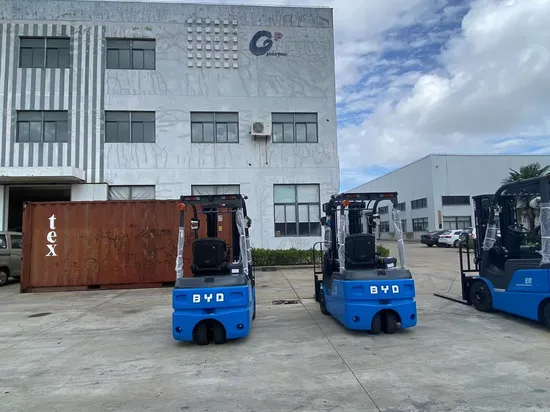

BYD brand 1800kg Capacity 3-Wheel Electric Forklift Truck

Model		Unit	CPD20	CPD25	CPD30	CPD35
Controller Type			ZAPI AC
Rated capacity		kg	2000	2500	3000	3500
Load centre		mm	500		500
Lift height		mm	3000		3000
Free lifting height		mm	160		165	170
Fork size	TxWxL	mm	40x122x1070		45x125x1070
Tilting angle		Deg	6/12		6/12
Overall Dimension	Length (to forkface)	mm	2375	2400	2615	2670
	Width	mm	1150		1230
	Height when mast lowered	mm	2010		2075	2150
	Height when mast extended	mm	3990		4100	4160
	Height to safeguard	mm	2110		2150
Turning radius	Min.	mm	2080	2100	2280	2335
Front overhang		mm	460		485
Tread	F/R	mm	960/950		1000/980
Ground clearance	Min.	mm	130		130
Wheelbase		mm	1500		1680
Fork spread	Min./Max.	mm	250/1040		250/1100
Working aisle width	1000x1200 crossways	mm	3810	3830	4035	4090
with pallet(Ast)*	800x1200 lengthways	mm	3940	3960	4165	4220
Speed	Travel(Laden)	km/h	12		12
	Travel(Unladen)	km/h	12.5		13
	Lifting(Laden)	mm/s	290		250
	Lifting(Unladen)	mm/s	440		400
Gradeability	Laden	%	15		15
	Unladed	%	15		15
Self weight	Include battery box	kg	4130	4300	5060	5380
Tyre	Front		7.00-12-12PR		289-15-12PR
	Rear		187-8-14PR		189-8-14PR
Motor	Driven motor	kw	11		12
	Pump motor	kw	11		12
Battery	Standard(Option)	V/Ah	48/600		80/500
Operating pressure for attachment		Mpa	17.5		17.5

1. Fashionable appearance, following the classic appearance style of XC lithium-ion special vehicles, with strong and smooth lines, exquisite and compact overall, fashionable and stable overall
2. Ultra long endurance, equipped with a large capacity lithium battery as standard, with a capacity 20% larger than that of a regular low-voltage 80V/404Ah lithium battery, which can meet the requirements of long endurance. Equipped with a 317V automotive level high voltage platform, the vehicle has a smaller current and extremely low heat loss.
3. Fast charging comes standard with super fast charging technology, which can charge 1C. The standard battery can be fully charged in 1 hour, compatible with the electric vehicle charging station function, making charging more convenient.
4. The driving and working system under the internal combustion condition adopts the automobile level permanent magnet synchronous system, which is matched with the reducer with large speed ratio. The driving speed, climbing gradient and acceleration performance exceed that of the internal combustion vehicle. The driving axle, steering axle and tires of the internal combustion forklift can meet the use requirements under the high-intensity condition.
5. Safe and reliable. The entire vehicle adopts a sealed cover design, with a high level of protection that is not afraid of harsh working environments, ensuring safety and reliability. The electrical system is equipped with high-voltage interlocking and insulation detection, achieving safety protection that surpasses that of automobiles
6. Stable frame and arm structure, with strong durability
7. Convenient Maintenance: The machine cover is equipped with a locking buckle, making it easy to replenish fluids and maintain. The water tank cover is tool free to disassemble, making it easy to operate and convenient for cleaning and maintenance.
