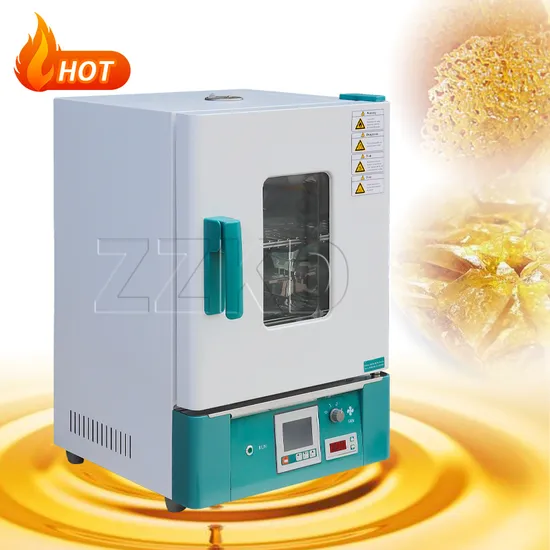

Manufacturer Dry Heat Sterilization Forced Air Drying Oven Blast Laboratory Drying Oven for Stainless Steel Dry Cabinet Laboratory

Product Description

Manufacturer Dry Heat Sterilization Forced Air Drying Oven Blast Laboratory Drying Oven for Stainless Steel Dry Cabinet Laboratory
Product Description
Forced Air Drying Oven is widely used for drying, curing, melting and heating in experiments of industrial enterprises, scientific research institutions, and health and medicine units etc.
Characteristics:
1. Vertical type, cold rolling steel electrostatic spraying exterior.
2. Well coordinated bottom air blower and heater and vertical hot air circulation ensure the temperature evenness.
3. Favin stainless steel or cold rolling steel inner chamber; Foursquare semicircle transition; Flexible positioning and removable shelf. Airduct lateral plate and bottom heater covering are easy to assemble and disassembly for convenient cleaning.
4. PID micro-computer intelligent temperature controller with functions of timing and over-temperature protection. Precise test in temperature control and easy to read.
5. Door with wide double-glass observation window, adjustable airtight buckle lock, and heat resistant silicon rubber seal, which efficiently prevent heat loss.
According to the different power and inner dimensions, Forced Air Drying Oven has many other models.

		WGLL-30BE	WGLL-45BE	WGLL-65BE	WGLL-85BE	WGLL-125BE
Cycle mode		Forced convection
Performance	Operating temperature range	RT+10-300ºC
	Temperature resolution	0.1ºC
	Temperature fluctuation	±1ºC
	Temperature distribution accuracy	±2.5%
Structure	Studio	Mirror stainless steel studio
	Shell	Cold rolled steel plate, surface electrostatic spraying
	Insulation	High quality rock wool board (with CE certification)
	Heater	Stainless steel electric heating tube
	Rated power	0.8kW	1.2kW	1.6kW	2.0kW	2.3kW
	Vent	φ35mm top (with test hole function)
Controller	Temperature control method	Dual temperature segment intelligence
	Temperature setting method	Light touch button setting
		The measured temperature is displayed on the upper part of the LCD screen, and the set temperature is displayed on the lower part of the LCD screen.
	Timer	0-9999 minutes (with timer waiting function)
	Run function	Fixed value operation, scheduled operation, automatic stop.
		New digital display temperature limiter, 4-speed 3-speed speed regulating fan (both models 230 and 625 have no fan speed regulation), sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, and power-off parameter memory
	Sensor	pt100
		High-precision digital display independent temperature limiter, over-temperature sound and light alarm
Specification	Studio (width*depth*height mm)	310*310*310	350*350*350	400*360*450	450*420*450	500*450*550
	Appearance (width*depth*height mm)	450*500*690	490*540*730	540*550*830	590*610*830	640*640*930
	Outer packaging (width*depth*height mm)	540*575*855	580*650*895	635*625*995	680*685*1000	710*730*1100
	Content volume	30L	45L	65L	85L	125L
	Number of partition layers (maximum)	5	6	8	8	11
	Partition load-bearing	15kg
	Space between partitions	40mm
	Power supply (50/60HZ) rated current	AC220V/ 3.6A	AC220V/ 5.5A	AC220V/ 7.2A	AC220V/ 9.0A	AC220V/ 10.5A
	Net weight/gross weight(kg)	33/37	37/43	44/49	50/56	60/66
Accessories	Partition	2
	Partition rack	4
Can add configuration		Partition, RS485 interface, printer, programmable temperature controller, remote control, wireless SMS alarm system, U disk data storage, 3.5-inch color touch screen temperature controller

WGLL-BE series have the following characteristics other than the above functions
1. LCD temperature controller.
2. 4-grade speed fan, adjustable for different requirements.
3. Over-temperature protection system.
4. High-precision digital independent temperature limiter.
5. 304:SUS304 Stainless Steel Body.

Company Profile
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company. The main products are rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low-temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, blast drying oven, freeze dryer, water/oil bath, magnetic heating stirrer, overhead mixer, ultrasonic cleaning machine, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high praise in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt, etc. countries and our customers have been fully affirmation.
Factory Size: 1,000-3,000 square meters
Year Established: 2009
Total Revenue: US$1 Million - US$2.5 Million
Registration No.: 410105000067362
Main Markets: Central America, Mid East, Oceania, Africa, South America
Packaging & Shipping

Packaging:
-After use cartons inside, outside with wooden case packaging;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEx and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.

Shipping method	Note
Express	Door to door, very convenient, don't need to clearance or pick-up
By air	Airport to an airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you.
By sea	Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you.

Pre-sale Service:
--24 Hours online service for your consultation.
--Help choose right model, and a series of services, people, and advice.
--Give you the best offer.
--Provide discount for many sets order.
--Do customer's request.
--Choose payment term you convenient.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
After-sale service:
--1 year warranty service and all life maintenance.
--Technical Engineers are available for overseas training.
--Remote control technical consult.
--Free installation DVD.
--Maintenance plan.

FAQ
1. How many shelves does your oven can hold?
Different models hold different numbers of shelves 1~5. That will be according to the models.
2. What is your max temperature?
Max 250 or 300ºC, depending on models.
3. What kind of size do you have?
The chamber capacity is 40L, 72L, and 151L, and another size, the biggest is 960L.
4. Can you make 110V versions?
Yes, we can make it.
5. How is your oven heated?
Electric heating.
6. Could you make the temperature show in Fahrenheit?
Yes, we can make it
