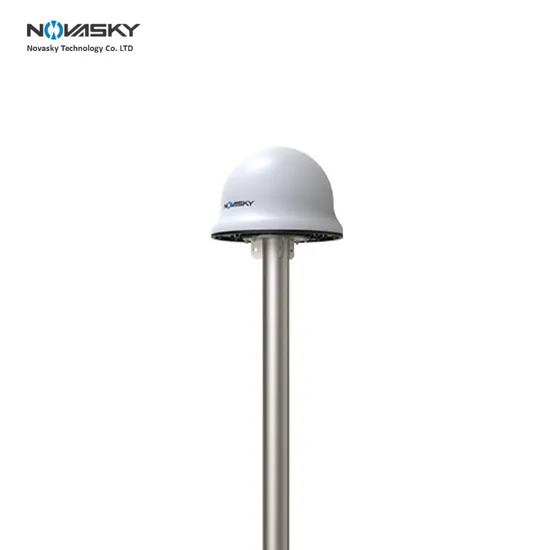

Novasky G1000 Launch Frequency Glonass/GPS Novasky Omnidirectional Spoofing/Decoy Device Navigation Deception GPS Spoofer for Anti Drone System

Product Description

Company Profile

NovaSky Technology Co.,Ltd. was established in 2006. The company focuses on electromagnetic detection, sensing and control technology, and provides product and system integration services for anti-terrorism, search & rescue, high-end security and automotive safety. At present, the company has subsidiaries in Beijing and Shanghai, and R & D centers in Changsha, Chengdu and Xi'an. Novasky is rewarded as national high-tech and "double-soft" certification enterprise. Product Description

The active defense system integrates the functions of radio detection and spoofer to realize detection and decoy countermeasures. The detection unit of the active defense system detects and identifies the uplink and downlink remote control signals and data image transmission signals of the UAV, so as to realize the intrusion warning of the UAV. In the meantime, the spoofer will be activated to launch simulated pseudolite signal, so that the intrusion UAV will get "lost" and unable to fly according to the predetermined path closing to the protected site.

Features: Detector + Spoofer Design The built-in radio detection module can guide the spoofer to turned on/off. The spoofer will not be activated when there is no drone intrusion, which greatly reduces the impact on the surrounding base stations and other satellite timing equipment; Highly integrated Signal detection, signal simulation generator, transceiver antenna, control board, power supply unit and other functional units are integrated in one cavity, no external connection device; Partition control 360° omnidirectional coverage, and directional control of key areas can also be achieved by configuring directional antennas; Green safety The signal transmission power is at the milliwatt level, and the equivalent omnidirectional transmission power is less than or equal to 10mW, which has minimal impact on personnel and electromagnetic environment; Easy installation and wide application It can be fixed and installed by pole or wall hanging, with regular shape and good concealment.

Specification:
Detector
Detection system	Radio passive detection
Detection Signal	UAV digital transmission signal, UAV remote control signal, WiFi system UAV signal
Types of detection drones	Most conventional consumer UAVs, some unconventional UAVs, some fixed-wing UAVs, and some racing Drone
Detecting Frequency Range	800MHz~1500MHz,2.4G,5.8G
Detection Direction	360°
Detection radius	≥3km(open environment, UAV transmit power 0.1W)
Receive sensitivity	-110dBm(25kHz)
Response Time	≤3S
False alarm rate	≤5 pieces/day (24H) (typical urban environment)
Direction finding accuracy	≤5°((root mean square)
Spoofer
Signal type	Generate GPS-L1, GLONASS-L1, GALILEO-E1 navigation signals in real time
Action distance	500~1000m adjustable
Action orientation	360(without obstacle)
Working Frequency band	1575.42MHz±1.023MH,1602.0MHz+N*562.5kHz±511kHz(N-7-6)
Function	Drive away, force landing
Equivalent isotropic radiated power	≤10mW
Frequency tolerance	≤±2×10-6
Occupy bandwidth	Not larger than the navigation band bandwidth
Spurious emissions	≤-36dBm(30MHz-1000MHz);≤-30dBm(1GHz-18GHz)
Time synchronization accuracy	<1μs
Effective Time	<10s
Set up time	≤5min
Other
Dimension	φ430mm×330mm(H)
Weight	≤15Kg
Communication Interface	Ethernet (100M/1000M network), 4G/5G communication
Power Supply	AC220V±10%,50Hz,Power consumption:≤50W
Operating temperature	-40ºC~+70ºC
Lightning protection	Level3
Explosion-proof	Ex d IIC T6 Gb
Protection class	IP65

Certifications

Our Exhibition
Test Equipment
After Sales Service
FAQ

1 Q:Do you have any discount?
A:Yes, if you buy large QTY, please send us a email, we will give you a big discount.

2 Q:What's the delivery time?
A:According to the specification and quantity of your order, generally 7-10 days for normal
standard products within 50pcs.

3 Q:Do you have overseas distributor?
A:Yes,we have distributors in Korea, Singapore, Malaysia, UK and so on.

4 Q:Can we use our logo on the products?
A:Yes.We can provide OEM and sign a licensing agreement.

5 Q:Are you manufacturer or trading company?
A:We are manufacturer with 15 years of experience.Welcome to visit our company.

6 Q:Do you have any certification?
A:Yes,according to the different products,overpass CE, RoHS, ISO, Ex,Ul etc,we can offer certificates.

7 Q:How the stability of products?
A:3~5 years is ok in normal situation.

8 Q:What's the means of transport?
A:Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
