High Quality Minimum Turning Radius 3.5 Electric Three-Wheeled Garbage Truck

Product Description

Product Description

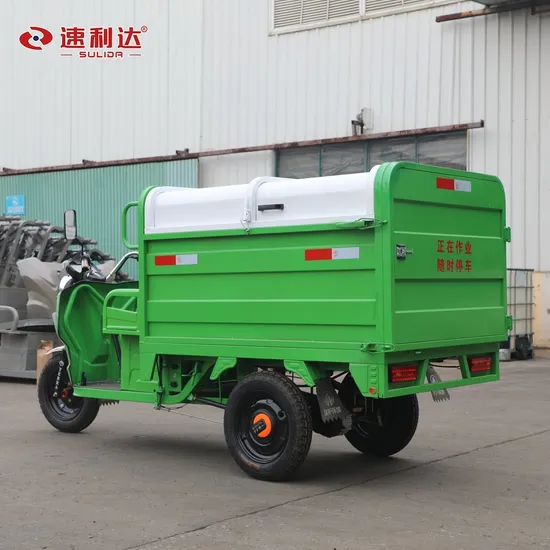

ELECTRIC THREE-WHEEL SANITATION VEHICLE
These vehicles are designed for efficient waste collection and disposal and are typically used in urban areas with narrow streets. They typically feature a compact design, reduced noise pollution, and lower emissions than traditional diesel-powered vehicles. On SULIDA, you can find a wide range of electric three-wheeled sanitation vehicles, including specifications, prices, and technical details. You can filter search results based on factors such as brand, model, and features to find the option that best suits your needs.Customizable Color Options, The product offers a wide range of color options to cater to different customer preferences, ensuring that the vehicle matches the brand's identity and aesthetic requirements.Product Parameters

ELECTRIC THREE-WHEEL SANITATION VEHICLE SPECIFICATION
Product Name	Electric Three-Wheel Sanitation Vehicle
Keywords	Electric Three-Wheeled Cleaning Vehicle
Rated Crow	1
Overall Dimensions	2760*1000*1340Mm±30Mm
Cabinet Size	1500*1000*900Mm
Axis Pitch	1830Mm±10Mm
Wheel Pitch	790±10Mm
Minimum Ground Clearance	180Mm±10Mm
Minimum Turning Radius	3.5M
Maximum Gradeability	15°
Maximum Speed	25 Km/H
Curb Weight	200KG
Rated Load	≤400KG
Endurance Mileage	≥50Km
Charging Time	6--8 Hours
Hopper Volume	1000L
Motor	48V800W High Magnetic Steel Brushless Differential Motor
Control Circuit	48V18 Tube Brushless Controller
Battery	48V45Ah Maintenance-Free Battery
Charger	Portable Intelligent Automatic Charger
Lights And Signals	LED Headlights, Left And Right Turn Signals, Brake Lights, Running Lights, Instruments, Electric Horns, Reversing Horns, Work Warning Lights, Etc
Carframe	Solid Welded Frame + Acid-Washed Electrophoretic Paint
Power Transmission	Rear-Drive With Forward And Reverse Gears
Steering	Tap Handle Steering Mechanism
Suspension	Front Suspension: Heavy Double Barrel Hydraulic Front Shock Absorber
Rear Axle	Integrated Rear Axle
Braking	Foot Mechanical Connecting Rod Drum Rear Wheel Brake + Manual Mechanical Parking Brake
Tire	F:3.75-12 R:3.75-12
Locomotive	Crown Locomotive
Instrument Panel	Injection Molding Instrument Panel, Power Lock, Meter, Combination Switch
Seat	Leather Soft Seat + Leather Soft Back
Simple Shed	Plastic Shed Or Iron Shed (Optional)
Oil Varnish	Premium Automotive Paint
Gearbox Casing	With High-Strength Steel, The Top Lid Is Opened Upward To Put Garbage, And The Rear Tail Can Be Fully Opened. The Design Of The Rear Hatch Makes The Garbage Dumping Operation More Reasonable. Carriage Size: 1.5*1*1M
We Support Customization Of Various Colors And Styles

Detailed Photos
COMFORT
Electric three-wheel garbage collection tricycles with comfortable seating, adequate suspension, and adjustable handlebars offer better experience and efficiency for longer collection routes.WEATHER RESISTANCE
Some models of electric three-wheel garbage collection tricycles are designed to be weatherproof. They have waterproof bags and covers. These features protect the collected waste from harsh weather conditions.STORAGE SPACE
The collection tricycle's design, including its cargo bed or storage area, should facilitate efficient waste collection and sorting. For example, compartments for recyclables can help organize the collected waste.SAFETY FEATURES
Consider electric three-wheel garbage collection tricycles with safety features like reflective strips, side mirrors, and a sturdy frame. These features protect the rider and extend the vehicle's lifespan in crowded areas.ENVIRONMENTALLY FRIENDLY SOLUTION
The electric garbage collection tricycle is an eco-friendly alternative to traditional fossil fuel-powered vehicles, reducing carbon emissions and promoting a sustainable environment, as requested by environmentally conscious customers.FAQ
Q1. Where is your sales market?
Our products are exported to Europe, Africa, South America, the Middle East, Southeast Asia, and other countries and regions.
Q2.Can I have my own customized products?
Sure, we are happy to customize the logo, design, packing carton logo, language manual, and other requirements for you.
Q3.What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4.Do you test all your goods before delivery?
Yes, we have 100% test before delivery
Q5.How do you make our business long-term and good relationship?
We keep good quality and competitive prices to ensure our customers benefit
