CNC High Speed Metal Hole Drilling Milling Tapping Machine for Power Plant Pressure Vessel Plate Fabrication Industry

Product Description

CNC High Speed Metal Hole Drilling Milling Tapping Machine for Power Plant Pressure Vessel Plate Fabrication Industry
MACHINE APPLICATION

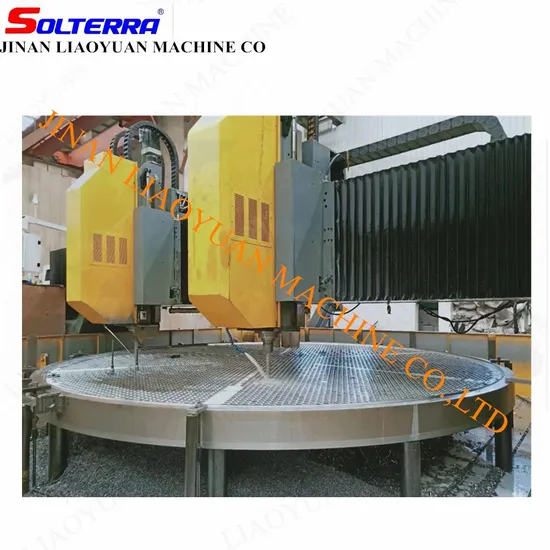

1.Engineered specifically for the meticulous drilling processing of tube plates, clapboards, and flanges, this machine is an indispensable asset in the petrochemical, boiler, and wind power flange industries. It also excels in creating joint plates for construction, bridges, and iron towers, among other applications.
2. Boasting unparalleled efficiency and unwavering working accuracy, this machine is designed for ease of operation and consistent, high-performance results.
MACHINE FEATURES
1. Our machine bed boasts dual heavy-load linear roller guide pairs, ensuring unparalleled stability and precision on both sides.
2. The cross beam of the gantry is fitted with two advanced movable slides, enhancing versatility and operational efficiency.
3.Our machine comes integrated with a state-of-the-art hydraulic system, facilitating seamless hydraulic balance for the vertical ram and efficient hydraulic cutter release for the spindle.
4.Featuring the renowned FAGOR8055 CNC system from Spain, it is equipped with an RS232 interface and a modern LCD screen for user-friendly operation.
5.It incorporates a chain-plate type automatic chip conveyor and a chip collection trolley, ensuring effortless and efficient chip management.
6. We select key machinery, hydraulic pressure, and electric components from esteemed brands both domestically and internationally.
TECHNICAL PARAMETERS

Max. size of workpiece (mm)	Max. hole distance L×W (mm)	4000x1600mm
	Max. thickness(mm)	200
Worktable	Width/distance of T groove(mm)	28/500
Drilling spindle	Quantity	1
	Spindle taper	BT50
	Max. diameter of drilling(mm)	Φ40 (carbide drill) Φ50(high speed twist drill)
	Rotation speed(conver, stepless)(r/min)	30~3000
	Motor power of spindles(kW)	18.5kW
Chip removal and cooling	Type of chip-conveyor	Chain-plate type
	Quantity of chip-conveyor	1
Overall dimension	L×W×H (mm)	4900x3900x3200
Weight of machine(kgs)		Appr. 13200

PACKAGES AND DELIVERY

LIAOYUAN CO' SERVICE

Pre-Sales Service After-Sales Service * Premium Inquiry and Consulting SupportInquiry and consulting support. * Comprehensive Training on Machine Installation
* 24/7 Multichannel Support via Phone, Email, and In-Person * Extensive Training on Machine Operation
* Exclusive Factory Tours * Ongoing Customer Engagement and Support
* Comprehensive Electrical & Mechanical Technical Assistance * Dedicated Follow-up and Uninterrupted Communication
* Efficient Parts Ordering Service * Expert Engineers Ready for Overseas Machinery Serviceoverseas.
LIAOYUAN COMPANY PROFILE

JINAN LIAOYUAN MACHINE COMPANY INFORMATION Jinan Liaoyuan Machine Co., located in the bustling city of Jinan, Shandong province, China, stands as a global leader in the realm of CNC machine tools. For over two decades, Jinan Liaoyuan has been synonymous with top-notch quality, transforming from a modest startup into a preeminent supplier in Shandong's CNC machine industry. Specializing in the research, development, and production of an extensive array of CNC machines, our product line includes CNC Angle Steel Punching Machines, CNC Angle Steel Drilling Machines, CNC Plate Drilling Cutting Machines, CNC Beam Drilling Marking Beveling Machines, CNC Band Saw Cutting Machines, and various CNC Machine Centers. Jinan Liaoyuan Machine Co. is dedicated to providing comprehensive turnkey solutions and exceptional services to meet all your production needs.
JINAN LIAOYUANCNC HISTORY * Founding Period (1991-2008)
* Continuous Growth (2008-2013)
* Innovation Expansion (2013-2017)
* JINAN LIAOYUAN MACHINE Today
The machines manufactured by JINAN LIAOYUAN are indispensable across various sectors, ranging from steel structure and angle towers to metal construction, piping, pressure vessels, shipbuilding, bridge construction, wind-energy, and heat exchanger industries. Our machines are versatile enough to cater to numerous other specialized fields, ensuring broad applicability and unmatched performance.
