CNC Automatic Metal Pipe Cutter Tube Steel Saw Sawing Knife Cutting Machine

Product Description

Pipe Cutting Machine

Aluminum Extrusion Cutting Machine

Saw Cutting Machine

Turning Rotary Cutting Machine

Laser Cutting Machine

Circular Sawing Machine

Saw Blade

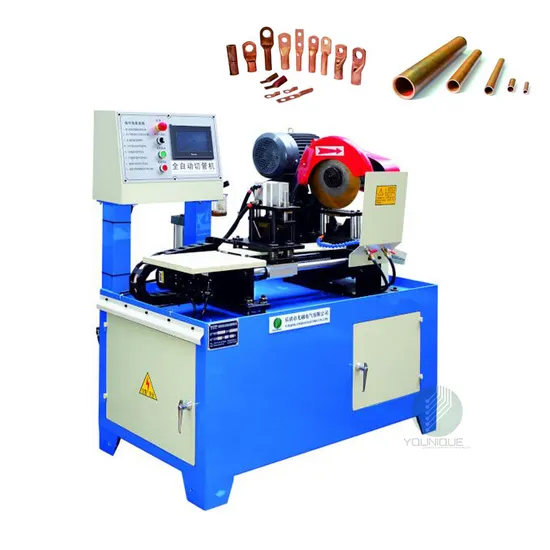

Product Description Equipped with PLC computer control, the YE-Q2 automatic tube cutting machine adopts servo motor automatic feeding. Various configuration possibilities allow cutting lengths from 5mm to 6m for a variety of applications.
Metal automatic tube cutting machine is widely used in fitness equipment, construction machinery, household manufacturing, and other industries. In different applications of various shapes of pipe, higher requirements are put forward for cutting metal pipe.
Machinery main circuit is controlled by imported PLC computer, the operation is simple, sensitive, and convenient maintenance. Automatic feeding adopts a servo motor, precision screw, and linear bearing, which cutting precision is ±03mm. The counter can set the processing times, when the processing is finished it automatically stops. The counter can accumulate a day's work. When the processing size changes, just change the size in the text display to work, without manual positioning or hardware positioning. Technical Parameters

Performance		Specifications
Cutting capacity	round bar	∅60mm
	square bar	50*50mm
	round pipe	∅120mm
	L-shape bar	115*115mm
	square pipe	110*110mm
	rectangle bar	110*50mm
Feed length	5mm-6m no manual positioning/servo motor
Blade speeds	stepless adjustment
Host motor	3.7kw,2.2kw consequent-poles double-speed
Saw	HSS ∅250-400mm(10″-16")standard ∅350
Clamping vise	single
Max. clamping capacity	150mm
Cylinder feeding travel	650/single time,1300/double-time,1950/three-time
Hydraulic motor	3HP
Servo motor feeding travel	uninterrupted
Servo motor feeding travel	1KW
Operation pressure	25-35KG/CM2
Standard configuration	Cooling system, oil hydraulic system, adjustment, adjustment tool
Machine dimensions	2200*1400*2200mm
Total weight	1450kg

Main Application

Packaging & Shipping
Company Profile Professional and Expert Automatic Machine Supplier
--To create high efficient electric solution.
•WENZHOU UNIQUE ELECTRIC CO.,LTD, formerly known as YUEQING UNIQUE ELECTRIC CO.,LTD. Which is specialized in manufacturing, marketing and R&D of automatic terminal lug assemble machine, terminal stamping mould, SC type copper lug automation equipment, copper aluminum terminal lug production equipment, wire crimping machine, wire terminal & connector, high& low voltage electric appliance and so on.
•The product is widely used in electronic and electric, information communication, automobile electronic, safety production, space and aviation, petrochemical industry and building industry ,. Etc. The qualification of most product has met the technical and quality standard of Germany, UK,, The U.S., other developed countries.
Our Core Values
More than 16 years of manufacturing experience and 13 years of overseas marketing development. We do not only supply you with custom automatic machines but also give you a solved solution for electronic and electric site.
Be your "professional, safe and reliable" long-term supplier.
•Working in a mutually respectful relationship means that unique electric shows an understanding of the needs of the clients and strives to meet those needs.
•Serving each client with honesty and integrity means that regardless of our position on a situation, you will know that we are committed to working transparently, allowing us to build a strong, long-term relationship.
•With a relationship based on trust and transparency, you benefit from straightforward communication at all steps of your project without needing to fear surprises, hidden costs or delays.
Certification and Exhibition

FAQ
Q: How to choose the pipe/tube cutting machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
-Wall Thickness Range
- The Pipe Material
- Cutting Angle
-Cutting Length
- Tube Original Length
Q: What delivery time for standard machine?
A: Within 35 working days after received advanced payment.
Q: What about your machine warranty?
A: One year warranty after machine reached customer's workshop.And will responsible for lifetime maintenance
Q: What about delivery terms and payment terms?
A: Delivery terms: 50% deposit, 50% paid before shipment.FOB Ningbo, ClF your portPayment Terms: T/T, L/C
Q: How about your service?
A: Before Sales Serive:
1. We will confirm the right model according to the offered pipe inforamtion.
2.Welcome to visit our factory and workshop before you place an order.
After Sales Service:
1. We provide manual,detailed machine installation,commissioning video for operate machine.
2.We provide free installation,commissioning and training at our factory.
If you need enginer go to your factory for machine training, air tickets,food,hotel, local transportation, engineer's salary should be at your account.
3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.
