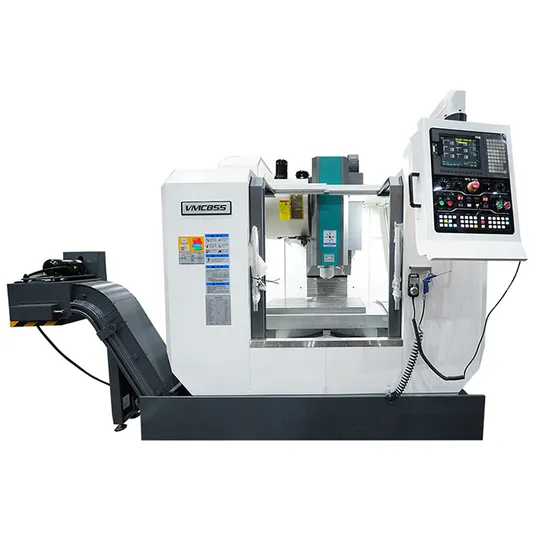

0.01mm Precision Vmc855 Fast Tool Change Efficiency High Performance Vertical Machining Center 3 Axis Machine
Basic Info.
Model NO.
VMC855
Type
Vertical Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Table Size
1000X550mm
T-Slot (Width-No.-Distance)
18-5-90mm
Max.Table Load
500mm
X-Axis Travel
800mm
Y-Axis Travel
550mm
Z-Axis Travel
550mm
Spindle Taper
Bt40
Spindle Motor Power
11/15kw
Tool Magazine Type
Arm Type
Max.Tool Length
300mm
Machine Overall Size
2550*2300*2700mm
Max.Tool Weight
8kg
Tool Change Time(T-T)
1.55s
Rapid Feed Speed(X/Y/Z)
30000/30000/24000mm/Min
Cutting Feed Speed(X/Y/Z)
1-10000/1-10000/1-10000mm/Min
Transport Package
Wood Package/Wood Frame
Specification
5000kg
Trademark
Lunyee
Origin
China
Production Capacity
200 Sets/Month
Packaging & Delivery
Package Size
255.00cm * 230.00cm * 270.00cm
Package Gross Weight
5000.000kg
Product Description
0.01mm Precision Vmc855 Fast Tool Change Efficiency High Performance Vertical Machining Center 3 Axis MachineDetailed Photos
Product Parameters
| Main specifications | unit | VMC855 |
| Table size | mm | 1000X550 |
| T-slot (width-No.-Distance) | mm | 18-5-90 |
| Max.table load | kg | 500 |
| X-axis travel | mm | 800 |
| Y-axis travel | mm | 550 |
| Z-axis travel | mm | 550 |
| Distance from spinde nose to table surface | mm | 150-700 |
| Distance from spindle axis to column surface | mm | 590 |
| Spindle taper | -- | BT40 |
| Max.spindle speed | rpm | 8000 |
| Spindle motor power | kW | 11/15 |
| Max.torque of spindle | N.m | 52.5/95.5 |
| Tool magazine type | Arm type | |
| Tool magazine capacity | pcs | 24 |
| Max diameter of tool(full/Empty) | mm | Ф78/Ф120 |
| Max.tool length | mm | 300 |
| Max.tool weight | kg | 8 |
| Tool change time(T-T) | s | 1.55 |
| Rapid feed speed(X/Y/Z) | mm/min | 30000/30000/24000 |
| Cutting feed speed(X/Y/Z) | mm/min | 1-10000/1-10000/1-10000 |
| Positioning accuracy(X/Y/Z) | mm | ±0.005/300 JIS |
| Repeat positioning acouracy(X/Y/Z) | mm | ±0.003 JIS |
| Total power capacity | KVA | 25 |
| Machine weight | kg | 5000 |
| Machine overall size | mm | 2550*2300*2700 |
Product Feature
Applications
Company Profile
FAQ
Q: Are you trading company or manufacturer?
A: We are the manufacturer for 15 years in China.
Q:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production→cargo ready → balance/delivery → further cooperation.
Q: Did you test all the goods before they were shipped?
A: Yes, we test every product before delivery, the quality can be fully guaranteed.
Q:Do you accept product customization?
A:Yes, we will try our best to meet your requirements.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
Q: Is your price competitive?
A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
If you have another question, please feel free to contact us.
