Industrial Super Powerful AlNiCo Magnet

Product Description

AlNiCo magnet, including cast AlNiCo and sintered AlNiCo, have the vast rang of complex shapes and sizes at economical cost. They are slao ideal for high temperature applications up to 500 º C.
1. Features:
Vast range of complex shapes and sizes;
Economical cost;
Ideal for high temperature application up to 550 ° C.
2. Applications: Automobile parts, sensors, magnetic chucks, guitar pickup, audio apparatus, electronic motors, educational equipment and aerospace equipments, etc.

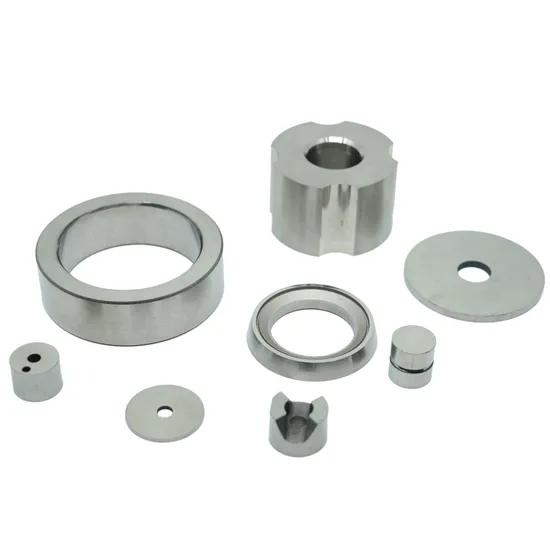

3. Shape: Disc, Ring, Block, Segment, Cylinder, U shape, Customized Design.
4. Size: Customized size per your requirements.
5. Certification: ISO9001: 2008, ISO/TS16949: 2009 and RoHS.
Our advantages
A: Over 10 years in manufacturing magnets and over 4 years as a gold supplier on ******
B: As a supplier of Siemens Ltd Australia, GM, BMW, BENTLEY, and REGAL BELOIT in European, we are very experienced in control quality, solve problems and select magnet materials.
C: The price will be more competive as we have our own factory.
D: We have many grade materials in our stock to help you to let the lead time shorter.
About us:
Hangzhou SDM Magnetics Co., Ltd. is one of the professional manufacturers of permanent magnets in China. With an experienced team, SDM is specialized in producing various kinds of permanent magnets, including Sintered & Bonded NdFeB, Cast & Sintered AlNiCo, Sintered SmCo Magnets and relevant Magnetic Assemblies such as pump couplings and holding devices.
In order to satisfy our customer's needs, SDM focuses on quality control with continuous improvements on all manufacturing processes and provides the most competitive prices based on domestic resources. Customized magnets are always available here.
After effective marketing, our products are provided to customers such as GM, BMW, BENTLEY, Siemens and REGAL BELOIT in European, North and South America and Asia-Pacific markets. Our magnets are widely used in magnetic motors, automotive instruments, medical equipments, wind-power generation, aerospace and military industries.
We are located in Hangzhou, near to the Shanghai air port and harbor. Traffic is convenient. We wish new and old friends from all walks of life to contact us for future business relationships and mutual success!
FAQ
1: How long will you give me the reply?
We will contact you in 12 hours as soon as we can.
2: Could I get samples?
Yes, we have materials in stock to help you to get the samples as soon as we can.
3: How about the quality of the magnets?
We have the certification of ISO, TS and ROSH, we could send the certification test of our company to you.
4: How is the price?
As we believe the quality is the most important, we will provide the best quality magnet we can with reasonable price.
5: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, you can tell us and we will try our best to satisfy you.
6: Could I visit your factory?
Of course, if you need we will help you to visit our factory.
7: If I have paid, when will you help me to produce?
When we have received the money in our account, we will give you the receipt and arrange to produce immediately.

/ Cast AlNiCo Magnet
Grade											MMPA Equivalent
	Residual Induction (Br)		Coercive Force (Hcb)		Max Energy Product (BH)max		Temp. Coefficient Tk		Curie Temp.	Max Working Temp.
	mT	Gs	kA/m	Oe	kJ/m³	MGOe	%/ºC(Br)	%/ºC(Hcj)	ºC	ºC
LN10	600	6000	40	500	10	1.2	-0.02	-0.03	810	450	ALNICO 3
LNG12	700	7000	44	550	12	1.5	-0.02	-0.03	810	450	ALNICO 2
LNG13	680	6800	48	600	13	1.63	-0.02	-0.03	810	450	ALNICO 2
LNG18	900	9000	48	600	18	2.25	-0.02	-0.03	850	450	ALNICO 4
LNG37	1200	12000	48	600	37	4.63	-0.02	-0.03	860	525	ALNICO 5
LNG40	1250	12500	48	600	40	5	-0.02	-0.03	860	525
LNG44	1250	12500	52	650	44	5.5	-0.02	-0.03	860	525
LNG52	1300	13000	56	700	52	6.5	-0.02	-0.03	860	525	ALNICO 5DG
LNG60	1330	13300	60	750	60	7.5	-0.02	-0.03	860	525	ALNICO 5-7
LNGT18	580	5800	90	1130	18	2.25	-0.02	-0.03	860	550
LNGT28	1000	10000	58	720	28	3.5	-0.02	-0.03	860	525	ALNICO 6
LNGT32	800	8000	100	1250	32	4	-0.02	-0.03	860	550	ALNICO 8
LNGT38	800	8000	110	1380	38	4.75	-0.02	-0.03	860	550
LNGT44	850	8500	120	1500	44	5.5	-0.02	-0.03	860	550
LNGT48	900	9000	120	1500	48	6	-0.02	-0.03	860	550
LNGT60	950	9500	110	1380	60	7.5	-0.02	-0.03	860	550
LNGT72	1050	10500	112	1400	72	9	-0.02	-0.03	860	550	ALNICO 9
LNGT88	1100	11000	115	1450	88	11	-0.02	-0.03	860	550
LNGT36J	700	7000	140	1750	36	4.5	-0.02	-0.03	860	550	ALNICO 8HC
*.
*The above-mentioned data of magnetic properties and physical properties are given at room temperature.
*\.
*The max working temperature of magnet is changeable due to length-diameter ratio, coating thickness and another environment factors.

/ Sintered AlNiCo Magnet
Grade											MMPA Equivalent
	Residual Induction (Br)		Coercive Force (Hcb)		Max Energy Product (BH)max		Temp. Coefficient Tk		Curie Temp.	Max Working Temp.
	mT	Gs	kA/m	Oe	kJ/m³	MGOe	%/ºC(Br)	%/ºC(Hcj)	ºC	ºC
FLN8	500	5000	40	500	9	1.13	-0.02	-0.03	760	450	ALNICO 3
FLNG12	700	7000	48	600	12.4	1.55	-0.02	-0.03	810	450	ALNICO 2
FLNGT18	600	6000	90	1130	18	2.2	-0.02	-0.03	860	450
FLNG34	1200	12000	48	600	34	4.25	-0.02	-0.03	890	450	ALNICO 5
FLNG37	1250	12500	48	600	37	4.63	-0.02	-0.03	890	450
FLNGT28	1050	10500	60	600	28	3.5	-0.02	-0.03	850	450	ALNICO 6
FLNGT38	800	8000	120	1500	38	4.75	-0.02	-0.03	850	450	ALNICO 8
FLNGT42	880	8800	120	1500	42	5.25	-0.02	-0.03	820	450
FLNGT36J	700	7000	140	1750	33	4.13	-0.02	-0.03	850	450	ALNICO 8HC
*.
*The above-mentioned data of magnetic properties and physical properties are given at room temperature.
*\.
*The max working temperature of magnet is changeable due to length-diameter ratio, coating thickness and another environment factors.
