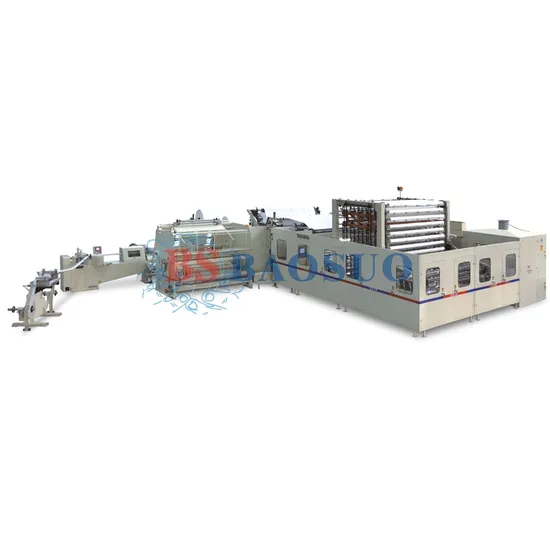

Direct Manufacturer Low Price YD-PL400C Tissue/Toilet Paper Making Machine

Product Description

Direct Manufacturer Low Price YD-PL400C Tissue/Toilet Paper Making Machine
Min. Order: 1
Payment term: T/T
Delivery time: 2 ~ 6
Shipping port: Foshan
Product description:

REWINDING SYSTEM
Design speed	450 m/min
With core speed	350 m/min
Coreless speed	300 m/min
Jumbo roll width	1750 ~ 3600 mm
Jumbo roll diameter	≤φ2000 (To be order)
Jumbo roll core size	φ76.2 mm (Other sizes are available)
Finished log diameter	φ70 ~ φ135mm
Core size	φ35 ~ φ50 mm
Perforation	4 pieces spiral upper perforated
Rewinding way	Non-stop
Parameter set-up	HMI
Control system	PLC, Inverter, integration of mechanics, electrics and photos
Web tension system	Encoder, PLC, Inverter
Machine speed	400 m/min
Backstand	1 ~ 3 Ply (To be confirmed by client, independent drive)
Option
Embossing unit	Steel to rubber, point to point / nested / DECO embossing lamination system
Edge embossing unit	Steel to steel
Printing unit	1 ~ 2 colors (Customers provides pattern)

ACCUMULATOR
Log diameter	φ70 ~ φ135 mm
Storage	160 logs (Other size to be specified)
Speed	25 logs/min

LS200-4L LOG SAW
Log convey	Adopt servo motor system control pusher log location
Design Speed	160 cuts/min
Number of line	2 ~ 4 lines
Grinding wheel system	Pneumatic sharpen, the sharper parameter can be adjust in touch panel
Cutting mistake	±1 mm
Clamp size	Φ70 ~ 135 mm (The standard size is Φ110 mm)
Dust suction system	The unit can suction dust for grinding wheel
Cooling system	Adopt the compressed air for cooling the grinding knife

Brief Introduction: Integrated with core and coreless rewinding, applied rewinding for several invention patents; Stable production speed: up to 350 m/min for rolls with core, 250 m/min for coreless; Complete warning system and powerful integrated control system, supports remote terminal connection and detection; Straight in machine web cutting, precise log diameter control system is accurate and easy operating; Patented vacuum suction technology for coreless roll rewinding to secure rewinding quality and production stability; Flexible and easy handling independent motor drive for each function unit; Rear doctor blade for web cutting and core gluing, perfect match product with embossing lamination; Equipped with edge embossing unit, 60 embossing wheel for regular web width; Applicable to various web tensions of different jumbo roll grades; PLC, large screen HMI, opto-mechatronics control technology, automatic web break detection, and accurate signal feedback. About us
Brand Number of Employees Annual sales Established in

BAOSUO

501-1000 People

More than US$50 Million

1989

Baosuo Enterprise., established in 1989, is a well-known corporation which specializes in machinery for tissue. We uphold the business strategy of basing on domestic market and going global, which helps to lay the foundation for building our global well-known brand. Our products include tissue making machines, tissue converting machines, tissue packing machines and electric intelligent systems. We are dedicated to providing the best tissue production turnkey solution and first-class service from design, manufacturing to installation.
Factory Exhibition Activities 1.The World Tissue Exhibition
2.Tissue World São Paulo
3.The 26th International Paper Industry Exhibition
FAQ 1.I am new in this business, what kind of information I need for start the project? Production requirement in details, such as products type, capacity, material size and so on.
2.I wan to produce toilet roll and kitchen towel, which machine is proper for me? We have different models based on capacity and specification, please provide us the detailed requirement, or get in contact with sales representatives for quotation.
3.What is the price of the machine? Machine price is based on confirmed machine model and specification, our sales representative will guide you the proper machine for you requirement, and offer quotation accordingly.
4.How can I get in contact with the sales representatives? Please contact with us via email, or leave message on website, our sales representatives will follow on your order on time.
5.How can I install the machine? We offer online installation instruction, or send technician for guiding installation and operation training based on requirement.
6.What about the after sale service and spare parts supply? Our after sales team will support your with on time suggestion and origin spare parts supply.
7.What is the guarantee time of the machine? Machine guarantee for one year after the acceptance.
