Germany Bafa Keymark Certified a+++ R290 Monoblock Inverter Air Water House Heating Cooling Heat Pump

Product Description

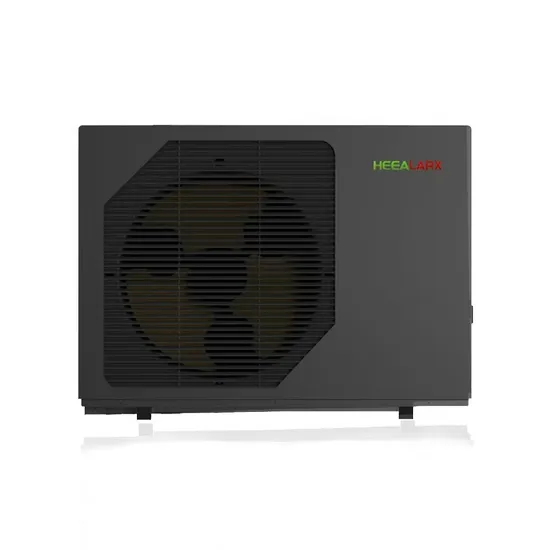

HEEALARX R290 heating Cooling DHW monoblock air to water heat pump is an integrated system that provides space heating and cooling as well as domestic hot water, offering a complete, all-year-round solution that can remove the need for traditional gas or oil boilers, or work together with them. It is wide used for commercial, Industrial, residential, etc.
Specification For R290 Propane Inverter Air to Water Heating Cooling Heat Pump

Model	/	VS90-DCR1	VS120-DCR1	VS150-DCR1	VS150-DCR	VS180-DCR1	VS180-DCR	VS220-DCR1	VS220-DCR
Power Supply	/	220V-240V~/50Hz	220V-240V~/50Hz	220V-240V~/50Hz	380V-400V~/3N/50Hz	220V-240V~/50Hz	380V-400V~/3N/50Hz	220V-240V~/50Hz	380V-400V~/3N/50Hz
Heating Condition-Ambient Temp.(DB/WB): 7/6ºC, Water Temp.(In/Out): 30/35ºC
Heating Capacity Range	kW	2.8~8.0	4.0~11.0	5.5~14.0	5.5~14.0	7.0~17.0	7.0~17.0	8.0~20.0	8.0~20.0
Heating Power Input Range	kW	0.56~2.20	0.80~3.01	1.10~3.84	1.10~3.84	1.40~4.66	1.40~4.66	1.60~5.48	1.60~5.48
COP	kW/kW	5.00~3.64	5.00~3.65	5.00~3.65	5.00~3.65	5.00~3.65	5.00~3.65	5.00~3.65	5.00~3.65
Heating Condition-Ambient Temp.(DB/WB): 7/6ºC, Water Temp.(In/Out): 50/55ºC
Heating Capacity Range	kW	2.6~7.2	3.8~10.3	5.4~13.3	5.4~13.3	6.5~16.1	6.5~16.1	8.3~19.1	8.3~19.1
Heating Power Input Range	kW	0.81~2.53	1.17~3.55	1.70~4.70	1.70~4.70	2.06~5.75	2.06~5.75	2.61~6.70	2.61~6.70
COP	kW/kW	3.20~2.85	3.26~2.90	3.18~2.83	3.18~2.83	3.15~2.80	3.15~2.80	3.18~2.85	3.18~2.85
Cooling Condition-Ambient Temp.(DB/WB): 35/24ºC, Water Temp.(In/Out): 12/7ºC
Cooling Capacity Range	kW	2.0~6.0	3.0~8.0	4.5~10.5	4.5~10.5	5.5~13.0	5.5~13.0	6.0~15.0	6.0~15.0
Cooling Power Input Range	kW	0.65~2.73	0.97~3.64	1.45~4.77	1.45~4.77	1.77~5.90	1.77~5.90	1.94~6.82	1.94~6.82
COP	kW/kW	3.08~2.20	3.09~2.20	3.10~2.20	3.10~2.20	3.10~2.20	3.10~2.20	3.09~2.20	3.09~2.20
Hot Water Condition-Ambient Temp.(DB/WB): 20/15ºC, Water Temp.From 15ºC to 55ºC
Hot Water Capacity	kW	4.5~10.0	5.5~14.0	6.0~17.0	6.0~17.0	6.5~20.0	6.5~20.0	8.0~25.0	8.0~25.0
Hot Water Power Input	kW	0.94~2.41	1.16~3.37	1.28~4.07	1.28~4.07	1.36~4.88	1.36~4.88	1.70~6.02	1.70~6.02
Hot Water Current Input Range	A	4.3~10.9	5.3~15.3	5.8~18.5	2.3~7.4	6.2~22.2	2.5~8.9	7.7~27.4	3.1~10.9
Max. Power Input	kW	3.3	4.5	5.5	5.5	6.5	6.5	7.5	7.5
Max. Current lnput	A	15.0	20.5	25.0	10.0	29.5	11.8	34.1	13.6
ErP Level (35ºC)	/	A+++	A+++	A+++	A+++	A+++	A+++	A+++	A+++
ErP Level (55ºC)	/	A++	A++	A++	A++	A++	A++	A++	A++
Water Flow	m³/h	1.38	1.89	2.41	2.41	2.92	2.92	3.44	3.44
Refrigerant	/	R290	R290	R290	R290	R290	R290	R290	R290
Proper Input	kg	0.50	0.70	0.85	0.85	1.00	1.00	1.20	1.20
CO2,Equivalent	Tom	0.0015	0.0021	0.0026	0.0026	0.0030	0.0030	0.0036	0.0036
Sound Power Level	dB(A)	57	58	60	60	62	62	64	64
Operating Ambient Temperature	ºC	-25~43
Max. Water Temperature	ºC	75
Compressor Brand	/	GMCC
Water Side Heat Exchanger	/	Plate type
Water Side Heat Exchanger Brand	/	A-L-FA LA-VAL
Water Pressure Drop (max)	kPa	25	30	26	26	30	30	30	30
Fan Motor Type	/	DC Moter
Fan Quantity	/	1	1	1	1	1	1	2	2
Water Connection	inch	G1"	G1"	G1"	G1"	G1"	G1"	G1"	G1"
Circulation Pump	brand	SHIMGE / AWMT
Circulation Pump Water Head	m	12 / 9 / 12.5	12 / 9 / 12.5	12 / 9 / 12.5	12 / 9 / 12.5	12 / 9 / 12.5	12 / 9 / 12.5	12 / 9 / 12.5	12 / 9 / 12.5
Cabinet Type	/	Galvanized sheet
Unit Dimension(L/W/H)	mm	1167×407×795	1167×407×795	1280×458×935	1280×458×935	1280×458×935	1280×458×935	1250×540×1330	1250×540×1330
Shipping Dimensions(L/W/H)	mm	1300×485×930	1300×485×930	1457×534×1090	1457×534×1090	1457×534×1090	1457×534×1090	1380×570×1480	1380×570×1480
Net/Gross weight	kg	95/110	100/115	140/158	140/158	145/163	145/163	165/185	165/185
The above data is for reference only; specific data is subject to the product nameplate.

Key Features of HEEALARX R290 Propane Heat Pump

- Environmental friendly refrigerant R290
- A+++/A+++ high efficiency 75ºC hot water
- Highly (Hitachi) DC inverter compressor
- Built-in water pump
-A-L-FA LA-VAL Plate heat exchanger
- Low noise to 38dB
- 4"5"TFT-LCD controller
- Free WIFI intelligent control
- DTU remote tracking module
- S.P.D deforsting in 2 min.
Advantages
HEEALARX R290 heating Cooling DHW monoblock air to water heat pump can meet different requirments of hot water, heating and cooling, has full range functions.
Certificate
HEEALARX R290 heating Cooling DHW heat pump is very popular in Europe and has passed almost all certificates like CE, ErP, Keymark, SG ready, BAFA, MCS. HEEALARX R290 heat pump is eligible for Europe incentives.
Packing
HEEALARX R290 heat pumps are packed with fine woode pallet and filmed when LCL and nice carton when FCL.
Production Capability
HEEALARX has established professional manufacturing line for R290 propane inverter heat pumps and also professional testing lab for
R290 heat pumps with monthly production capacity of 5000-6000pcs.
HEEALARX INDUSTRY LIMITED is international professional manufacturer for full inverter air to water heating cooling heat pump with new natural gas of R290, providing house heating, cooling and sanitary hot water supply. All products manufacturered are in compliance with EN14511 standard and has got ERP A+++ and CE certified.
