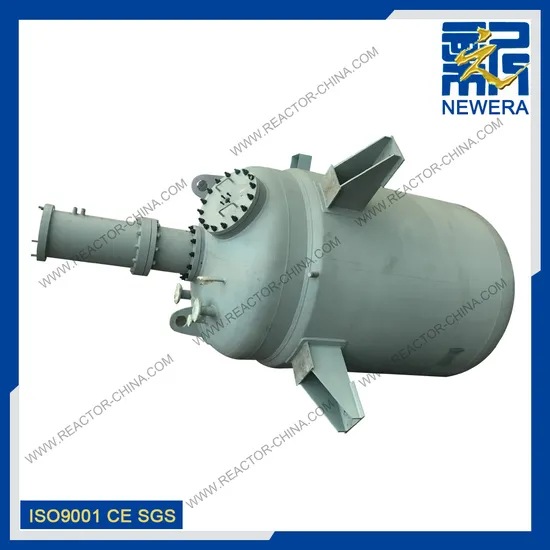

500L Pressure Autoclave Chemical Reactor
| US$10,000.00-50,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
CJF
Function
Reaction Pressure Vessel
Application
Mixture
Material
Stainless Steel
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Condition
New
Name
High Pressure Reactor
Transport Package
Standard Exported Packagee
Specification
CJF
Trademark
NEWERA
Origin
China
HS Code
8419899090
Production Capacity
700 Sets Per Year
Product Description
Product Description500L Pressure Autoclave Chemical Reactor
| NO. | Item | Technical parameters |
| 1 | Nominal volume | 0.1L~100m3 |
| 2 | Material | Reactor body: 0Cr18Ni9(304),00Cr17Ni14Mo2(316L),1Cr18Ni9Ti(321),Titanium(TA2),Nickel, Tantalum, Zirconium, Hastelloy C-276 C22 or lined PTFE. |
| 3 | Design pressure | -0.1~45MPa |
| 4 | Design temperature | 600ºC |
| 5 | Mixing speed | 0~1000r/min |
| 6 | Motor power | as design |
| 7 | Heating power | as design |
| 8 | Motor connecting type | Vertical drive or lateral pull |
| 9 | Heating type | Electrical heating,electromagnetic heating,microwave heating,heat conduction oil heating, steam circulation heating |
| 10 | Opening ports on the reactor kettle | Gas phase port with needle valve, liquid phase port with needle valve and dip pipe, solid feed inlet with plug, temperature measurement and control with platinum resistance, pressure gauge safety blasting with pressure gauge and safety explosion-proof device, reactor cooling coil inlet and outlet with tap. |
| 11 | Mixing type | Paddle type, anchor type, impeller type, or choose other types according the reaction condition. |
| 12 | Mixing shaft | Adopt self-lubricating wear-resisting bushings, suitable for various media agitation. |
| 13 | Seal type | Magnetic seal, mechanical seal, packing seal |
| 14 | Discharging type | Upward discharging or downward discharging |
| 15 | PID Control box | Temperature display and control, control accuracy±1ºC; mixing speed display and stepless speed, heating power control and keep automatic constant temperature. |
| 16 | Other configurations | Customized design and manufacture, according to different requirements on the kettle cover, reactor body, inner mixing paddles or add additional devices(Such as condensation reflux device, constant pressure feed tank, receiving device, condenser, etc.) |
