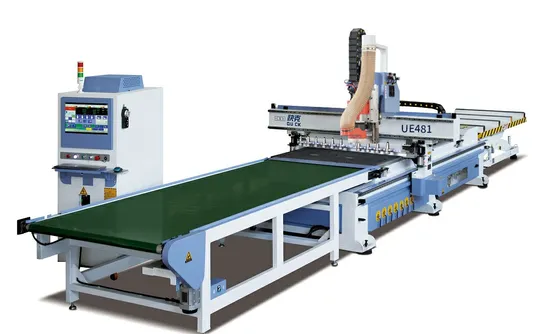

CNC Router 1325 2030 Atc CNC Nesting Machine Wooden Door Carving Woodworking Machinery with Loading and Unloading

Product Description

Product Description
1. Working principle of automatic loading and unloading cnc router machine
Automatic loading and unloading cutting machine is an intelligent wood processing equipment that can automatically load and unload wood and cut wood. Workers only need to set the relevant parameters, and the machine can automatically complete the entire processing process.
2. Convenience of automatic loading and unloading cutting machine
1). Improve production efficiency
Compared with the traditional manual cutting method, the automatic loading and unloading cutting machine does not require human intervention and can complete the cutting operation faster and more accurately, thereby improving production efficiency.
2). Reduce costs
The use of automatic loading and unloading cutting machine can reduce dependence on labor, thereby reducing manual operation costs. In addition, the machine can also take advantage of the maximum utilization of raw materials to further reduce production costs.
3). Reduce the risk of manual operation
Manual cutting is prone to improper operation, resulting in personal injury or wood waste. The automatic loading and unloading cutting machine can avoid these risks and improve the safety and sustainability of work.
4). Suitable for large-scale production
The automatic loading and unloading cnc router is suitable for large-scale production and can complete large-scale cutting work in a short time, creating more value for the enterprise.
Detailed Photos

Working Area	XYZ axis	1220*2440*200mm
Height	Z axis	200mm
Working Table		Vacuum (6 section)
vacuum pump		7.5kw
Move System	XYZ axis	XY:rack Z: ball screw
		TAIWAN guide
		Servo motor
Control System	CNC system	NC stduio
USB	Memory	8G
Inverter	11kw	Fulling
	Interface	USB
Accuracy	Moving	±0.005/300mm
	Repeat	±0.005mm
	DPI	0.002mm
Speed	Max.Moving Speed	60m/min
	Max.Engraving Speed	20m/min
Spindle	Power	9KW air cooling
	Rotary speed	0-24000rpm
	Collet	ER32
Power supply	AV	220V/50HZ 380/50HZ
Lubrication System	Thin oil lubrication	Automatic
Package	Weight	2000kgs
	Dimension	2200*3900*2100mm
Working environment	Temperature	+5ºC to +35ºC

Spare parts
Spindle 9kw air cooling
24000rpm
Imported bearings with good quality, long working life Application: Milling,Engraving,Drilling
Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.

12 pcs linear tool changers
linear type with too holder and tool chank
fast changing speed ,under the gantry

Liner guide way 20mm
Precision N class liner guide way with precision less then 0.02mm The liner guide way has middle preloading design,features of high precision and stability may prolong liner guide way.

Vacuum table
A vacuum table top, routed into the standard Phenolic Top will hold your work pieces in place by the air pressure exerted by a vacuum pump. A vacuum pump eliminates the need for clamping your work piece to the table top and can be a time‐saver if your work requires a constant parade of work piece changes throughout the day.
Nc studio controller with wireless handwheel
machine does not need to return to the machine origin
Support drive and spindle error alarm function
Large storage space,fast reading speed and reliable processing. Support intelligent file checking function.
Parameter backup and restore function to prevent the loss of important parameters.
High anti-jamming intensity passes many CE tests.
Application
Sign and graphics fabrication 3 dimensional (3D) machining (sign, plastics, wood, molds, etc.)
Cabinet making Furniture, general woodworking manufacturing
Store fixture, display manufacturing Sheet plastic fabrication
Solid surface machining Non-ferrous sheet metal machining (aluminium, brass,copper, zinc)
Composite machining (graphite, phenolic, Kevlar, etc.)
Sample photos
Packaging & Shipping

Company Profile
Quick CNC was founded in 2006 ,We are one of the best CNC router suppliers in China. Our products are selling well widely all over the world and have good reputations. Our products can meet different requirements from different customers. With the advanced technology, our experienced engineers can also customize according to detailed needs.
Jinan Quick-Fulltek CNC Machinery Co.,Ltd.specializes in R&D and production of various cnc equipment,such as 3 axis cnc, ATC cnc,automatic load and unload cnc,4 axis,5 axis, PTP, panel furniture cnc. All series machines are with one-year warranty. Meanwhile, customized equipment are available according to different requirements.
Facing the chances and challenges of Global Economic integration as well as being offered with opportunities Knowledge Economy Era,we are determined to achieve our dreams step by step with the advantages of high technology. We aim to be a professional,branding and international suppliers for woodworking industrial solutions.

Our service
1)One year for the whole machine without consumable parts.
2)We will provide the consumable parts at an agency price..
3)24hours online service, free technical support by whatsapp/wechat/call/emails.
4)Machine has been adjusted before delivery,operation disk is included in the delivery,if there is any other questions,please kindly contact us.
5)We have manual instruction and CD (Guiding videos) for software installation ,operation and machines using maintenance.
6)Engineers are avaliable to service machinery overseas.
Special services
(1)If customer have a specific request ,we can according to the clients parameters to customized machine .such as working area,optional accessories ,OME services.
(2)We are Made in China Trade Assurance Supplier.Place orders online ,get full protection under MIC third party guarantees.
Our customers
FAQ
Q: Are you factory or trading company?
A: We are professional factory specialize in CNC equipment for over 13 years.
Q: What's your MOQ? What's your delivery term?
A: Our MOQ is 1 set machine, we usually require 20-30 days for manufacturing, 1 day for packaging.
The exact time will be depended on your order quantity and customized level.
Q: What's your payment term?
A: We normally accept T/T and L/C at sight, other fast payment way is also accepted if the amount is smalll, like
Western union, Mastercard and cash etc.
Q: Whats your warranty time ? What you can supply to us after we bought your machine?
A: We give customer 1 year quality warranty. In case any accident in customer's factory, we will give permanent technic support and spare parts supplying.
