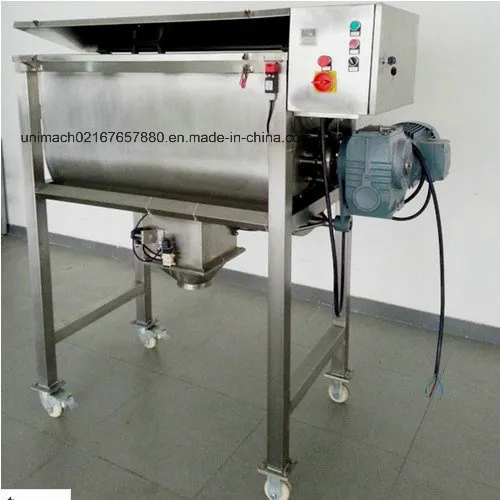

Multifunctional Horizontal Dry Powder Mixer
| US$11,800.00-22,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
WLDH1000
Application Area
Pharmaceutical
Certification
CE, ISO
Condition
New
Control System
Button Control
Cooling Method
Air Cooling
Heating Method
Electric Heating
Main Material
Stainless Steel
Mixing Capacity
1000L & Above
Safety Features
Anti-Slip Feet, Overload Protection, Safety Lock
Speed Control
Single Speed
Speed Range
< 30 R/min
Stirring Type
Diving
Temperature Control
With Cooling System
Working
Shear Mixer
Dimension
1640*940*1800
Mixer Type
Double Ribbon Mixer
Layout Type
Horizontal
Operating Type
Continuous Operating
Name
Dry Powder Mixer
Transport Package
Packed in Export Wooden Case
Specification
1640*940*1800
Trademark
SUPM
Origin
China
Production Capacity
500 Sets/Year
Packaging & Delivery
Package Size
1.30cm * 0.68cm * 1.40cm
Package Gross Weight
300.000kg
Product Description
Multifunctional Horizontal Dry Powder MixerThe horizontal Mixer is a new type, high efficient mixing equipment, it is widely used for food and chemical industry. It is used for mixing kinds of powder together, this model can mix powder evenly at a high efficient.
Characteristics:
1. Horizontal tube body, dual screw between inner & outer the special structure, running stably, high quality, low noise, long work life, easy installation, multiple functions.
2. With guard net and lip
3. Made of stainless steel.
4. For different mixing requirements, use different screw structure, rapidly & thoroughly mixing.
5. With a split window in the body for cleaning
Optional:
The top cover of the U Shape tank has the entrance for material. It can be also designed with spray or add liquid device according the customer's needs.
This mixer also can be designed with the function to keep cold or heat. Add one layer outside the tank and put into medium into the interlayer to get the mixing material cold or heat. Usually use water for cool and hot steam or use electrical for heat
| Model | WLDH200 | WLDH300 | WLDH500 | WLDH1000 | WLDH1500 |
| Effective Volume | 200L | 300L | 500L | 1000L | 1500L |
| Volume | 280L | 420L | 710L | 1420L | 1800L |
| Time | 0-30mins | 0-30mins | 0-30mins | 0-30mins | 0-30mins |
| Overall Size(mm) | 1300x685x1400 | 1400x780x1530 | 1640x940x1800 | 1960x1130x2050 | 2480x1340x1850 |
| Total Power | 4KW | 5.5KW | 7.5KW | 11KW | 15kw |
| Power Supply | 3 phase 208-415v 50-60HZ | 3 phase 208-415v 50-60HZ | 3 phase 208-415v 50-60HZ | 3 phase 208-415v 50-60HZ | 3 Phase 208-415v 50-60HZ |
