Waste PP/PE Film Crushing Washing Drying Recycling Line
| US$39,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
MQX
Material Processed
Film
Plastic Type
PE
Screw
Single-Screw
Automation
Automation
Computerized
Computerized
Certification
ISO9001:2008, CE
Waste Product
Waste Film or Bottle Flake
Belt Conveyor
4m
Crusher
PC1200 Strong Crusher
Crusher Type
with Water
Fricatin Washer
High Speed
Drying
Cetrifigul Dewatering Machine
Drying Pipe
Stainless Steel Making
Motor
Xi′an Xima
Inverter
ABB
Contactor
Delixi
Transport Package
Sea Worth Packing
Specification
500kg/h
Trademark
chenxing
Origin
China
HS Code
8477800000
Production Capacity
300sets/Year
Product Description
waste film washing machineProduct Description
Futures:
1. This waste plastic film washing machine is an ideal recycling system for PP/PE material, We have been a professional manufacturer of plastic recycling machines in China for many years. PE,PP Film Washing Line is also called PE, PP film crushing, washing,dewatering and drying line. We can supply production line with capacity from 300kg/h to 2000kg/h. The complete line includes crushing, floating washing, friction washing, dewatering and drying.
2. This waste plastic film washing machine is widely used in recycling plastic films like agriculture film, bags, PP woven bags and so on. With complete film washing line, clients can make dry,clean film scraps from waste material. The whole film recycling line could be "L" or "U" shape according clients' workshop.
3. The brief working flow of PE PP film washing line is: belt conveyer → crusher → friction washer → float washer → dewaterer → dryer → silo. If the film is very dirty, some clients may add hot washer for this PE film recycling line.
Product Parameters
Specifications
| 200-300Kg/h | 300-400Kg/hr | 400-500Kg/hr | 600-800Kg/h | |
| Model and name | Power(KW) | Power(KW) | Power(KW) | Power(KW) |
| Belt conveyer | 1.1 | 1.1 | 1.5 | 1.5 |
| Crusher | 22 | 37 | 55 | 75 |
| Spiral conveyer | 1.5 | 2.2 | 3 | 3 |
| High speed friction washing | 11+0.75 | 15+0.75 | 15+0.75 | 18.5+0.75 |
| Washing conveyer | 7.5 | 11 | 11 | 15 |
| Floating washer | 1.5+1.1+1.5 | 1.5+1.1+1.5 | 3+1.1+1.5 | 3+2.2+1.5 |
| Spray washer | 1.5+1.5 | 2.2+2.2 | 3+3 | 3+3 |
| Washing conveyer | 11 | 11 | 15 | 15 |
| dewatering | 30 | 37 | 37 | 75 |
| Cyclone storehouse | ||||
| Length of line | 24m | 26m | 26m | 35m |
Major machine
| Machine List | Function |

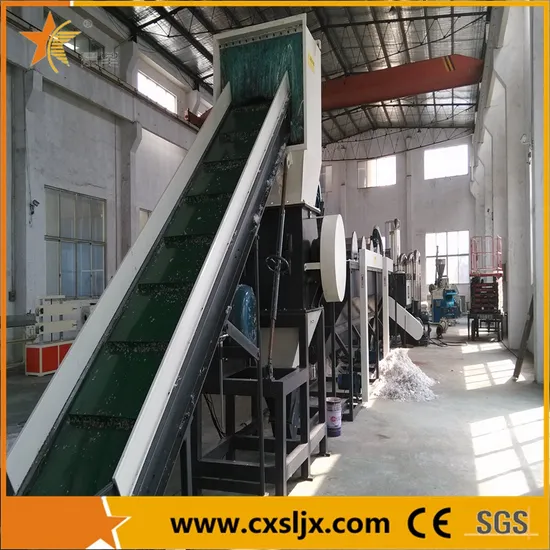

| Belt conveyor | Convey waste plastic into crusher |
| Crusher | With water,will cut waste plastic into small pieces |
| Screw feeder | Convey small pieces |
| High speed friction washer | Scrubbing material in high speed with water |
| Floating separator washer | Separate PP PE and PET,dirty according to specific density |
| Dewatering machine | High speed centrifuge drying |
| Pipeline dryer | Electric heating wind drying |
| Storage silo | Store the final material |
