Plastic HDPE PP PC 150ml Bottle Automatic Extrusion Blow Moulding Machine Powerjet
Basic Info.
Model NO.
EB10
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Certification
CE, ISO9001:2008
Clamping Force (Kn)
27
Output (Kg/H)
30 Kg/H
Accumulator Capacity(L)
75 L
Die Head Heating Power(Kw)
8.5 Kw
Screw Heating Power(Kw)
8.5 Kw
Screw L/D Ratio
22
Extruder Motor Power(Kw)
11 Kw
Max. Product Volume
1L
Voltage
380V/3p/50Hz
Screw Diameter (mm)
50 mm
Power (Kw)
8.5
Air Pressure(MPa)
0.8 MPa
Trademark
POWERJET
Origin
Guangdong, China
Product Description

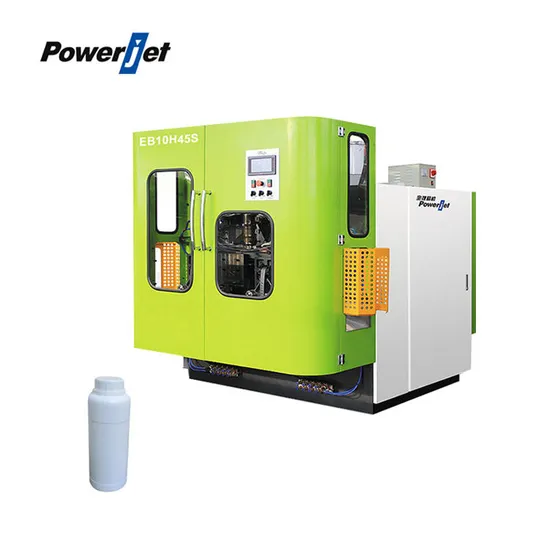

Products DescriptionH SERIES HIGH-SPEED DOUBLE STATION EXTRUSION BLOW MOLDING MACHINE EB10H
Powerjet Double Station Extrusion Blow Molding Machine EB10H is specialized for
manufacturing bottles and containers which under 1L.
Max Bottle Capacity - 1(L)
Clamping Force - 27(KN)
Extrusion Weight(HDPE) - 30(kg/hr)
Applications - Wide Range Of Bottles For Daily necessities, toiletries, beverages, water tanks, laundry detergent/shower gel/motor
oil bottles, etc
Product Paramenters
| Model | | EB10H | |
| Max. Product | L | 1 | |
| Clamping Force | KN | 27 | |
| Screw Diameter | mm | 50 | |
| Screw L/D Ratio | L/D | 22 | |
| Screw Rotary Speed | RPM | 75 | |
| Extrusion Weight (HDPE) | kg | 30 | |
| Extrusion Motor Power | KW | 11 | |
| Pump Motor Power | KW | 5.5 | |
| Heating Capacity | KW | 8.5 | |
| Operation Pressure | Mpa | 0.6~0.8 | |
| Air Consumption | m3/min | 1 | |
| Cooling Water Consumption(25°c) | L/min | 13 | |
| Machine Dimensions (LXWXH) | mm | 2200*2000*2200 | |
| Machine Weight | kg | 38000 | |
