Two Chuck Lathe Pipe Thread Machine

Two Chuck Lathe Pipe Thread Machine

US$76,000.00 1 Set (MOQ)

Basic Info.

Model NO.
Q1325X3M
Type
Horizontal Lathe
Processing Accessory
Manual
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Condition
New
Center Distance
3m
Use
Oilfield
Mainly Aim
Machining Thread
Machining Material
Metal and Other
Transport Package
Pallet
Specification
3m
Origin
Dezhou
HS Code
8458110090
Production Capacity
3000

Product Description

Q1325 CNC pipe thread lathe
Product Parameters
SPECIFICATION OF LATHE MACHINE
ITEMS UNIT Q1325 pipe threading Lathe
Capacity Swing over bed mm 800
Swing over cross slide mm 480
Distance between centers mm 3000
Pipe threading range mm 50-250
Guideway width mm 600
Max. load capacity T 4
Spindle Spindle bore mm 255
Spindle speed steps - VF. 4 steps
Spindle speed range rpm 25-350
Chuck mm φ630 4-jaw manual
Turret Turret/tool post - Manual 4 position
Tool shank size mm 32 x 32
Carriage X axis travel mm 420
Z axis travel mm 2750
X axis feed grade/range mm/r 32/0.0475-0.72
Z axis feed grade/range mm/r 32/0.095-1.44
Lead screw pitch in 1/2″
Z axis rapid traverse mm/min 4000
Metric thread grade/range mm 22/1-15
Inch thread grade/range T.P.I 26/14-1
Tailstock Tailstock quill diameter mm Φ120
Tailstock quill taper - MT6
Tailstock quill travel mm 250
Motors Main spindle motor kW 15
Rapid traverse motor kW 1.1
Coolant pump motor kW 0.125
Accuracy Turning accuracy standard -- IT6-IT7
Turning roundness mm ≤0.01
Turning cylindricity mm 0.030/300
Turning flatness mm 0.025/Φ300
Turning roughness μm Ra 1.6-Ra 3.2
Machine Dimension Width x Height mm 1700 x 1600
Length mm 5600
Weight Net weight T 7.8
Voltage 380V 50HZ

Q1325x3000mm
Configuration :
Front φ630 4-jaw manual chuck 1set; Rear φ630 4-jaw manual chuck 1set
Lighting lamp; Coolant pump; Pad iron; Anchor bolts; Taper bar device; Dead centre MT6;
Protective cover(toolpost); Tool box (Wrench etc.)
φ630 3-jaw manual chuck 2set with connect plate
pay term
Shipped per: BY SHIP
Payment Terms: 30% down payment T/T before order, and 70% TT before exfactory.
Price Terms: FOB Qingdao, china
Delivery Time:Eighty days since received down payment within a week at PI date
Warrenty period of main machines: One years, free part within one year if normal use.

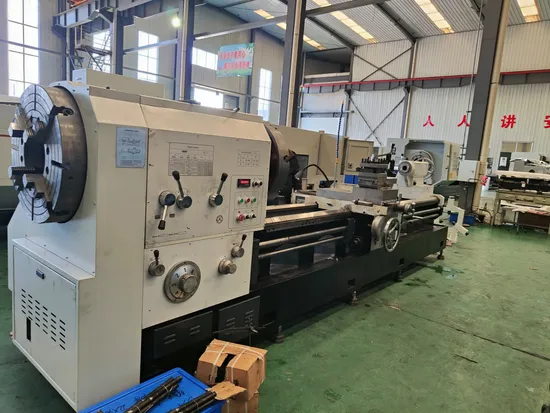

Detailed Photos
