High/Medium Voltage Cable Single Core 3 Core Cu/XLPE/Cts/PVC Shield Power Cable

Product Description

Product Description 11kV 15kV 20kV 33kV 35kv Medium Voltage single core 3 core Copper Aluminum Conductor XLPE Insulated Armoured electrical Power Cable 1 Product Standard This product is manufactured according to GB/T12706.2, equivalent to IEC60502.2. Or BS, DIN, ICEA standard as customer request. 2 Application The product is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6/6kv~26/35kv. 3 Operating characteristics - Rated power-frepuency voltage U0/U: 3.6/6kv~26/35kv. - Max.admissible operating temperature of the conductor:90ºC. - Max. short-circurt temperature of conductor shall not exceed 250ºC. (5s maximum duration) - The ambient temperature under installation should not below 0ºC. - The bending radius of a single-core cable should not less than 20 times of the cable diameter. The bending radius of a multi-core cable should not less than 15 times of the cable diameter. 4 Table of the voltage, cores and cross-section

Item	Category A ,B	3.6/6kV	6/10kV	8.7/15kV	12/20kV	18/30kV	21/35kV
	Category A ,B	6/6kV	8.7/10kV	12/15kV	18/20kV	-	26/35kV
Single core	mm2	25-1200	25-1200	35-1200	50-1200	50-1200	50-1200
Three core	mm2	25-400	25-400	35-400	50-400	50-400	50-400

The cable with Category A rated voltage is used in the situation requiring not over 1 min. of grounding fault lasting time. For the cable with Category B rated voltage, the grounding fault lasting time normally is not over 1 hour, max. lasting time is not over 8 hours, annual ground fault lasting time altogether should not be over 125 hours, Category C includes all the system expect Category A and B.
5 Type and Name

Type	Designation	Applications
YJV	Copper conductor,XLPE insulated,PVC sheathed power cable	For laying indoors,in tunnel or cable trench,unable to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct.
YJLV	Aluminum conductor,XLPE insulated,PVC sheathed power cable
YJY	Copper conductor, XLPE insulated,PE sheathed power cable
YJLY	Aluminum conductor, XLPE insulated,PE sheathed power cable
YJV22	Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable	For laying indoors,in tunnel in cable trench,or direct in ground,able to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct.
YJLV22	Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable
YJV23	Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable
YJLV23	Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable
YJV32	Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable	For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force.
YJLV32	Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable
YJV33	Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable
YJLV33	Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable

SWA Armoured 3-core cable with XLPE insualtion. Rated voltage 18/30(36)kV 19/33(36)kV Cable Date

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)
50	Compact round	8.4	8.0	0.1	1.8	3.15	3.5	77.3	9333	8390
70	Compact round	10.0	8.0	0.1	1.8	3.15	3.6	80.9	10396	9075
95	Compact round	11.7	8.0	0.1	1.9	3.15	3.7	85.0	11723	9930
120	Compact round	13.1	8.0	0.1	2.0	3.15	3.8	88.4	12986	10720
150	Compact round	14.6	8.0	0.1	2.0	3.15	3.9	91.8	14220	11388
185	Compact round	16.3	8.0	0.1	2.1	3.15	4.0	95.9	15887	12395
240	Compact round	18.5	8.0	0.1	2.2	3.15	4.2	101.2	18144	13613
300	Compact round	20.7	8.0	0.1	2.3	3.15	4.4	107.0	20761	15097
400	Compact round	23.8	8.0	0.1	2.4	3.15	4.6	114.3	24824	17273
500	Compact round	26.6	8.0	0.1	2.5	3.15	4.8	122.2	29019	19580

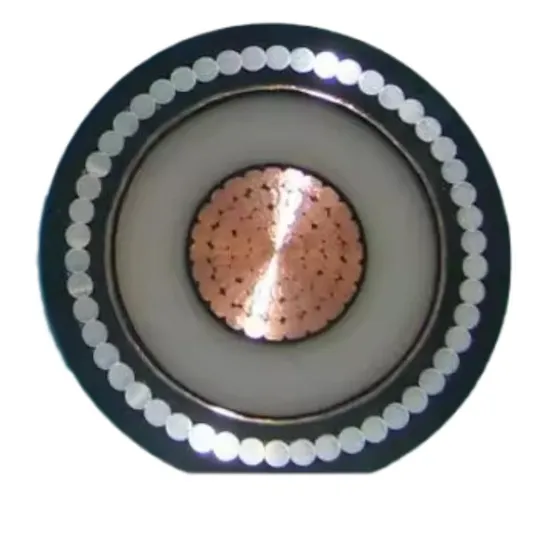

Detailed Photos
