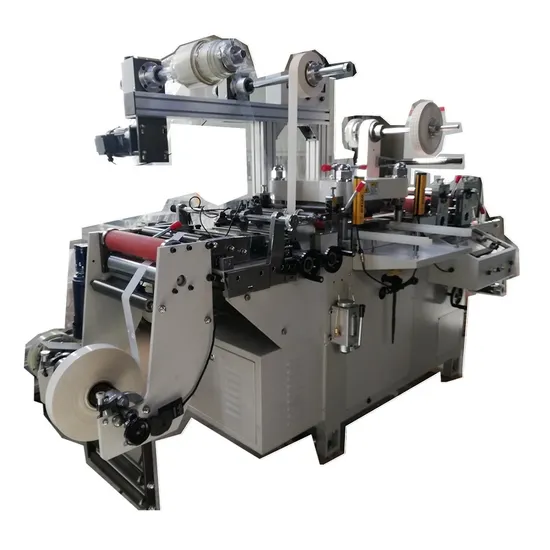

Roll to Roll Roll to Sheet LCD Backlight Film Mylar Flatbed Die Cutting Machine (DP-320B)

Product Description

Product Description
LCD Backlight Film Auto Die Cutting Machine
Functional Characteristics:

The machine body is cast on the whole, and the mahcine enjoys powerfull pressure, stable operation, firm and durable.
It contains an oil gear box which reduces abrasion to the mahcine during the operation, thus prolonging the life span of the machine,
Enhacing the utilization ratio of the machine. Press itinerary and pull the material length are automatically adjusted by screen, make mold-adjustment more convenient
LCD Backlight Film Auto Die Cutting Machine
Scope applicable:
The product is developed aiming at die cutting and forming of various insulating materials such as PVC, film, Mylar, copper oil, aluminum foil, foam, vinyl, polyester etc.
Screen protective film in the electronic industry.
LCD Backlight Film Auto Die Cutting Machine
Model: DP-320B
Max Feeding Width ( mm ): 320
Cutting Area ( mm ): 320*300
Cutting Speed ( T/M): 30-170
Position Accuracy ( mm ): ± 0.1
Power of Main Engine ( kw ): 2.2
Size ( mm ): 2300*1250*1500
Voltage (V ): 220

1, high-precision
A. precision punching pressure up to 0.003mm;
B. go feed precision error ± 0.05mm; sets punch accuracy ± 0.03mm;
C. cumulative thickness of the upper and lower cutter template error 0.02mm
2, large blanking force
The use of German power, large reduction ratio gear motor, blanking force of up to 12 tons
3, high-speed
Host fastest operating rate of 150 beats / minute
4, the high degree of automation
A. regulator system touch screen digital control, with how much money cutter pressure, direct input, convenient;
B. system of high intelligence, the novice deft;
C. high degree of safety, stamping parts of the surface with 3 light curtains, masking screens, automatically shut down or can not boot;
D. Power must press the run button with both hands to prevent misuse.
5. Diversity
A. You can use high knife, low knives, metal molds;
B. Mould standardized installation, adjustment fast;
C. Easy repeatedly punching automatically sets;
D. can be freely combined or split processing lines. Connect to the laminating machine and sheet cutting machine easily
Standard configuration :
unwinder --- die cutting machine --- sheet cutter

Detailed Photos
