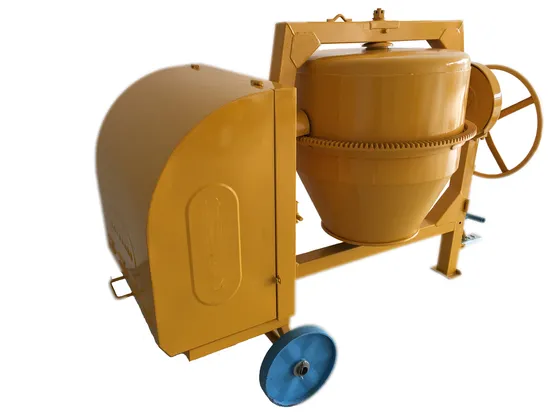

Topall Construction Industrial 350llombardini Low Profile Cement Concrete Mortar Mixer

Product Description

Topall Construction Industrial 350LLombardini Low Profile Cement Concrete Mortar Mixer Topall is a fundamental value: we firmly believe that the use of quality products improves
the working life in terms of safety, efficiency, productive capacity and overall satisfaction.
The satisfaction of our customers results in a solid long-term collaboration, as they see the
equipment of Topall as the machinery that improves the quality of their lives. This is the
philosophy behind our products: "Quality goods for quality life"


Product Description

1. Cast Iron Drum of Heavy Duty Site Mixer
The big differences Drum Oprning Strengthened. Gear and Pinion in Cast Iron, Greasing of all bearing .
the only
model on the Cutten Market with a directional and oscillating supplementary"axle".
This use 2 Cast Iron Wheel or 4 Pneumatic wheels gives better adhesion to the ground/Roads of
Construction Sites.
Features and Benefits
Four Greasing poinrs on all movements: Bottom of Drum,Bearings of pinion shaft of Drum
,Tilting of Drum
Driver belt or Option New Chain Drive system
Power Painting inside drum ,Storage position; Articulated Steering, Direction and Oscillating
supplementary axle
Exhaust extension so gases go out of the engine compartment.
Diesel Engine: Lombardini 15 LD225 or Honda GX160(Option)
Removable axles for ease of transport and handing
Towbar doubles position
Peneumatic tyres
Guard Ventilated on the power driven models Pertol

Model	TDCM350- Lombardini	TDCM400-Lombardini
Capacity of the Drum(L)	350	400
Diameter of Drum(MM)	760	800
Mixing Output(L)	280	330
Dimensions of Mixer L×W×H	2010×1031×1413	2000×1000×1500
Weight(KG)	228	435
Motor	Lombardini 15LD225 Diesel	Lombardini 15LD225 Diesel
Motor Type HP	Single Cylinder	Single Cylinder
Motor Power HP(KW)	4.8(3.5)	4.8(3.5)
RPM	3600	3600

Product Picture




Scan of Factory


Quality Control
Topall concrete mixers with over 15 years of experience in the construction industry. The highest quality and durability of our products combined with a number of competitive advantages that distinguish our company on the market make us the choice of constructors all over the world. QUALITY SYSTEM The Manufacturing Procedures used for all Mixers have been compliant with the Quality Requirements of ISO-9001 since 2005 and have been updated and approved by CQM China since 2009 as compliant to ISO 9001:2008. 3-D MODELLING Since 2009 all Mixers are designed and constantly improved with the use of three-dimensional modeling softwares.
CNC MACHINE CENTER The steel fabrication of the mixer tank is machined with a CNC boring machine to guarantee the perfect alignment and parallelism of the mixing shafts.
ASSEMBLY LINE The Mixers are line assembled giving very short lead times due to the high level of standardisation.
PATENTS The Shafts' Seals as well as other particular features are protected by International Patents..
Packaging & Shipping
Packaging & Shipping



User For
Related Products
Certification
Company Information
TOPALL Company Have Been Founded In 2005, For This Reason TOPALL Started To Produce Engineering and Building Machinery. Now After 10 Years Of Activity TOPALL is Well Known in 5 Countries of European Community, Africa, South America, Meddle East and Far East Exporting 80% of His Production.
In Constant Evolution Towards New Standards Of Quality, We Have Obtained EN ISO 9001:2008 Certification (December 2013)And CE Certification.
The Secret Of This Important Presence Abroad is : Quality, Experience And Very Strong Export Managers. For The Future We Foresee a Big Development of Our Sales in The Meddle East and Africa Countries Because We Produce the Right Machines for The Developement Of These Countries

Our Production Is Articulated As Follows:
Machinery to Produce Concrete: Truck Mixers, Reversing Drum Mixers And Tilting Drum Mixers, Concrete Batching Plant, Mobile Self Loading Mixer Truck, Transit Mixer Truck.,
Machinery to Transport Concrete : Dumpers, Dumpers with Shovel, Wheel Loader ,Skid Loader
Machinery to Product Block: Egg Laying Machine ,Stationary Block Moulding Machine ;Tower Crane, Site Lifter, Building Hoist, Concrete Pump.
Machinery to Work Iron Bars:Steel Bar Cutter; Steel Bar Bender And Compacting Machine
With Large Production Of Different Kind Of Machinery We Are Able to Satisfy All Need of a Modern Contractor.
Our advantage as list:
1.Price is cheap: we manufacture and export flooring by us
2.Quality is good: we control each produce process, we could control quality in good way
3.Timely delivery and Various of Design
4.Service is good: Professional team supply service, all of them know produce and technical and market
