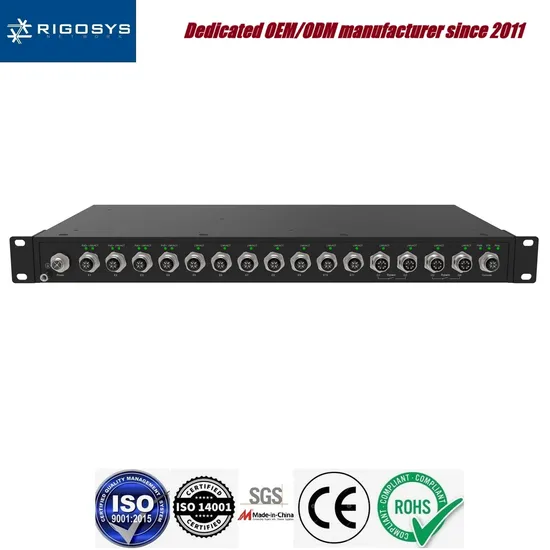

15-Port M12 In-vehicle Managed Industrial Ethernet Switch

Product Description

Product Features

11*100M M12 electrical ports, 4 of which support af/at power supply; 4*1000M M12 ports, supporting Bypass; Support IEEE802.3af&at PoE standard, the maximum output power of the whole machine is 140W ; 10/100/1000Base-TX Ethernet port auto-sensing, full/half duplex, MDI/MDIX auto-sensing mode; Support multiple redundancy protocols such as ERPS / PVTRING / MSTP / RSTP / STP; Supports management functions such as QoS, VLAN, and IGMP Snooping; Support HTTPS/SSL, SSH, user classification, port isolation, IPSG, arp anti-attack and other security technologies; Supports multiple management methods including CLI, Telnet, Web, and network management software based on SNMPv1/v2c/v3; The power supply supports overload protection and reverse connection protection; IP40 protection level, fanless heat dissipation ; Adopt industrial-grade wide-voltage power supply design to meet users' flexible application needs; -40ºC~75ºC operating temperature, meeting industrial application scenarios; Rack mount;

Switch Specifications
Network Interface
Port Description	RI7115P-11T-4GT-4P-M12: Industrial rack-mount managed switch, 11*M12 100M ports, 4 of which support af/at power supply, 4*M12 Gigabit ports, support bypass, wide temperature range -40~+75ºC, single-channel 110 VDC (88 V~160VDC)
Power Supply
Power Input	Low voltage DC power supply: 110V single power supply, wide voltage range 88-160VDC
Power consumption	No load: ≤13W@110VDC Full load: ≤17W@110VDC (non-POE power supply); ≤140W@110VDC (POE power supply)
POE output power	≤ 120W
Protect	Support overload protection, reverse connection protection
POE Features
POE power supply standard	Support IEEE802.3af/at standard POE power supply
Single port output power	15/30W, IEEE802.3af/at
Power supply pin	S-Code Power Supply
Technology
Ethernet Specifications	IEEE 802.3: 10Base-T IEEE 802.3u: 100Base-TX and 100Base-FX IEEE 802.3z: 1000BaseX IEEE 802.3ab: 1000Base-T IEEE 802.3a f: Standard PoE output power 15.4W IEEE 802.3 at: Standard PoE + output power 30W IEEE 802.3x: Flow Control IEEE 802.3ad: LACP (Link Aggregation Control Protocol) IEEE 802.1D: STP (Spanning Tree Protocol) IEEE 802.1p: COS (Class of Service) IEEE 802.1Q: VLAN Tagging IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1AB for LLDP Link Layer Discovery Protocol
MAC address table	8K
Priority Queue	8
Jumbo Frames	9.6 KB ytes
Processing	Store and Forward
Switch Features		Switching delay time: <10μs Switch backplane bandwidth: 56Gbps Number of VLANs: 4094 IGMP multicast groups: 512 Support port speed limit
Safety Features		A CL access control list CPU attack protection ARP Security Configuration IP source attack prevention MAC-based port security mechanism DHCP-Snooping HTTP S / SSH Enhanced Security Protocol RADIUS security authentication Network isolation via VLAN (802.1Q) SNMP v1/v2c/v3 encryption authentication and access control
Software Features		Support IPv4 and IPv6 static unicast routing Support DHCP server/DHCP client Support DHCP snooping Support MSTP/RSTP/STP Support pvtring : switching time < 50ms Support QoS (802.1p/DSCP) traffic priority management Support VLAN (802.1Q) with VLAN tagging Support Q INQ Support IGMP v1/v2 (IGMP snooping) multicast management Support LLDP Support SNMP v1/v2/v3 encryption authentication and access control Support RMON Support ACL Support port isolation Support port speed limit Support port loopback detection Support storm suppression Support port mirroring Support port aggregation (Trunk/LACP) Support port traffic monitoring and traffic statistics Support static MAC binding Support port flow control function Support SNTP network clock Support RTC Support syslog Support TACACS+
Device Management		Support SNMP Support WEB network management (support HTTPS) Support DHCP-client Support user password protection Support command line configuration
Network Redundancy		MSTP/RSTP/STP pvtring ERPS
Warning/monitoring systems		Record and browse events through Syslog reporting Support SNMP to issue event warning notifications through trap
Console control port		M12 A-CODE port, RS-232 control line, 1152 00bps-8-N-1
Mechanical Properties
Dimensions (W x H x D)		440 x44.4 x 230 mm
Shell		Metal
Cooling method		Fanless design, natural heat dissipation
Protection level		IP40
Installation		frame
Weight (g)		≤5KG
Environment
Storage temperature		-40~85 ºC
Operating temperature		-40~75 ºC
Operating humidity		5%~95% no condensation
Certification
EMI		FCC Part 15, CISPR (EN55022) class A
EMS		EN61000-4-2 (ESD) EN61000-4-3 (RS) EN61000-4-4 (EFT) EN61000-4-5 (Surge) EN61000-4-6 (CS)	Contact discharge 6 kV, air discharge 8 Kv 10 V/m, 80MHz~ 1 GHz 1 kV for signal terminal, 2 kV for power input terminal Power input: 2kV (line/ground), 1kV (line/line) 10 V, 150 kHz to 80 MHz
Shock		IEC60068-2-27
Fall		IEC60068-2-32
Shock		IEC60068-2-6
Security Level		EN 62368-1 (LVD)
Warranty Period		5 years

Switch Size

Product Selection
Model		Description
RIS7115P-11T-4GT-4P-M12		Industrial-grade rack-mount managed switch, 11*M12 100M ports, 4 of which support af/at power supply, 4* M12 Gigabit ports support Bypass, wide temperature range -40~+75ºC, single-channel 110 VDC (88 V~160VDC)

Certifications
Production Process
FAQ:
Q: Are you manufacturer or trading company?
A: Manufacturer, and industry network total solution provider.
Q: Do you accept ODM/OEM?
A: Yes. We provide customized expert service.
Q: What is your minimum order quantity?
A: MOQ is 1 unit.
Q: What's the payment type?
A: T/T.
Q: How about shipping time?
A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.
Q: How about after-sales service?
A: 7/24 hours online and respond to user's field device problems in time.
Q: How about the warranty?
A: 5 years.

OEM/ODM or more requirements, welcome to contact us.
