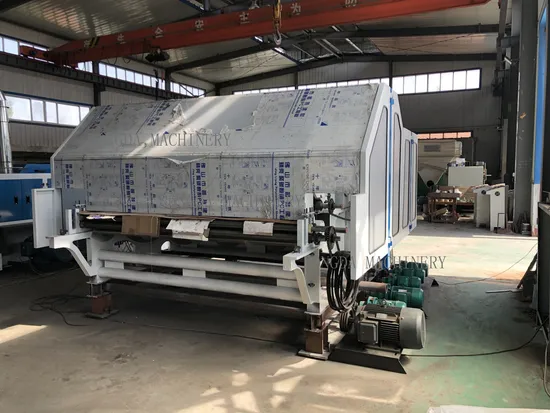

Carding Machine for Non Woven Needle Punching Machine Line

Product Description

Fiber machines / carding fiber products / non woven wadding production line
Main technical indicators of Production line
1: Working width:2200-4600mm
2: Products: Low melting point fiber non-woven fabrics
3:Suitable fiber: Cotton fiber, chemical fiber, such as PET, PP specification: 1.5 ~ 15 d length of 31 ~ 65 mm polyester staple fiber and ES low melting point fiber, glass fiber, aramid fiber, etc.
4: Product specifications: 50~ 1500 g / m2 (3 layers)
Usage and Features of Carding machine
Carding machine is mainly used in Non-woven production line and cannot work alone.They can convent the fleeciness textile fiber into Acupuncture cotton,high-density and high-spring such as Thermal insulation blanket,Greenhouses quilt raw materials,Shoes materials,Mattresses,Sofa cushion,Car mats,Chemical products and Non-woven fabrics for engineering etc,through Carding process,Spreading process,Acupuncture process,Strengthening process.
-Suitable fiber: chemical fiber, such as PET, PP specification: 1.5 ~ 6 d length of 31 ~ 51 mm polyester staple fiber and ES low melting point fiber, glass fiber, aramid fiber, etc
Related Products:
Machine list,

NO.	Machine	Model	UNIT	Q'TY	REMARKS
1	Electric bale opener	Follow up production requirements to match production width	SET	2-3	Electronic weighing through photoelectric sensor to achieve precise control
2	Pre-opener	Follow up production requirements to match production width	SET	1	Pre opener--nail plate cylinder
3	Main-opener	Follow up production requirements to match production width	SET	1	With a simple Condenser
4	Feeding machine (Hopper machine)	Follow up production requirements to match production width	SET	1	With the feeding box
5	Carding machine	Follow up production requirements to match production width	SET	1	single-cylinder, double doffer/Double-cylinder, double doffer
6	Cross Lapper	Follow up production requirements to match production width	SET	1	Fold the fiber layer that from carding machine to reach the thickness of desired and send to needle punching machine
7	Drying oven	Follow up production requirements to match production width	SET	1	/
8	Cutting Machine	Follow up production requirements to match production width	SET	1	1:Machine body is made of high quality carbon steel plate and profiles 2: The three electric fly knife and four cylinder cut knife can be used interchangeably

Our Company:
Gaomi Rongda Machinery Co.,Ltd. Was established in 1999,Located in Gaomi,Shandong province,which is near to Qingdao sea port,super geographic location for transportation.
We company has been engaged in the field of textile waste recycling and processing of mechanical processing and manufacturing.Mainly produce Textile waste recycling machinery line,which include opening machine and cleaning machine,Textile waste cutting machine,Baling machine,Nov woven Fabric Making Machine,Needle punching machine,Quilting machine and Spare parts.
