20L Heater and Hotplate Thermostatic Digital Magnetic Stirrer Magnetic Induction Stirrer
| US$390.00-440.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MS-H-PROt magnetic stirrer 20L
Application Area
Chemical
Certification
CE, ISO, GOST, SONCAP, CCC, API, CE, ISO
Condition
New
Mixing Drum Shape
Disc
Stirring Type
Diving
Warranty
One-Year
Working
High Speed Mixer
Customized
Customized
Structure
Desktop
Material
Stainless Steel
Type
Hot Plate
Work Plate Dimension
135mm(5 Inch)
Work Plate Material
Stainless Steel Cover with Ceramic
Motor Type
Brushless DC Motor
Motor Rating Input
18W
Motor Rating Output
10W
Power
550W
Heating Output
500W
Max. Stirring Quantity[H2O]
20L
Stirring Positions
1
Max. Magnetic Bar[Length]
80mm
Speed Range
100-1500rpm
Heating Temperature Range
Room Temp.-340degree
Over Temperature Protection
420degree
External Temperature Sensor
PT1000
Mixer Type
Agitator
Layout Type
Horizontal
Operating type
Continuous Operating
Transport Package
Hard Carton Packing
Specification
20L
Trademark
TOPTION
Origin
China
HS Code
8479820090
Production Capacity
30000PCS/Year
Product Description
Product Description20L Magnetic Stirrer With Heating 340 Degree Centigrade, Timer Function

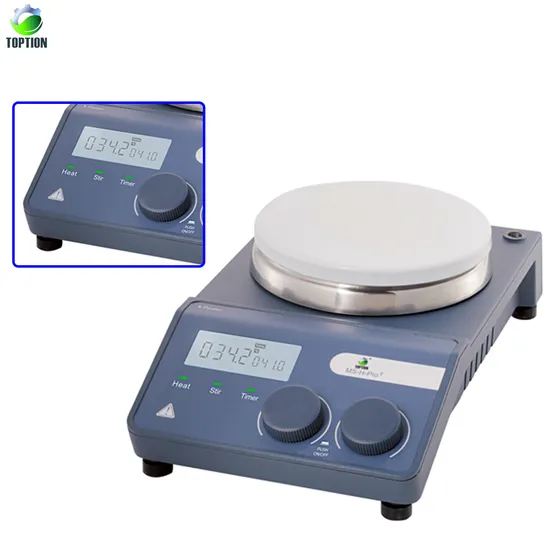

TOPTION MS-H-PROt LCD digital magnetic hotplate stirrer has timer function and max heating temp.reach 340 degree centigrade, this type lab magnetic stirrer is include all leading safety standards and features for superior easy of use and cost-effective.
Product Parameters
| Specifications | MS-H-PRO+ | MS-H-PROT | MS-HS |
| Work plate dimensions | Φ135mm (5 inch) | Φ135mm (5 inch) | Φ135mm (5 inch) |
| Work plate material | Stainless steel cover with ceramic | ||
| Motor type | Brushless DC motor | ||
| Motor rating input | 18W | ||
| Motor rating output | 10W | ||
| Power | 550W | 550W | 530W |
| Heating output | 500W | 500W | 500W |
| Voltage | 100-120/200-240V 50/60Hz | 100-120/200-240V 50/60Hz | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 | 1 | 1 |
| Max. Stirring quantity [H2O] | 20L | 20L | 20L |
| Max. Magnetic bar [length] | 80mm | 80mm | 80mm |
| Speed range | 100-1500 rpm resolution ±1 rpm | 100-1500 rpm resolution ±1 rpm | 100-1500 rpm resolution ±1 rpm |
| Speed display | LCD | LCD | Scale |
| Temperature display | LCD | LCD | Scale |
| Heating temp. range | Romm temp. -340ºC, increment 1ºC | Romm temp. -340ºC, increment 1ºC | Romm temp. -340ºC |
| Temp. Control accuracy | ±1ºC(<100ºC), ±1% (>100ºC). | ±1ºC(<100ºC), ±1% (>100ºC). | \ |
| Over temp. protection | 360ºC | 360ºC | 350ºC |
| Temp. Display accuracy | ±0.1ºC | ±0.1ºC | ±0.5ºC |
| External temp. sensor | PT1000 (accuracy ±0.2) | PT1000 (accuracy ±0.2) | \ |
| "Hot" warning | 50ºC | 50ºC | \ |
| Timer function | \ | 1min to 99h 59min | \ |
| Data connector | RS232 | RS232 | \ |
| Protection class | IP42 | IP42 | IP42 |
| Dimension [W*D*H] | 160*280*85mm | 160*280*85mm | 160*280*85mm |
| Weight | 2.8kg | 2.8kg | 2.8kg |
| Permissible ambient temp. And humidity | 5-40ºC 80% | 5-40ºC 80% | 5-40ºC 80% |
• Brushless DC motor is maintenance free and explosion-proof
• Digital temperature control with max. temperature at 340°C
• Digital speed control with max. speed up to 1500rpm
• Max. stirring quantity of H2O at 20L
• Safety circuits provide overheating protection
• The "HOT" warning will flash if the plate temperature is above 50°C even when the hotplate is turned off
• Wide range timer function from 1min to 99h59min(MS-H-ProT only)
• High-resolution LCD display shows actual temperatures and speed (MS-H-ProT displays the time also)
• External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C
• Stainless steel work plate with ceramic coating provides good chemical-resistant performance
• Remote function provides PC control and data transmission
• A wide variety of accessories are available
