Blue Jay Multi-Channel Branch Circuit Power Meter for Data Center 24 Channel Energy Monitoring

Blue Jay Multi-Channel Branch Circuit Power Meter for Data Center 24 Channel Energy Monitoring

US$80.00-269.00 1 Piece (MOQ)

Basic Info.

Model NO.
MCM211D
Display
Digital
Installation
Direct Connected
Usage
Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter
Electric Equipment
Three-phase Four-wire
Theory
Electronic Meter
Power Meter Connection
Terminal
Measured Signal
Pulse Peak
Type
Power Meter
Certification
ISO, CE
Customized
Customized
Power Supply
AC/DC 90-240V, 45-65Hz
Current
Rated 5A (Optional 1A)
Voltage
Rated 0~480V (Catiii-300V)
Frequency
45-65Hz
Current Overload
1.2 Times Rated Continuous; 5 Seconds for 10 Times
Voltage Overload
30 Seconds for 2 Times of The Rated
Work Environment
-20c~ +60c
Humidity
Rh 20%~95% (No Condensation)
Installation Method
35mm DIN-Rail
Screen
13m Width with a 1.6” DOT Matrix LCD
Soe Record
Optional Max 99 Lists
Current Measuring
1A or 5A
Measurement Accuracy
Class 0.5
Circuit Metering Channel
6 Channels or 18 Channels
Multi- Tariffs Ratio
up to 3 Months (Tou Record)
Transport Package
Carton Packaging
Specification
10*10*10
Trademark
Blue Jay
Origin
China
Production Capacity
1000PCS Per Month

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg

Product Description

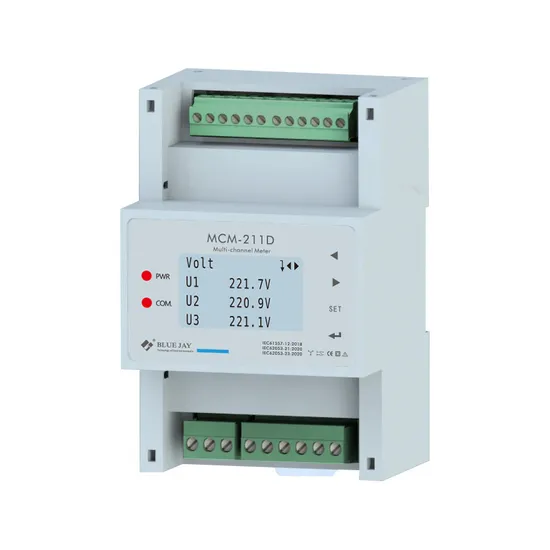

MCM211D multi-channel single-phase energy meter is specifically designed for industrial environments, offering one metering function capable of measuring three independent single-phase circuits simultaneously, ensuring precise monitoring across multiple channels. The product is CAT III 300V certified and boasts a 4kV dielectric strength, providing reliable electrical isolation and protection in complex industrial settings.
MCM211D support 333 mV/100mA current transformers to accommodate various current measurement needs. Additionally, the product offers optional RS485 communication interfaces or an Ethernet port, enabling fast data transmission and seamless system integration, making it an ideal choice for industrial applications.
Feature
* 6 channels three-phase circuit metering
* Accuracy class 0.5
* Current measuring .../5 or .../1 A
* 6'' dot matrix LCD screen
* Universal series power supply (85-265VAC/DC)
* With RS-485 Modbus/RTU Communications
* Optional 6 channels Digital Input (DI) and 2 channels Digital Output (DO)
* Optional advanced electrical parameter*
* Optional record and read tariffs ratio, up to 3 months (TOU record)
* Optional max 99 lists SOE record
* Accept customization design
Specification
Working Power
AC/DC 90-240V, 45-65Hz, or DC 20-60V (Optional)
Maximum power consumption 6W
Input
Current:Rated 5A (Optional 1A)
Voltage:Rated 0~480V (CATIII-300V)
Frequency:45-65Hz
Current overload :1.2 times rated continuous; 5 seconds for 10 times of the rated
Voltage overload :30 seconds for 2 times of the rated

Accuracy Standard
ParameterAccuracyA phaseB phaseC phaseAll
Voltage
Current
Active Power
Reactive Power
Apparent power
Power Factor
Active Energy
Reactive Energy
Frequency		0.2
0.2
0.5
0.5
0.5
0.5
1
2
0.1		V1
A1
W1
var1
VA1
PF1
V2
A2
W2
var2
VA2
PF2
V3
A3
W3
var3
VA3
PF3

W
var
VA
PF
Wh
varh
Hz

EMC Test
ParameterStandardTest voltage
Discharge immunity testIEC61000-4-2 level 48kV
Surge (Shock) immunity testIEC61000-4-5 level 4Common test voltage 4kV
Fast transient burst immunity testIEC61000-4-4 level 3Input 1kV; Power supply 2kV

Reference Standard
Basic ElectricityIEC 61557-12:2018
Active energyIEC 62053-21:2020
Reactive energyIEC 62053-23:2020
Dielectric Strength
IEC/EN 61010-1:2012
2kV AC RMS 1 minute, between input/output/case/power supply
Work Environment
Temperature: -20C~ +60C
Humidity: RH 20%~95% (No condensation)
Storage Environment
Temperature: -25C~+70C
Humidity: RH 20%~95%
Installation
35mm Din-Rail
Dimension
L × H × D =180*110*66mm
Application
Wiring Diagram
