Digital Non-Woven/Fabric Liquid Penetration Tester Testing Equipment Price Nw253

Product Description

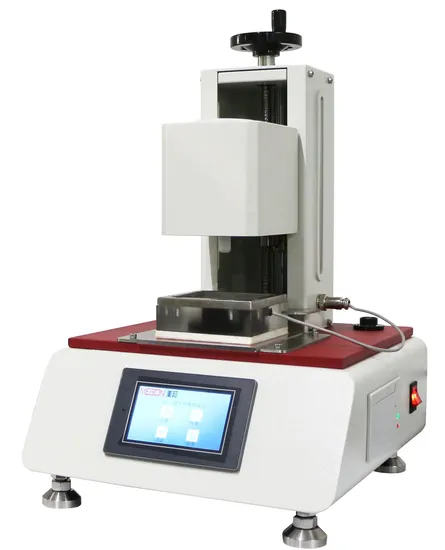

Non-Woven/Fabric Liquid Penetration Tester NW253
Application
The method is used to determine the penetration time of nonwovens coating material liquid (simulated urine).
Standards
FZ/T 60017 GB/T 24218.8 GB/T 24218.13 GB/T 24218.14
Feature
1. Color touch screen control, Chinese and English menu, easy to operate.
2. Built in thermal printer, easy to quickly print test results on site.
3. The penetrating disc is made of special plexiglass and specially processed.
4. All data and statistical results can be freely accessed in the host.
5. The penetrating disc is equipped with a positioning device to avoid collision and damage.
6. The penetrating disc electrode is resistant to corrosion.
Specification
1. Flow rate of funnel with solenoid valve: 25ml in (3.5 ± 0.25) s
2. Penetration times: 1-5 times can be set
3. Interval setting time: 20 ~ 99S (arbitrary setting)
4. Flow rate of funnel with solenoid valve: 25ml in (3.5 ± 0.25) s
5. Substrate material: Transparent PMMA
6. Substrate size: 125 × 125mm, thickness about 5mm
7. Size of penetrating disc: 100 × 100 × 25mm
8. Weight of penetrating disc: 500g ± 5g
9. Electrode diameter: 1.6 mm
10. Sample size: 100 × 100 mm
11. Overall dimension: 410 × 370 × 500mm
12. Weight: 22kg
13. Power supply: AC220 V, 50 Hz, 50 W

Operation interface
