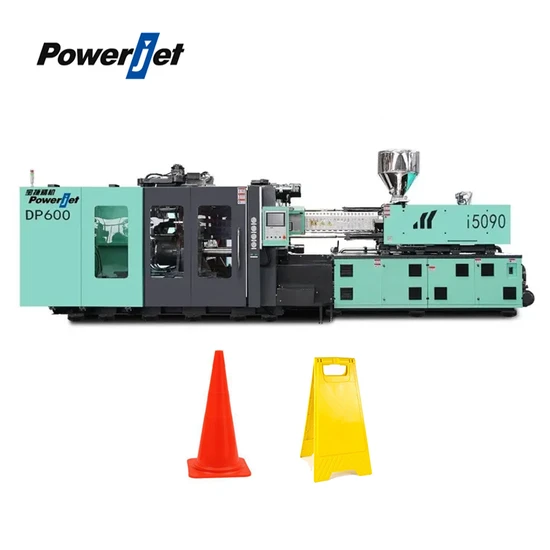

High Efficiency 650 Ton Plastic Warning Sign Traffic Cone Injection Molding Machine

Product Description

Details Images
Application
Product Paramenters

DESCRIPION		UNIT	DP650-S6
CLAMPING UNIT	Clamping force	KN	6500
	Opening stroke	mm	1500/900
	Max.daylight	mm	1800
	Space between bars	mm	960x860
	Max.mold height	mm	950
	Min.mold height	mm	350
	Ejector stroke	mm	250
	Ejector force	KN	166
INJECTION UNIT	Screw diameter	mm	85/90/100
	Screw L/D Ratio	L/D	24.4/22.7/20.2
	Injection Pressure	MPa	213/190/154
	Shot volume	cm3	2553/2863/3534
	Shot weight (ps)	g	2324/2605/3216
		oz	82/92/113
	Injection rate	g/s	551/617/762
	Plasticizing capacity	g/s	89/90/136
	Screw stroke	mm	450
	Screw speed	rpm	145
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	2x44
	Heater power	KW	47
GENERAL	Oil tank capacity	L	1000
	Machine weight	T	23
	Machine dimensions (L*W*H)	m	8.3x3.0x2.6

Company Profile

POWERJET PLASTIC MACHINERY CO., LTD. is a high and new technology enterprise of R&D, manufacturing, sales, after-sales service of injection molding machine and blow molding machine. Powerjet was founded in 2000,occupying an area of 130,000 square meters. Annual production capacity has reach to 4000-5000 injection sets of. More than 20 offices have been set up in the global market, machines have been exported to more than 60 countries in the world. The machine specifications are complete, adapt to a variety of industries, cost-effective, and create high returns for customers. One-stop whole-process caring service.
Established distributors in multiple countries like Thailand, Malaysia, Indonesia, Vietnam, Uzbekistan, USA, Mexico, Brazil, and Pakistan, etc. With a global sales network, our local offices and agents can provide more convenient and sincere services. Agent In Worldwide
Setting Up Agent In More Than 20 Countries For Sales And Support
Lifetime Support
24 Hours Online Service And Overseas Installation & Maintenance
Spare Parts
We Supplying Screw, Motor, Control Panel And Plastic Mold For Machines
Operation Training
Support Training To Engineer For Setup, Processing & Troubleshooting
Plastic Mold Testing
Provide Testing Mold Service Before Customer Receiving The Machine
Project Cases


FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 20 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located in No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
