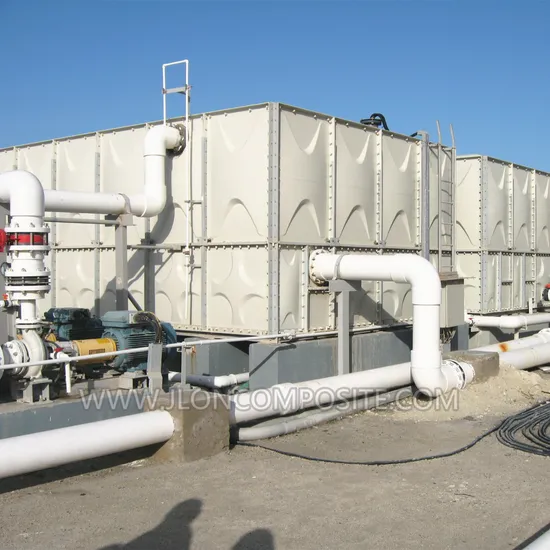

SMC Sheet Molding Compound for GRP Water Tank

SMC Sheet Molding Compound for GRP Water Tank

US$1.17-1.42 100 kg (MOQ)

Basic Info.

Model NO.
SMC1046
Thickness
3-6mm
Usage
Industral
Product Categories
Reinforced Composite Material
Molding Method
Compression Moulding
Material
Polyester Resin/Vinyl Ester Resin
Fiber Type
Fiberglass
Type
Polyester FRP
Width
Max 1.0 Meter
Fiber Content
18-40%
Moulding Temperature
145±5
Moulding Pressure
600-100MPa
Specific Gravity
1.7-1.9
Compressive Strength
185MPa
Transport Package
Corrugated Carton with Pallet
Specification
RAL7035 GREY
Trademark
JLON
Origin
Changzhou, China
HS Code
3921909090
Production Capacity
10, 000 Ton /Year

Product Description

Introduction:
Sheet moulding compound (SMC) or sheet moulding composite is a ready to mould glass-fibre reinforced polyester material primarily used in compression moulding. Alternatively the resin and related materials may be mixed on site when a producer wants greater control over the chemistry and filler.
Sheet moulding compound (SMC) is manufactured by dispersing long strands (usually >1") of chopped fiber (commonly glass fibers or carbon fibers on a bath of thermoset resin (commonly polyester resin, vinyl ester or epoxy resin)). The longer fibers in SMC result in better strength properties than standard bulk moulding compound (BMC) products. Also we provide long and continuous fiber or woven roving for extra reinforcement.
Features:
High mechanical strength, low shrink, low density, dimensional stability, corrosion resistance, fire resistance,
Typical Application:
Electrical applications, corrosion resistant needs, structural components at low cost, automotive, sanitary, transit.
Type Application
General Purpose Non-electric products such as chair, water tank
Heat and Corrosion Resistant Composite materials intended for use in sanitary, such as shower base, bath tub, walls
Electric Satisfy different flame ratings such as UL94 HB, UL94 V0. High strength, UV stability. Suitable to make electric parts used indoor or outside
High Strength & A Grade Surface High strength, good tenacity, A grade surface. Suitable to make door skin and auto parts such as bumper, panel, truck high roof

Typical Specification:
Physical Property Units Standard Data Remark
Specific Gravity ( g/cm³) ASTM D-792 1.7-1.9 -
Glass fiber content % GB/T15568-95 18-40 -
Water absorption % ASTM D-570 0.2-0.3 24Hrs@23C
Average Shrinkage % ASTM D-955 0.05-0.2 -
Tensile Strength Mpa ASTM D-638 62 -
Tensile Modulus Gpa ASTM D-638 15 -
Flexural Strength Mpa ASTM D-790 158 -
Flexural Modulus Gpa ASTM D-790 14 -
Compressive Strength Mpa ASTM D-695 185 -
Impact Strength-Izod Notched J/m ASTM D-256 640 -
Impact Strength-Izod Unnotched J/m ASTM D-4812 854 -
Barcol Hardness - ASTM D-2583 30-60 -
Heat Distortion Temp C ASTM D-648 >204 264 psi
Flammability cm/min ASTM D-635 1.7 Average Burn Rate
Color - RAL 7035 -
SMC tray Product Description The SMC shower trays are a standard product installed during the construction of domestic and commercial premises. These trays are used everywhere, from basic building construction to highly advanced and modern bathroom designs. As a product that gets used on a daily basis, it is necessary for them to be highly durable and robust.
SMC Shower trays are also called hot cast shower trays, which is a popular name for them in America.
The material used to produce the shower trays is high-grade Sheet Mould Compound (SMC), which is amazingly strong while also remaining light in weight. Moreover, the material is non-hygroscopic, non-corrodible and ideally suited for aesthetically pleasing shower trays. These fantastic properties made SMC the best choice of material for the manufacture of the shower tray range.
We got 3 sets 2000Ton Presser and 10 different type mold for your choice.
Customized service availiable .
Colour: multi color
Made of durable SMC (sheet molding compound)
Self supporting, twice stronger than artificial Marble
2 year warranty
Size(mm):1300*1000*4
Stone effect surface
Delivery time: 25-30 days
Life:25years
