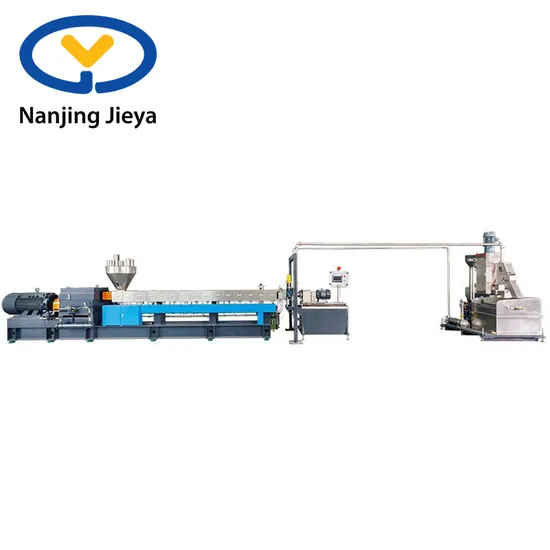

EVA/ TPR/ TPE/ TPV /TPU Plastic Pellet Making Machinery/Twin Screw Compounding Extruder with Underwater Pelletizing for Thermoplastic Elastomer

EVA/ TPR/ TPE/ TPV /TPU Plastic Pellet Making Machinery/Twin Screw Compounding Extruder with Underwater Pelletizing for Thermoplastic Elastomer

US$50,000.00-80,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SHJ-72
Type
Granules Making Extruder
Plastic Processed
PP, PE, ABS, PC, TPE, TPU, TPR, PVC
Product Type
Granulating Extruder
Feeding Mode
Multiple Feed
Assembly Structure
Integral Type Extruder
Screw
Twin-Screw
Engagement System
Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Raw Material
PP PE PP PVC ABS EVA Pet TPU TPR PC HDPE
Output
300-500kg Per Hour
Feeding System
Volumetric/Gravimetric
Screw Diameter
62.4mm
Screw Rpm
60-600
L/D
36-60
Screw Elements Material
W6mo5cr4V2
Barrel Material
45# Steel with Bimetallic 101 Liner
Core Shaft Material
40CrNiMoA
Main Motor Power
132/160/200kw
Main Motor Brand
Siemens
Inverter Brand
Delta/Japan Yaskawa/ABB
Pelletizing System
Underwater Pelletizing
Control System
Button/PLC
Special Request
Can Be Customized
Transport Package
Wood/Pallet Packing
Specification
4000*650*2000mm
Trademark
Nanjing Jieya
Origin
Made in China
HS Code
8477209000
Production Capacity
500 Sets Per Year

Product Description

Product Description
Industry-leading machining center
The most difference making us outstanding than other factories is our strong processing capability .
Equipped with more than 50 sets of various types of machining equipment,core parts of the twin screw extruder are all manufactured at our own factory which makes the production cost and quality controllable .
Twin screw extruders core components are all self-made to guarantee the machine quality.
Gear box-self made
Torque rating grade: T/A3≤8 domestic standard major parts
New structure design and high precision grinding of hardened gear teeth to ensure the gear box long time high efficiency working.
Screw-self made
Screw element is with closely intermeshed design, block type and can be easily exchanged to suit different material.
Barrel-self made
Precision grade can reach to IT 6. It is benefit for energy reduction and block type design makes it possible for various combination.
Quality inspection
We have a portable US Hexagon-Romer articulated arm measuring instrument, laser alignment tool, high precision testing equipment. Advanced manufacturing hardware platform combined with a careful inspection to ensure that equipment components manufacturing and assembly accuracy with a host of industry-leading level.
Product Parameters
Model Screw Diameter (mm) L/D Screw RPM Main motor KW Torque Grade T/N3 Capacity kg/h
SHJ-20 21.7 32-68 400/500/600 4 5.8 0.5-15
SHJ-30 30 32-68 400/500/600 11 5.8 5-50
SHJ-36 35.6 32-68 500/600/700/800 15-18.5-22 5.7 20-80
SHJ-42 41.2 32-68 500/600/700/800 22-30-37 5.7 50-120
SHJ-50 50.5 32-68 500/600/700/800 37-45-55 5.8 80-200
SHJ-63 62.4 32-68 500/600/700/800 55-75-90 5.8 150-350
SHJ-72 71 32-68 500/600/700/800 90-110-132-160 5.7 300-600
SHJ-85 82 32-68 500/600 160-200 5.7 600-1000
SHJ-92 91 32-68 500-600 250 5.8 840-1600
SHJ-135 133 32-68 650-750 400-500 5.8 1950-3250

Applications
Filling modification PE, PP, EVA, ABS, PC, PS, etc+calcium carbonate, talc, glass beads, SiO2, aluminum hydroxide. Magnesium hydroxide, brocade oxide, sulfuric acid
PP, PA, ABS, etc. + iron powder, magnetic powder, aluminum powder, stainless steel wire, ceramic powder
Blending modification(rubber and plastic compounding, plastic alloy PE, PP, PS+SBS, PP, PA+EPDM, POE, PP+NBR, EVA + silicone rubber, etc.
PA, PC+ABS: ABS+TPU: PBT+PET: PP+PE, etc.
Masterbatch PE, PP, ABS, EVA, PS, PBT, PET, etc. + pigments and other additives
Functional masterbatch Biodegradable masterbatch: PE, PS, PP + starch, etc.
Flame retardant masterbatch: PE, PP, PA, ABS, PBT, etc. + flame retardants and other additives
Polyethylene master batch,anti-fog and anti-aging, high thermal insulation masterbatch, cooling masterbatch, rheology modified masterbatch, anti-rust masterbatch, stiffening masterbatch, antistatic masterbatch, antibacterial masterbatch
Carbon black masterbatch: PE, EVA, ABS, PET, etc. + carbon black
Glass fibre (Carbon fibre)Reinforcement (MD model short fibre) PP, PBT, ABS, AS, PA, PC, POM, PET, PEEK, PPO, PES, etc. + long glass fiber or short glass fiber
PP, PBT, ABS, AS, PA6, PA66, PC, POM, PET, etc. + long carbon fiber or short carbon fiber
Thermoplastic elastomer TPR, TPU, TPV, SBS, SEBS, SIS, etc
Special material EVA, PU hot melt adhesive, silicone adhesive, UHMWPE spinning
Fluororubber, fluoroplastics, LCP, PEEK, PES, PL, PSU, etc.
Optical cable covering material, acetate fiber, PP cigarette filter material, conductive plastic
TPR, PU, EVA foam sole material
Luminous plastics, antibacterial plastics, anti-UV plastics, PE cross-linkable pipe materials food, pet feed
Various cable materials HDPE, LDPE, LLDPE, MDPE, PP, EVA Insulation material, sheath material, PF Radiation cross-linked cable material, PE Silane cross-linked cable material
Flame retardant polyolefin cable materials, low smoke halogen-free flame retardant cable materials
Low smoke and low halogen flame retardant PVC cable material
Reactive extrusion Polyamide polycondensation reaction, polyester melt polymerization reaction, polyurethane polycondensation reaction, polycarbonate polycondensation reaction, polyoxymethylene bulk continuous polymerization reaction, PMMA polymerization
Devolatilization Chlorinated polypropylene, chlorosulfonated polyethylene, fluorine rubber, butadiene rubber, SBS, EPDM, SEBS, SIS, etc.
Powder coating Polyester type, epoxy type, acrylic vinegar type, polyurethane type, acrylic vinegar, phenol resin, etc.

Company Profile
Certifications
Exhibitions
Our Customers
Packaging & Shipping
FAQ
1.Are you a factory or trading company?
We're a factory, located in Lishui, Nanjing city with 20 years experience.
2.What's your advantages over other vendors?
The greatest advantage over other vendors is our strong processing capability .
Core parts of the twin screw extruder is all manufactured at our own factory which makes the production cost controllable.That's why our machine enjoy a high performance to price ratio.
Other advantages include:
Excellent quality control
Professional Tech. and R&D team
Mega after-sale service
Sufficient spare parts
Fast delivery
Competitive price
3.Where is your factory located? How can I visit there?
Our factory is located in NO. 337 East Zhening Road, Zhetang Town, Lishui, Nanjing, Jiangsu Province, China.
(1) You can fly to Nanjing Lukou Airport directly. We will arrange to pick u up at Lukou airport.
(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed bullet train, then we will pick you up at Nanjing south railway station.
4.How can I know the status of my order?
We will keep you updated by photos and videos. Once the machine is completed and ready for shipment, we will inform you to come to inspect the machine.
5.How long is the deliver time?
Normally, 45 days from the date we receive your deposit.
6.How long is the warranty?
One-year warranty for the whole machine.
