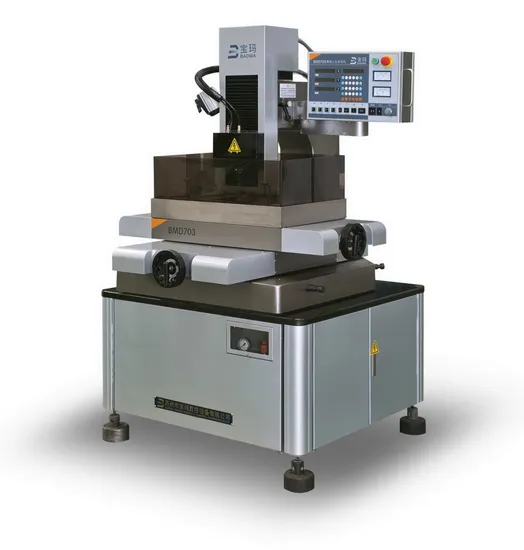

Small Hole EDM Machine
| US$6,500.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BMD703-500
Structure
Mill Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
4
Hole Diameter
0.2-3.0
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
1unit/Plywood Case
Specification
CE; ISO9001: 2000; ISO14001: 2004
Trademark
BAOMA
Origin
China
HS Code
84563010
Production Capacity
1200units/Year
Product Description
CNC Small Hole Drilling MachineAble to drill holes range from diameter 0.2-3.0mm with max depth-diameter ration 300: 1
Drilling speed 30-60 mm/min
Able to drill various conductive metals, such as stainless steel, chilly steel, solid carbide, copper, aluminum etc
Able to drill directly into bevel or curve surface
With electrode auto checking function, improve machining hole precision
With lubrication system, and hand control equipment
With memory function
NC axis with opposite clearance error compensation function
With hand zero clearing function for NC axis
X, Y, Z axis adopt ball screw, linear guideway
X, Y, Z axis adopt servo motor, control precision as 0.001mm
Hole position and parameters editor function
Optional C axis (rotate axis), four axis CNC
| Work table Size | 410 x 590 mm | Drilling Depth | 0 - 300 mm |
| Work Table Travel | 400 x 500 mm | Z axis Travel | 300+(320) mm |
| Load of Table | 300 Kg | Max. Drilling Speed | 60 mm/min |
| Electrode Diameter | 0.2-3.0 mm | Max. Working Current | 30 A |
| Water Tank Capacity | 30 L | Max. Power comsumption | 3.5 KVA |
| Machine Weight | 700 Kg | Voltage | 220-415V / 50HZ |
| Machine Dimensions | 1379 x 1429 x 1886 mm | Working Solution | Water/Saponification |
| Packing Dimensions | 1680 x 1730 x 2050 mm | Function of setting depth | Yes |
| Control Type | ZNC: Z axis NC Control | Z axis Travel Control | Electric Motor |
