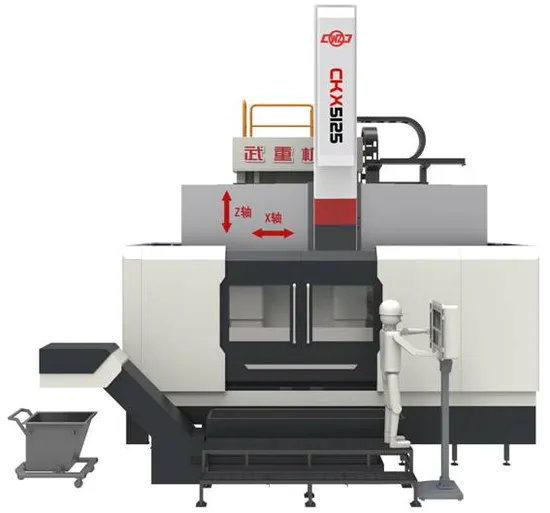

CH5125b CNC Single Column Vertical Turning Lathe

Product Description

Product Description
APPLICATION
Suitable for materials such as various casting irons, steel and alloy, non-ferrous metal, non-metal material, etc. It can carry out turning to inner/exterior cylinder, inner/exterior cone, plane, slot/groove, thread and various rotary curved shaped parts.
Function attachments as per requirement: disc type ATC, in-machine tool setting device, job measuring probe, electric spindle grinding head, etc.
The main performance characteristics:
Main fundamental parts adopt high quality casting iron, with thermal symmetrical structure to improve thermal stability. Table adopts high accuracy double row roller bearing in radial for centering; large size ball thrust bearing is adopted in axial for supporting; Main drive adopts 2-step mechanic speed change planet gear transmission structure, driven by wide field magnet DC motor or AC spindle motor. Toolhead ram travel adopts ballscrew pair transmission; guide way adopts pump per pocket closed type hydrostatic guide way of constant flow. Machine adopts full closed enclosure protection; crossrail guide way adopts stainless steel protection cover. X/Z can adopt optical scale for full closed loop inspection; in table center encoder is adopted for constant speed cutting and thread turning. Product Parameters

Item	Unit	Model
		CK5112B	CH5112B	CK5116B	CH5116B	CK5120B	CH5120B	CK5125B	CH5125B
Max turning diameter	mm	Φ1250		Φ1600		Φ2000		Φ2500
Max turning height	mm	1000		1600		1600		2000
Table diameter	mm	Φ1050		Φ1250/Φ1400		Φ1600/Φ1800		Φ2000/Φ2250
Table loading capacity	t	5		8		11.2		16
Highest table speed	r/min	390		315		250		200
Max table torque	kN.m	10		20		25		32
Ram section size	mm	200×200		250×250		250×250		250×250
Max ram travel	mm	1000		1600		1600		1600
Turning main motor power	kW	37		55		55		55
