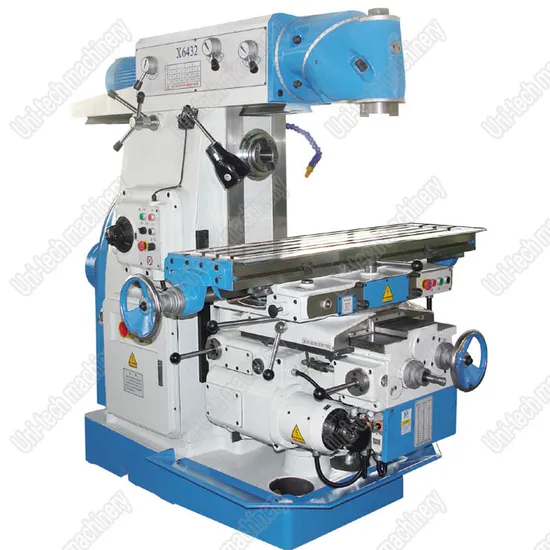

Knee-Type Milling Machine/Universal Milling Machine (X6432)
| US$18,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6432
Type
Knee-and-Column Milling Machine
Object
Hardware
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
X6432
Universal Milling Machine
Table Size
320X1325mm
X-Axis Travel
700/680mm
Y-Axis Travel
255/ 240mm
Z-Axis Travel
320/300mm
Max.Rotary Angle
45degree
Vertical Main Power
4kw
Horizontal Motor
7.5kw
Spindle Taper
ISO50
Vertical Speed
60-1750rpm, 12steps
Horizontal Speed
30-1500rpm, 18steps
T Slot
3X18X70mm
Transport Package
Wooden Case, No Need Fumigation, Plastic Cover
Specification
3000kg
Trademark
UNI-TECH
Origin
China
HS Code
8459590000
Production Capacity
100PCS/Month
Product Description
Knee-type milling machine/Universal milling machine (X6432)Features:
Ball screws can be ordered instead of standard lead screws at special request.
Vertical and Horizontal spindle hole taper both are ISO50.
The milling head can swivel at 360°.
Rotary table can be ordered at special request.
Worktable feed on X,Y,Z by manual or automatic.
Big worktable load.
CE standard can be chose.
Schneider electric can be ordered at special request.
More stronger type.
| Specification | Unit | X6432 | X6432B |
| Table size | mm | 320x1325 | 320x1600 |
| Max Longitudinal travel(manual/auto) | mm | 700/680 | 900/880 |
| Max transverse travel(manual/auto) | mm | 255/240 | |
| Max vertical travel(manual/auto) | mm | 320/300 | |
| Max rotary angle | -- | ±45° | |
| T Slots(N*W*D) | -- | 3/18/70 | |
| Spindle hole taper | mm | 7:24 ISO50 | |
| Distance of Horizontal spindle axis to table surface | mm | 30~350 | |
| Distance of table center to vertical spindle | mm | 190~510 | |
| Distance of table center to vertical ways of column | mm | 470~215 | |
| Distance of table center ram | mm | 155 | |
| Spindle speed step | -- | 12(V) 18(H) | |
| Spindle speed range | r.p.m | 60-1750(V) 30-1500(H) | |
| Table feed steps | -- | 18 | |
| Table feed range Longitudinal | mm/min | 23.5~1180 | |
| Table feed range cross | mm/min | 23.5~1180 | |
| Table feed range vertical | mm/min | 8~394 | |
| Table rapid moving speed Longitudinal/sross | mm/min | 2300 | |
| Table rapid moving speed vertical | mm/min | 770 | |
| Power of spindle | Kw | 4(V) 7.5(H) | |
| Spindle of motor range | r.p.m | 1440 | |
| Feed motor | Kw | 1.5 | |
| Feed of motor range | r.p.m | 1440 | |
| Overall size (L x W x H) | mm | 2900 | 3000 |
| Net Weight | kg | 2294x1770x1780 | 2294x2050x1780 |
Standard accessories:NameSpecification Model Qty
| - | 1set | |
| ISO50 Cutter arbor Cutter arbor | φ40 | 1 piece |
| Horizontal arbor assembly | Φ22 | 1 piece |
| Horizontal arbor assembly | Φ27 | 1 piece |
| Horizontal arbor assembly | Φ32 | 1 piece |
| Oil gun | 1 piece | |
| Drawbar | M24x720 | 1 piece |
| Double-ended wrench | 13x14 | 1 piece |
| Double-ended wrench | 27x30 | 1 piece |
| Double-ended wrench | 32x36 | 1 piece |
| Inner hexagonal wrench | 5 | 1 piece |
| Inner hexagonal wrench | 8 | 1 piece |
| Inner hexagonal wrench | 10 | 1 piece |
Optional accessories:Name
Specification Model
Remark
| XC Series Vertical milling head | XC622B | 7:24 ISO |
| XC Series Universal milling head | XC624A | MT4 |
| Universal dividing head | 125A | Include three-jaw chuck |
| Universal dividing head | 160 | Include three-jaw chuck |
| Swivel table | φ320 | Manual |
| Indexable carbide mill tool | φ63 | With shank |
| Indexable carbide mill tool | φ100 | No shank |
| Indexable carbide mill tool | φ160 | No shank |
| Sizing block | 240x120 | 6 pieces/set |
| Clamping kit | ||
| Milling chucks | 15 | |
| Machine vice | 160 | |
| 3-Axis DRO |
Website: http://uni-techmachinery.en.made-in-china.com/
Our Services
1. Your inquiry and email will be replied within 24hours.
2. If you need to develop products with your own specification, we can help you to work it out.
3. Always be honest, never lie to customer, and never declare anything we don't have.
4. Customer First:,we offer best Quality and Service!
FAQ
1. Payment Method:
30% deposit T/T in advance, rest against the copy of B/L or before delivery.
2. Delivery Time:
one week
3. MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.
4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS
