China Manufacturer 0.6L High Pressure Soda CO2 Aluminum Gas Cylinder

Product Description

Products Descript

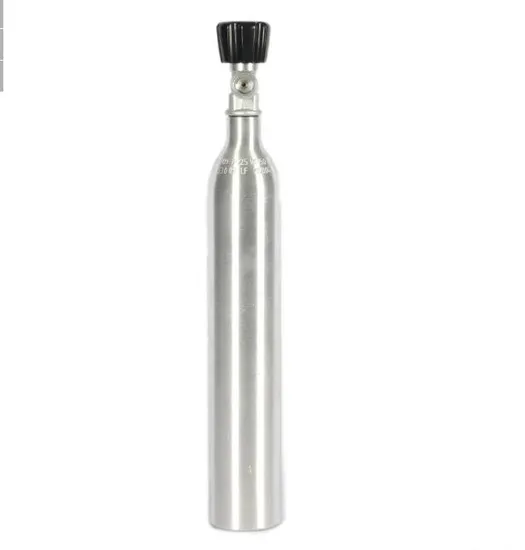

0.6L CO2 Aluminium Gas Cylinder
Main Feature:
Model:AL06
Name: CO2 gas cylinder
Material: aluminium alloy
Gas type : CO2
Color: Silver
Type: CO2 gas
Water Capacity: 0.6L
Working Pressure: 150bar
Test Pressure: 250bar
Details about Gas Cylinder as below:
Gas Cylinder Parameters
Product name:Carbon Dioxide filling gas cylinders
Material of Body:Aluminium
Size:360*60mmCapacity:0.6L
Weight:≥1.15kg
Packing size:64mm*64mm*367mm
0.6L aluminum can be used in home(soda maker), Kitchen, bar, club, and other food applications. Details about Gas as below:
Gas Parameter
Purity:>99.9%
Volume:360kg
Application:Making soda water
Storage condition:Avoid being heated and exposed to sunlight
Shelf life:One year
Cylinders are made from high strength Aluminum Alloy 6061, reliable in durability, fracture toughness and resistance to tearing and cracking.
Highly corrosion-resistant interior and exterior-ideal for wet gases.
Cylinders perform well at low temperatures.
Lightweight--up to 40 percent lighter than comparable steel cylinders and in Consistent weight, consistent thickness resist damage.
Brushed external surface provides a low-maintenance finish.
Cylinders meet or exceed all regulatory standards worldwide.
Cylinders cycle-tested in excess of 120,000 cycles at service pressure. Excess of 12000 cycles at test pressure.
Minimum burst pressure tested to 2.5 times service pressure without failure.
* Valve & Threads can be specified & installed Upon Request.
* Standard Finishing is RAL300 Red Powder Coated.
* Markings according to Standard Specifications, Additional Markings Available Ipon Request.
Related Products

Type	Outside Diameter (mm)	Water Capacity (L)	Height (Withoutvalve) (mm)	Weight(Without valve,cap) (Kg)	Working Pressure (Mpa)	Design Wall Thickness (mm)
LW-60-0.5-20H	60	0.5	285	0.6	200	3.1
LW-75-0.7-15H	75	0.7	295	0.9	150	4
LW-82-0.7-15H	82	0.7	235	0.9	150	4.2
LW-89-1.0-15H	89	1.0	269	1.2	150	4.5
LW-89-1.4-15H	89	1.4	345	1.4	150	4.5
LW-108-1.0-15H	108	1.0	210	1.3	150	5.5
LW-108-1.4-15H	108	1.4	264	1.6	150	5.5
LW-108-2.0-15H	108	2.0	346	2.1	150	5.5
LW-108-2.5-15H	108	2.5	413	2.5	150	5.5
LW-120-2.0-15H	120	2.0	320	2.7	150	6.1
LW-120-2.5-15H	120	2.5	369	3.0	150	6.1
LW-120-2.8-15H	120	2.8	398	3.2	150	6.1
LW-120-3.2-15H	120	3.2	437	3.5	150	6.1
LW-140-4.0-15H	140	4.0	420	4.2	150	7.1
LW-140-5.0-15H	140	5.0	500	4.9	150	7.1
LW-140-6.0-15H	140	6.0	580	5.6	150	7.1
LW-140-8.0-15H	140	8.0	741	7.2	150	7.1
LW-140-5.0-20H	140	5.0	525	6.3	200	9.3
LW-140-6.0-20H	140	6.0	652	7.98	200	9.3
LW-159-10.0-15H	159	10.0	730	8.8	150	8
LW-184-9.0-20H	184	9.0	575	12.0	200	12.2
LW-184-10.0-20H	184	10.0	620	12.9	200	12.2
LW-184-11.0-20H	184	11.0	665	14.2	200	12.2
LW-184-12.0-20H	184	12.0	710	15.4	200	12.2
LW-203-12-15H	203	12.0	567	11.8	150	10.3
LW-203-15-15H	203	20.0	873	17.0	150	10.3
LW-203-21.3-15H	203	21.3	962	19.9	150	10.3
LW-204-12-20H	204	12.0	610	16.5	200	13.4
LW-204-15-20H	204	15.0	735	18.7	200	13.4
LW-204-20-20H	204	20.0	940	23.4	200	13.4
LW-232-29.5-15H	232	29.5	994	30.2	150	11.7
LW-232-30.3-15H	232	30.0	1010	30.5	150	11.7
LW-232-33.4-15H	232	33.4	1126	31.3	150	11.7
LW-232-40.0-15H	232	40.0	1340	36.5	150	11.7
LW-232-20.0-20H	232	20.0	750	26.9	200	15.4
LW-232-26.0-20H	232	26.0	921	30.7	200	15.4
LW-232-30.0-20H	232	30.0	1076	36.4	200	15.4
LW-232-31.5-20H	232	31.5	1096	38.0	200	15.4
LW-232-40.0-20H	232	40.0	1365	44.1	200	15.4
LW-250-40.0-15H	250	40.0	1150	36.7	150	12.6
LW-250-46.4-15H	250	46.4	1305	38.7	150	12.6
LW-250-47.5-15H	250	47.5	1340	42.0	150	12.6
LW-250-50.0-15H	250	50.0	1590	39.0	200	12.6
LW-250-40.0-20H	250	40.0	1227	46.3	200	16.5
LW-250-50.0-20H	250	50.0	1500	56.0	200	16.5
