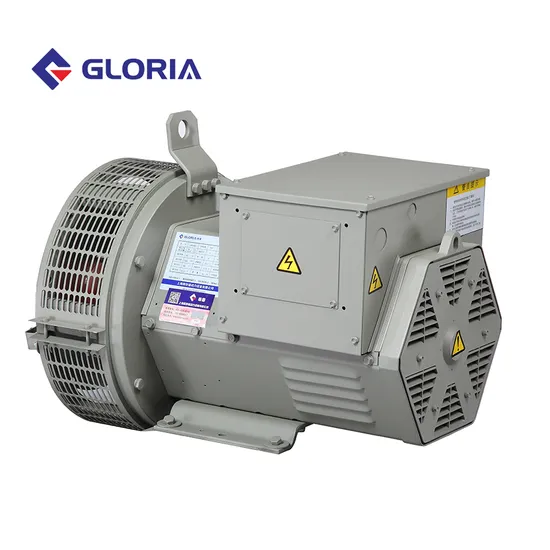

Best Generator Diesel 3 Phase AC Brushless Alternator Industrial Price 22kw
Basic Info.
Model NO.
GR180F
Output Type
AC Three Phase
Material
Essex Copper Wire
Uasge
Generate Electricity
Phase
3 Phase
Voltage
Low Voltage
Suitable
Medium and High Power.
Quality
He Best Engine Spare Part
Project
Hospital Schools Banks Ship Boat
Test
110% Load Test with at Least 40mins
Insulating Varnish
Elantas E300 Insulation
Silicon Steel Sheet
Wisco Silicon Steel
Insulating Paper
DuPont Double-Layered
Bearings
Renben Bearings, The Best in China.
Processes
Brushing/Vacuum Impregnation
Customize
Available OEM Brand
Packing Delivery
30days
Transport Package
Wooden Box
Specification
CE. SGS, CCS
Trademark
Gloria
Origin
Shanghai
HS Code
85016100
Production Capacity
5000 Set/Year
Packaging & Delivery
Package Size
250.00cm * 100.00cm * 160.00cm
Package Gross Weight
1500.000kg
Product Description
Product DescriptionProduct Parameters
| GLORIA 3PHASES LAND ALTERNATOR-GR180H | ||||||||
| CONTROL SYSTEM | SELF EXCITED | |||||||
| A.V.R. | SX460 | |||||||
| VOLTAGE REGULATION | ±1.0 % | |||||||
| SUSTAINED SHORT CIRCUIT | SELF EXCITED MACHINES DO NOT SUSTAIN SHORT CIRCUIT CURRENT | |||||||
| INSULATION SYSTEM | H | |||||||
| PROTECEION | IP23 | |||||||
| RATED POWER FACTOR | 0.8 | |||||||
| STATOR WINDING | DOUBLE LAYER CONCENTRIC | |||||||
| WINDING PITCH | TWO THIRDS | |||||||
| WINDING LEADS | 12 | |||||||
| STATOR WDG.RESISTANCE | 0.1713Ω(27°C) | |||||||
| ROTOR WDG.RESISTANCE | 0.89Ω(27°C) | |||||||
| EXCITER STATOR RESISTANCE | 24 Ω(27°C) | |||||||
| EXCITER ROTOR RESISTANCE | 0.122Ω(27°C) | |||||||
| R.F.I.SUPPRESSION | BS EN6000-6-2 & BS EN61000-6-4,VDE 1875G,VDE0875N.refer to factory for others | |||||||
| WAVEFORM DISTORTION | NO LOAD <1.5% NON-DISTORTING BALANCED LINEAR LOAD<5.0 % | |||||||
| MAXIMUM OVERSPEED | 2250 Rev/Min | |||||||
| BEARING DRIVE END | BALL. 63122RZ(ISO) | |||||||
| BEARING NON-DRIVE END | BALL.6306RZ(ISO) | |||||||
| 1 BEARING | 2 BEARING | |||||||
| WEIGHT COMP.GENERATOR | 216KG | 170KG | ||||||
| WEIGHT WOUND STATOR | 73KG | 64.3KG | ||||||
| WEIGHT WOUND ROTOR | 72.33KG | 56.75KG | ||||||
| WR² INERTIA | 0.2763kgm² | 0.22kgm² | ||||||
| SHIPPING WEIGHTS in acrate | 226KG | 180KG | ||||||
| PACKING CRATE SIZE | 84*59*75(CM) | 84*59*75(CM) | ||||||
| 50 Hz | 60 Hz | |||||||
| TELEPHONE INTERFERENCE | THF<2% | TIF<50 | ||||||
| COOLING AIR | 0.15 m³/sec 318cfm | 0.19m³/sec 403cfm | ||||||
| VOLTAGE SERIES STAR | 380/220 | 400/231 | 415/240 | 440/254 | 416/240 | 440/254 | 460/266 | 480/277 |
| VOLTAGE PARALLEL STAR | 190/110 | 200/115 | 208/120 | 220/127 | 208/120 | 220/127 | 230/133 | 240/138 |
| VOLTAGE SERIFS DELTA | 190/110 | 230/115 | 240/120 | 254/127 | 240/120 | 254/127 | 266/133 | 277/138 |
| KVA BASE RATING FOR REACTANCE VALUES | 37.5 | 37.5 | 37.5 | 30 | 44.3 | 46.9 | 46.9 | 46.9 |
| XdDIR.SNCHRONOUS | 2.216 | 2.000 | 1.858 | 1.907 | 2.515 | 2.380 | 2.178 | 2.000 |
| X'd DIR.AXIS TRANSIENT | 0.168 | 0.152 | 0.141 | 0.145 | 0.191 | 0.181 | 0.166 | 0.152 |
| X"d DIR.AXIS SUBTRANSIENT | 0.092 | 0.083 | 0.077 | 0.080 | 0.104 | 0.099 | 0.090 | 0.083 |
| Xq QUAD.AXIS REACTANCE | 1.071 | 0.967 | 0.898 | 0.922 | 1.216 | 1.151 | 1.053 | 0.967 |
| X"q QUAD.AXIS SUBTRANSIENT | 0.187 | 0.169 | 0.157 | 0.162 | 0.213 | 0.021 | 0.184 | 0.169 |
| XL LEAKAGE REACTANCE | 0.069 | 0.062 | 0.058 | 0.059 | 0.078 | 0.074 | 0.068 | 0.062 |
| X2 NEGATIVE SEQUENCE | 0.141 | 0.127 | 0.118 | 0.121 | 0.160 | 0.151 | 0.138 | 0.127 |
| X0 ZERO SEQUENCE | 0.033 | |||||||
| REACTANCES ARE SATURATED VALUES ARE PER UNIT RATING AND VOLACE INDICATED | ||||||||
| T'd TRANSIENT TIME CONST. | 0.024 S | |||||||
| T"d SUB-TRANSTIME CONST | 0.015 S | |||||||
| T'do O.C.FIELDTIME CONST. | 0.57 S | |||||||
| Ta ARMATURE CONST. | 0.001 S | |||||||
