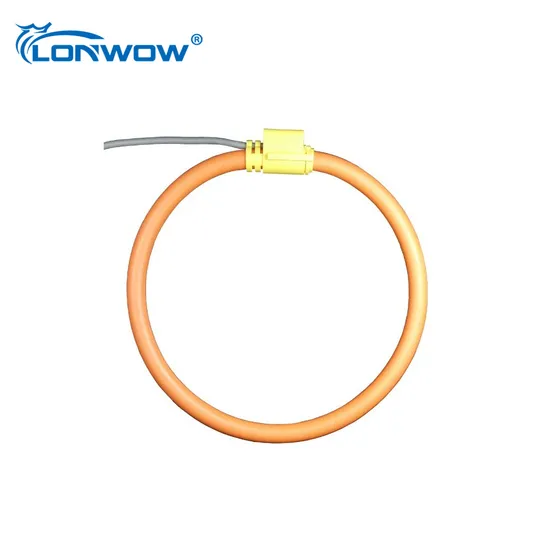

Output Flexible Rogowski Coil Fct Air-Core Coil Data Logger

Product Description

Description:
High linearity from 1A to 100kA
Wide dynamic range
Very useful with large size or awkward shaped conductors or in places with limited access
No danger from open-circuited secondary
Not damaged by large overloads
Non-intrusive, no power drawn from the main
Measurement uniformity at any position of the conductor inside the coil
Excellent degree of rejection to the external current conductor
Feature:
FCT is a flexible current transducer based on Rogowski principle, particularly suitable for measurement in combination with portable devices. FCT coils are available in different sizes and can be supplied according to customer's design, therefore they can be used in all those applications, in which traditional transducers are not fitting due to its size and/or weight.
Due to its specific features, flexible Rogowski coil is an extremely confortable solution for current measurement and can be used in a number of cases where traditional current transducer is not the adequate solution.
FCT coil is provided with a shield against the influence of external magnetic fields, therefore it grants a stable measurement from low currents to hundreds of kA. The Rogowski coils must be connected to an electronic integrator for 90° phase shift compensation and frequency equalization. Our DIN-RAIL and panel meters can interface Rogowski coils directly without the need of the external integrators. This is an advantage because there is no external boxes or any power supply with consequent ease of use. The particular features of the Rogowski coils combined with the extremely flexible input programming of our portable meters, allow to carry out measurement by all applications.
Specification:

MODEL	FCT-420		FCT-510	FCT-620	FCT-800
Coil length	420mm		510mm	620mm	800mm
Window size	120mm		150mm	185mm	240mm
Weight	105g		120g	135g	165g
Reference Rated current	1000A		3000A	6000A	10kA
Coil Resistance	from 100 to 300 Ω
Coil Section	11mm
Lead length	2meter
Output (di/dt)	Uncalibrated	120mV/kA@50Hz
	Calibrated	50mV/kA@50Hz
		85mV/kA@50Hz
		100mV/kA@50Hz
Read Accuracy	Calibrated<0.5% (central position, 25ºC) Uncalibrated < 5% tolerance (central position, 25ºC)
Temperature	Uncalibrated 200ppm/C
	Calibrated 300ppm/C
Position Error	±1% maximum
Output on 0A (zero drift)	≤0.05mV
Phase error	≤0.5°
Linearity	±0.2% of reading
Bandwidth	1Hz to 1MHz(-3dB)
Operating temperature	-30ºC to 80ºC
Storage temperature	-40ºC to 90ºC
Other requirements, please contact us to OEM.
