Steel Sheet Cold Roll Forming Machine

Product Description

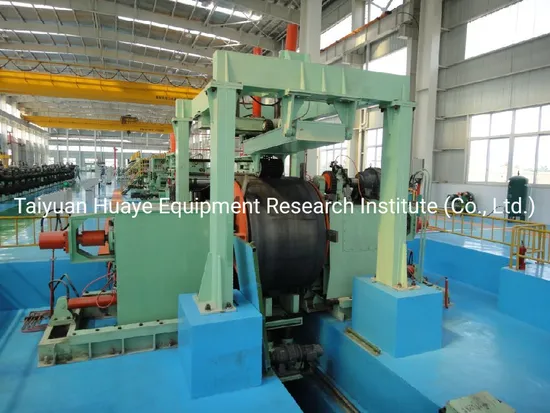

750×5 mm Cold Roll Forming Mill
This 750×5 mm Cold Roll Forming Mill can not only produce 2-beam and 3-beam protecting plates meeting the standard JT/T281-2007: JT/T457-2001, but also can produce corresponding size of opened cold-formed steel.
General Specification

Coil Specification
Sheet thickness Sheet width Coil I.D. Coil O.D. Coil weight Coil material	Max.5 mm Max.780 mm 450/650 mm Φ1000 - 2000mm Max. 15 tons Plain carbon steel, low alloy steelδb≤550Mpa δs≤340Mpa
Product Specification
Length Length allowance	2-8 m ±2 mm
Hole Pitch allowance	±0.5 mm
Mill Specification
Forming type Cold roller forming
Feeding direction From right to left
Produce speed 0-20 m/min

Process flow
Coil preparation - Coil car - Uncoiler - Peel open - Pinch & leveling - Hydraulic shear - joint welding - edge trimmer - scrap rewinder - side guide roller - forming machine - cut-to-length - transit conveyor - packaging - inspection
HUAYE provides a limited 12-month long warranty for the equipment. Within the warranty period, HUAYE provides machine parts replacement and troubleshooting free of work charge if the machine fails under normal use (buyer is responsible for possible international transportation and accommodation of HUAYE's engineers). If the machine fails because of: accident, negligence, or other factors not due to defects in material and workmanship, HUAYE provides parts alteration and troubleshooting for a basic charge. Outside the warranty period, HUAYE provides the same service lifelong for a basic charge.
