Ceramic Glass Trophies Cups Small Shinny Metal Plates Printing Laser Machines

Product Description

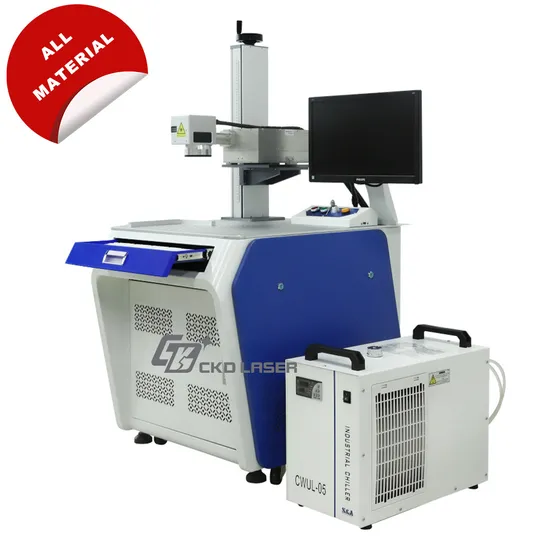

CKD-UMLN series has two types, CKD-UMLN-3 and CKD-UMLN-5, the corresponding UV laser power is 3W and 5W.
Characteristics of UV laser:
Good at marking glass.
Non-inductive smooth marking on plastics.
No burned edges when mark wooden.
Can mark all material that can be processed by other kinds of lasers.APPLICATION INDUSTRY
Cosmetics, electronic products, health products, hutch defends equipment, gifts, handicrafts, advertising materials, household appliances, medicine, and so on.
MARKING MATERIAL
Solid metal: stainless steel, copper, aluminum, gold, silver, titanium, alloy, etc.
Solid non-metal: Glass, agate, jade, jade, porcelain, acrylic, ABS, PVC, acrylic (non-transparent), EP, HDPE, PC, plastic alloy, ink and paint face, etc.
Notice: The marking scope (lens scope) is optional, which is the size of laser scaned and don't need to be the same size of your material. Marking scope is the scope of your figure (designed logo, number, diagram and so on).
We have marking scope of 100*100mm/150*150/200*200mm, the bigger scope corresponds higher focus lengh, we will train you how to operate this machine as after service. If you want big scope, you shoud choose big power.
The position board covers the whole table face, more convenient to fix material or add fixtures flexibly.
CKD-ULMB-3/5 series is with high precision Z-axis column, which is with focus pointer and HD scales, and without slightly deformation that affects accuracy.
CKD-UMLN-3/5 is water cooling type and with water chiller.
The standard attachments are foot swtich and power cable of your local standard. The attachment of rotary is optional, we have 50mm, 80mm, and 100mm rotaries, you can check at: http://ckdlaser.en.made-in-china.com
POWER CABLE FOOT SWITCH ROTARY OF 100mm ROTARY OF 80mm ROTARY OF 50mm
TECH PARAMETERS

Parameter	Unit	Data	Data	State
Type		CKD-UMLN-3	CKD-UMLN-5
Laser Type		UV Laser	UV Laser
Central Wavelength	Nm	355	355
Average Output Power	W	3	5	@30KHz
Pulse Width	ns	<20	<20	@30KHz
Pulse Repetition Rate	KHz	10-200	10-200
M²		<1.2	<1.2
Beam Diameter	mm	1.0±0.1	1.0±0.1	Measured at window
Beam full Divergence Angle	mrad	<1.2	<1.2
Beam Circularity	%	>90	>90
Pulse-to-Pulse Stability	%	<3	<3	RMS/@30KHz
Average Power Stability	%	<5	<5	RMS/8hr
Beam-pointing Drift	μrad/ºC	<30	<30
Polarization Ratio		>100:1	>100:1
Polarization Orientation		Horizontal	Horizontal
Operating Temp.& RH	ºC	10 to 30	10 to 30
	%	<90	<90
Storage Temp.& RH	ºC	-20 to 65	-20 to 65
	%	<90	<90
Power Source Requirement	VAC	100-240	100-240
		90-240V/50-60Hz/2KVA	90-240V/50-60Hz/2KVA
	W	<500	<500
Life of the laser source	hrs	10,000	10,000
Cooling mold		Water cooling	Water cooling
Computer		With	With
Marking software		EzCad2	EzCad2

MARKING SAMPLES SHOW
* Smooth surface marking without protuberance.
* Total darkness marking on PVC
* Not be out of shape after marking on thin metal, protect the material
* Multi material mark, compreshensive application
AFTER SERVICE
* Passed CE and FDA, located Shenzhen China, fast shipping speed.
* Buring and continually checking 24 hours before shipping, ensure each machine is excellent quality
* Professional technical engineers inspect the processing.
* Experenced FAE for after-sale consulting about marking practical application.
* 12 months guarantee, main parts shall be changed free of charge if there is any problem during the warranty.
* Support customized for specific application, such as automatic marking system and extension procedure.
PACKING & SHIPPING Shock absorber sponge inner packing and wooden box outer packing, safe and reliable.
Packing size and gross weight:

Type	Dimension (mm)	Weight (Kg)
CKD-UMLN-3	70*85*120 (put down Z-axis)	135
CKD-UMLN-5	70*85*120 (put down Z-axis)	140
Water Chiller	70*43*58cm	26

* SAFETY PROTECTIVE INNER PACKING
* WOODEN BOX OUTSIDE PACKING
* Shipping by air, by sea, by car, by train and by combined transport, send to all over the world
