Diesel Concrete Pumps Hb58V 58m Concrete Machines for Sale
Basic Info.
Model NO.
HB58V
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
180m²/h
Feeding Height
2100mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000
Condition
New
Color
Red
Dimension(L*W*H)
14750*2530*3990
Driving Type
6*4
Max.Reach Height
57.5m
Wheelbase
2500+4300+1400mm
Concrete Pumping Pressure
8MPa
Theoretical Pumping Times
21~23times/Min
Slewing Radius
52.5m
Delivery Cylinder Diameter*Stroke
260*2200mm
Max.Power
294kw
Slewing Angle
±270°
Reach Height
57.5m
Reach Depth
40.5m
Overall Weight
44000kg
Engine Rated Power
Mc11.40-50
Boom Type
6rz
Transport Package
Standard Ocean Freight
Specification
14750*2530*3990mm
Trademark
Top brand
Origin
China
HS Code
8705909100
Production Capacity
350piece/Year
Packaging & Delivery
Package Size
1475.00cm * 253.00cm * 399.00cm
Package Gross Weight
44000.000kg
Product Description

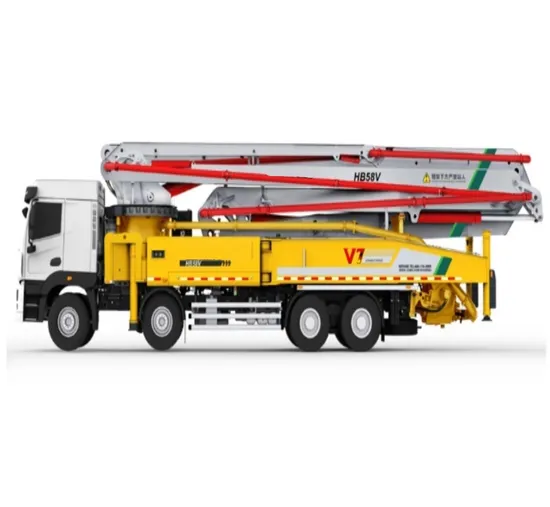

product title58m Concrete Pump Hb58V Truck-Mounted Concrete Boom Pump Trucks
Product Description
Truck-Mounted Concrete Boom Pump is a convenient and efficient dedicated construction machinery for transporting and concreting concrete, which has features of short construction period, large spreading range, low labor strength and operation in confined space. It is widely used in high-rise construction, underground construction and large concrete construction.
• Active boom vibration control technology(ABC):All-position active vibration reduction technology of boom, reducing vibration by 50%. More stable boom, more safety.
• Boom intelligent damping technology:The soft control of booms in starting, slewing and stopping reduces the impacting vibration of booms and therefore makes the vehicle operate more stably,
reliably and safely.
The truck's robust chassis provides stability during operation, while its advanced control system ensures smooth and accurate pumping. Safety features such as load sensing and pressure monitoring systems are integrated to protect the equipment and personnel. Maintenance is made easy with accessible components and regular service intervals, ensuring the pump truck's reliability and longevity. In summary, the concrete pump truck is an indispensable piece of equipment for modern construction sites.
Product Parameters
| Category | Item | Unit | HB58V |
| Overall | Outline dimension | mm | 14570*2530*3990 |
| Overall weight | kg | 44000 | |
| Chassis | Model | - | ZZ5447V466HE1 |
| Wheelbase | mm | 2500+4300+1400 | |
| Max.power | kW | 294 | |
| Emission standard | - | China 5 | |
| Pumping system | Theoretical | m³/h | 170 |
| Concrete pumping pressure | MPa | 8 | |
| Theoretical pumping times | Times/min | 21~23 | |
| Delivery cylinder diameter x stroke | mm | φ260×2200 | |
| Placing boom | Reach height | m | 57.5 |
| Reach depth | m | 40.5 | |
| Slewing radius | m | 52.5 | |
| Slewing angle | ° | ±270 | |
| Others | Transfer tuble | - | Rock valve |
Detailed Photos
