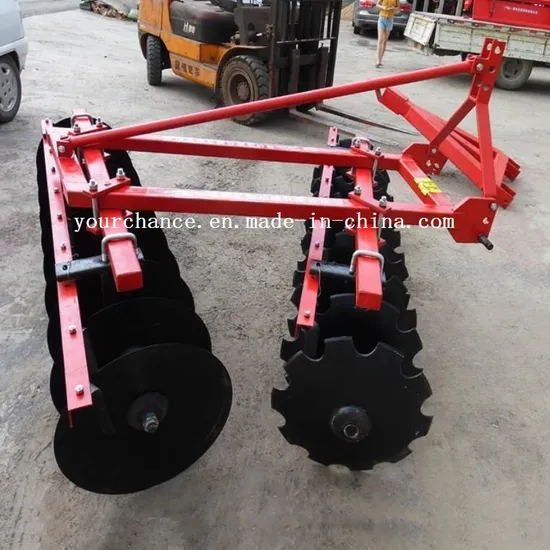

Africa Hot Sale 1bjx-2.2 2.2m Width 20 Discs Middle Duty Disc Harrow for 55-65HP Farm Tractor

Product Description

Africa hot sale 1BJX-2.2 2.2m width 20 discs Middle duty Disc harrow for 55-65HP farm tractor
1BJX series Disc harrow Main Features, Usage, Specification and Technical parameters:
1BJX Series Mounted Medium Disc Harrow
The 1BJX series Disc Harrow are suitable for pulverized and loosening clods on sticky heavy clay soil after ploughing and for planning the land before sowing on cultivated land, It can make soil and fertilizer mix up, and clear away the stump of plants and be used instead of plough on light or medium soil and preparing seed bed for planting.
The 1BJX series Mounted medium Disc Harrow's front gangs are assembled with scalloped disc, and rear gangs with plain disc. The harrows are adopted a whole frame made of quadrangular steel tubes by welding, So their structures are simple and reasonable, strong and durable. Their processes are perfect. The bearing is ball bearing with sphere-outside and square-inside, its rated load is large, trailing resistance is small, sealing is good. They're convenient to operate and maintain. Efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth. All these satisfy the agricultural requirements of intensive cultivation.
The 1BJX series Mounted Middle-duty Disc Harrow could be used with 35HP to 120HP tractors.
This machine has the advantages of reasonable structure, firmness and durability, convenient use, easy maintenance, great capacity of soil piercing and crushing, leveled field surface after ploughing, etc.
The Main Specification and Technical parameters:

Model	1BJX-1.8	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5
Working width (m)	1.8	2.0	2.2	2.4	2.5
Working depth (mm)	140-180
Disc Diameter (mm)	560
Disc thickness (mm)	4
Disc space (mm)	230
Disc No. (mm)	16	18	20	22	24
Productivity (Ha/h)	1.3	1.5	1.6	1.8	1.9
Overall size(mm)	1960*1880*1317	1980*2240*1317	1980*2470*1317	2780*2570*1340	2970*2680*1460
Weight(Kg)	400	434	463	604	700
Linkage	Three point- mounted
Matched power (HP)	35-45	40-60	55-65	65-80	75-100

High quality 1BJX series Disc harrow have ISO,CE, PVOC COC, CO etc certificates:
1BJX series Disc harrow by Iron crate case packing :
Best price will be quoted for you as soon as receive your Requirement !
