CE Approved New Wood Carving Engraving Woodworking-Engraving-Machine Machines Router Machine CNC Lathe Zd1325
Basic Info.
Model NO.
ZD1325
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V/220V
Transport Package
Optional Wooden Box
Specification
3050*2100*1650mm
Trademark
ZhongDing
Origin
Shandong Qingdao
Product Description
Product descriptions from the supplier Overview

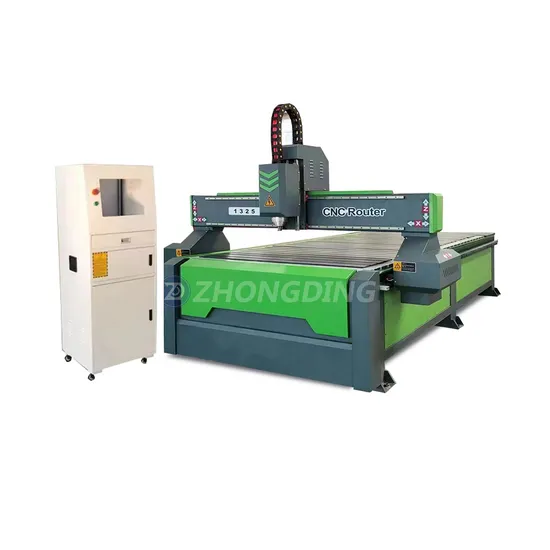

ZD1325 Electric Wood Router Other Woodworking Machinery
ZD1325 Electric Wood Router -Adopt the gantry structure, the guide rail support surface is stable, the rack drive mode, the transmission is stable, guarantees the long time high speed movement does not deform, does not shake. The linear guideway and y axis are driven by double motors, which have large bearing redundancy and long life. Using double rack transmission, the operation is simpler and the design is more humanized. A variety of software compatible, compatible with type3/artcam/castmate/ carved / Wentai and other design and production software. Product Specifications
| 1325 CNC router | |
| Model | 1325 |
| Working size | 1300x2500mm |
| Working height | 200mm |
| Running speed | 0-18m/min |
| Processing speed | 0-10m/min. |
| Drive way | Changzhou Anhao 450B Stepper Motor |
| Drive | Shenzhen Thessai 860 stepper driver |
| Spindle motor | 3.2kw water-cooled variable frequency spindle |
| XY axis guide and transmission | 20 linear guideway, high precision rack drive |
| Z axis guide and transmission | 20 linear guideway, original tbi ball rod transmission |
| Voltage | 220V/50hz(380V/50Hz) |
| Supported formats | *nc,G code,*uoo,*mmg,*plt |
| Control system | NCstudio |
| Oil lubrication | Manual oiling |
| Control cabinet | Independent control cabinet |
Product Details
Application
Exhibition
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice. Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate. FAQ
