Trdl High Speed CNC Drilling Machine for Rails

Product Description

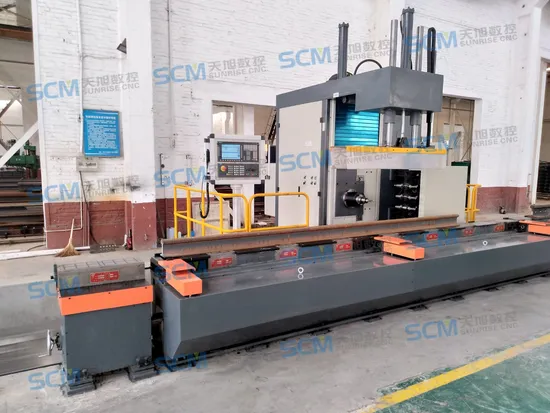

TRDL SERIES HIGH SPEED CNC DRILLING MACHINE FOR RAILS
Applicable industry:
Mainly used for processing turnout rail in the basic rail and AT rail rail waist at the connection hole using carbide drill drilling process, automated production can be realized, reducing the labor intensity of workers, greatly improving labor productivity.
Product Feature:
The machine bed is separated from the table, and the moving column and the drilling power head are mounted on the bed. A strong electromagnetic suction cup is installed on the machine table to tighten the workpiece. The working table is installed with manual tilting wedge type auxiliary support device at the end away from the discharging rollers.
The drilling power box adopts ram-type structure, guided by large-size roller guideway, which is installed on the column with large cross-section size to improve the rigidity of the machine tool, and the up and down movement is driven by AC servomotor driven ballscrew sub-subsidiary, and the upper part is equipped with balancing oil cylinder.
The drilling power box adopts high-speed precision spindle with spindle servo motor. It has the function of automatic tool change and is equipped with linear tool magazine with four tool positions to improve the machining efficiency.
The moving column is installed with a pressing oil cylinder, which presses the workpiece and improves the clamping rigidity when machining rails.
The movement of the main machine on the bed and the movement of the power head on the column are equipped with a separate magnetic scale inspection system, which can ensure the positioning accuracy of the coordinate movement.
The drilling tool adopts indexable carbide U drill, and the spindle is hollow and cooled by air mist.
Optional counter-angle chamfering unit is available. Product Parameters

Model		TRDL25
Workpiece model	Basic rail model	43Kg/m, 50Kg/m, 60Kg/m, 75Kg/m, UIC54, UIC60
	AT rail model	50AT, 60 AT, 75AT, UIC60D40
	AT tip rail heel end forging section
	Slotted guard rail	UIC33
	Special section wing rail	60TYPunching, marking, shearing
Range of maximum section size of rails (mm)	Bottom width	40~152
	Rail height	93~192
	Web thickness	14.5~44
Rail length (after sawing) (m)		2~25
Material		U71Mn σb≥880MPa HB260~300
		U75V σb≥980 MPa HB280~320
Spindle Qty.		1 or 2
Spindle taper		BT50
Number of tools in tool magazine		≥4
Max. hole diameter (mm)		50 or 65
Spindle rotation speed (r/min)		10~3250
Spindle Motor power (kW)		22 or 37
Cooling system		oil cooling
CNC system		SIEMENS
