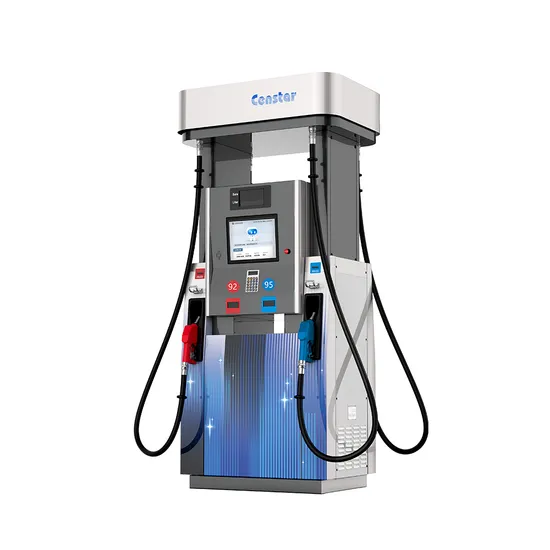

Tatsuno Fuel Dispenser Fuel Station Dispenser 4 Nozzle for Gasoline and Diesel

Product Description

Censtar Starry 3 Series Fuel DispenserRich industry experience, tax control transformation, IC card transformation, large zero pipe transformation, oil and gas recovery transformation, cash collection system, on-line monitoring, leakage prevention transformation, gas station management system and other projects deployment and implementation experience.
the features of Censtar Starry 3 Series Fuel Dispenser
HIGH SECURITY SECURED WATERPROOF AND DUSTPROOF
6200 Main Board: Latest Electronic Technology, More Safety and Stability
Intelligent Voice Broadcast System, Printer Bill System, Full-service Customers
Adjustable Display: Brightness can be adjusted according to the light
Pos Smart Upgrade Simply Maintenance
High-precision Flow Meter: Shell use unique technical processing, moistureproof,rustproof, All the advanced design assure outstanding performance no malfunctionswithin 5,000,000 liters, life-cycle can reach 10,000,000 liters and wide temperatureadoption from-40C- 55C
Product Configuration
Suction Type - Standard
Basic Configuration: OPW Nozzle, OPW Swivel, XFY Hose, OPW Breakaway Valve, 220V Sida Motor, Bartec Nozzle Switch, PS-100 Pulser, CSP03 Gear Pump, LLJ10 Flow Meter, 0810 Washable Filter, Chunhui Solenoid Valve, Emergency Stop Button, Censtar Electrical Control Unit.
Dispenser Type - Standard
Basic Configuration: OPW Nozzle, OPW Swivel, XFY Hose, OPW Breakaway Valve, Bartec Nozzle Switch, PS-100 Pulser, LLJ10 Flow Meter, 0810 Washable Filter; Chunhui Solenoid Valve, Emergency Stop Button, Cesnstar Electrical Control Unit.
Vapor Recovery System - Standard
OPW Vapor Recovery Nozzle, OPW Vapor
Recovery Breakaway Valve, OPW Vapor Recovery Hose, NP Vapor Recovery Pump, NP Vapor Recovery Control Boards.
Option
Printer, Electrostatic Release Device, Voice Broadcast Function, Hose Suspension Device, Voice Intercom Device, Video Intercom Device, Bank Card Payment, Barcode Pay, Vapor Recovery Online Monitoring System, Non-inductive Pay, Face Scanning Etc.
Censtar Starry 3 Series Fuel Dispenser Technical Parameters:

Accuracy	±0.25%
Flow Rate Range	5-50L/Min or 8-80L/Min
Intake vacuun	≥54KPA
Display	sales 0.00 to9999999
Noise	≤80dB(A)
Volume	0.00to9999999
Unit Price	0.00 to 99999( Decimal point position can be chosen)
Electrical Totalizer	0.00 to 99999999,99
Electrical Mechanical Totalizer	0.00 to 9999999
Power Supply	AC380V or AC220V with a changing range from-15%to +10%
Aotor's Output Power	750W and 1000W
Working Environmental Temperature	-40ºC to+55ºC
Relative Humidity	30% to 90%
