Juli Fixed Type Manual Trolley Type Electric Trolley Hoist Electric Chain Hoist

Product Description

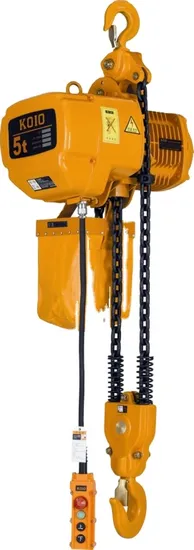

HHBB Electric Chain Hoist
1) Housing
aluminum alloy housing, solid and light, fast heat dissipation, continuous use efficiency up to 40%, integral closed structure, can be used in chemical, electroplating plants and other places
2) Reverse protection device
special wire device, the control circuit cannot operate when the power connection is wrong.
3) Limit switch
there are limit switch devices on and off, so as to stop automatically, prevent the chain from exceeding, and ensure safety Braking device: this device can realize instant braking when power is cut off.
4) Alloy steel chain
imported FEC80 superstrong heat treatment alloy steel chain.
Appearance:

Inside fairy low buildings, especially suitable for using in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces in the buildings is required.
HHBB remote control 1 ton electric chain hoist is the lightest hoist of HHBB series. We have different optional configurations for you to choose: fixed, movable, low clearance, single-speed, double-speed etc.

The low clearance electric chain hoist type is a characteristic product of ours. It is typical structure in shortening between the distance of the cargo and the beam tracks, applicable to operations.

The hook is hot forged with perfect strength that is hard to break. 360 degrees rotation and safety tongue piece. Even the hook is damaged by overload,it will only been plastic distored and never been brittle fractured.
1.HHBB remote control 1 ton electric chain hoist is provided with an independent gearbox system with all gears oil immersed in a compact gearbox case, thus greatly reducing noise and prolonging service life of gears. The electric motor and circuit system feature great sealing and reliable insulation, and enjoy overload protection and motor thermal protection.
2.HHBB remote control 1 ton electric chain hoist can be mounted on joist steel, curve rail and arm crane as well as on manual monorail trolley and electric monorail trolley for lifting heavy objects. In addition, the chain hoisting equipment can be fitted with wireless remote control device, enabling it to be used in the environment that is harmful to the operator.

Product Parameters

Product name	HHBB Electric hoist remote control 1 ton electric chain hoist
Chain	Alloy steel chain FEC80
Control voltage	24/36/48V
Lifting height	3m-30m
Voltage	220V~440V 50Hz/60Hz
packing	1pc/carton

Specifications
Capacity	1t	Travelling speed	21m/min 11m/min
Lifting speed	6.8m/min 2.3m/min	Control voltage	24V/36V/48V
Motor power	1.1kW	No. of load chain	1
Rotation speed	1440r/min	Spec. of load chain	7.1mm
Voltage	220V~440V,50/60Hz	Weight	65kg
Phase	1-Phase/3-Phase	I-beam	75mm~178mm
