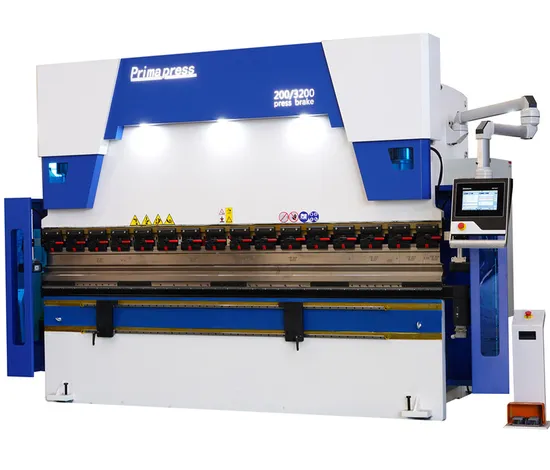

We67K 200t3200mm Servo Electro-Hydraulic CNC Press Brake with Esa875 System

Product Description

Primapress ESA875 Bending machine CNC Hydraulic Press Brake machine
Product Application 1.Totally European design, streamlined looking
2.Taking off inner-stress of welded parts by tempering, good stability
3.Romove rust with sand-blast and coated with anti-rust paint
4.Adopt Spanish pentahedron machine center, once clamping can finish all working surfaces which will guarantee dimension precision and position precision.
5.The design of the machine frame is a critical part of any machine with relation to its ability to produce accurate parts for a long period of time. WE67K Hydraulic metal 6.plate press brake , steel sheet bending machine , SS plate press brake Frames, assembly surfaces and connection holes are machined after the welding process, up to 60' in a single pass.
7.Supplying three front sheet supports , Finish of Nippon Polyurethane paint.

1. Main configuration list
1)	NC Control system	E21NC SystemE10NC System
2)	Electrical components	Schneider Electrical from French
3)	Main Motor	Siemens from Germany
4)	BackGauge & RAMDrive	Inverter from Taiwan delta	Accurate positioning control
5)	Ball screw/ Liner guide	HIWIN from TaiWan Brand
6)	Foot switch	KACON from South Korea
7)	Travel switch	Schneider Electrical from French
8)	Hydraulic System	USA Sunny
9)	Hydraulic Pump	Bosch-Rexroth form Germany	Optional
10)	Tubing connector	EMB form Germany Brand
11)	Manual Crowning system	Pls inquire us	Optional
12)	Three color Alarm Lamp	√Yes No
2.Safety Configuration
1)	Warning of high oil temperature	√Yes No
2)	High oil pressure protection	√Yes No
3)	Motor overload protection	√Yes No
4)	Laser Safety Protection	Yes √No	Fixed type(metal)
5)	Left & Right side protection	√Yes No
6)	Electricity leakage protection	√Yes No
7)	Safety Relay	√Yes No
8)	Monitoring and Redundant valves	√Yes No
9)	Safety standards	√CE NR-12 OSHA

Nanjing Prima CNC Machinery Co., Ltd which is located in the center of China's machine tool industry, Mingjue Industrial Park , Shiqiu Town, Lishui Zone and Nanjing. Our company specializes in Table type CNC Fiber Laser cutting machine, exchangeable table cnc fiber laser cutting machine, press brake, shearing machine , ironworker, punching machine , HVAC ducting machine and other metal forming forging equipment development and sales.
Our product positioning in the middle-top quality class. We commit a modern enterprise management methods, committed management and meticulous management and zero defect operation. Based on the quality of the product management, its excellent quality, innovative design, reasonable price, and improve after-sales service to win the majority of Chinese and foreign customers praise. Primapress Brand sheet metal processing equipment widely used in automobile manufacturing, communications, computers and so on. Prima CNC insist on leading technology strategy, positioning in the "do-class machine, a first-class brand," the high level of long-term sales of CNC machine tools in the process, not only to cultivate a number of series of numerical control products, while cultivating a group of skilled, practical style of high-quality workforce. Enterprises have our own research and development institutions, with the domestic strong product research and development of skills. Primapress specializes in the export business, our company has already CE certification and have one international after-sales team. Primapress 100t 3200mm Ct8 Adjustable RAM Stroke Sheet Bender Bending machine press brake machine
Our machines are widely exported to Southeast Asia, EU, USA , South America, the Middle East and other markets around 100 nations with good quality, suitable price, comprehensive after-sales service, was widely welcomed by customers and unanimously approved. Our company ambition is "build quality brand, do excellent machine" which is also the company's entrepreneurial spirit and look forward to domestic and overseas friends to visit. 500W CNC Fiber Laser Cutting Machine For Stainless Steel Carbon Steel Iron Metal hot sale cnc steel sheet metal fiber laser cutting machine with best price.
Packing&Delivery
Price : Give me reply, i will give you my favorable price immediately ! Payment term : 30% deposit and the balance paid against copy of B/L in 3 days . Package : Standard exporting package . Operation manual and video disc : When delivery machine, the related operation instruction of model will delivery together with machine. And in the instruction, there is teaching video disc .
