High-Performance Rubber Vulcanizing Press Machine with Touching Screen and Yuken Series Hydraulic

Product Description

High-Performance Rubber Vulcanizing Press Machine with Touching Screen and Yuken Series Hydraulic
Supply Range
1. Advanced Column Type Vulcanizing Press
2. High-Efficiency Precure Tread Liner Molding Press
3. Versatile Foaming Press Machine
4. Precision Hydraulic Heating Press Machine
5. Robust Plate Vulcanizing Machine Product Description 1. Designed for diverse rubber moulding production needs, ensuring versatility and efficiency.
2. Equipped with PLC control and an intuitive touch screen for user-friendly operation.
3. Features automatic mold closing, air exhaust, temperature control, and timing settings for streamlined production.
4. Includes a custom mold push-out system for enhanced productivity.
5. High-precision hydraulic cylinder with superior grinding and finishing for optimum performance.
6. Stable hydraulic pressure station ensuring consistent operation.

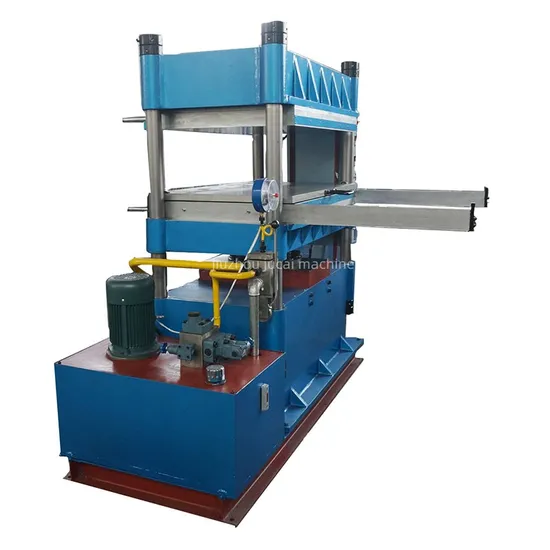

Machine Display
Machine Feature 1. The cylinder (piston) utilizes a durable seal structure with an innovative design and reliable function. It features high-quality YX-type polyurethane seals that are oil and aging resistant. Our machine incorporates a double-sealing structure for easy maintenance and protection.
2. Comprehensive automatic control: covers mold closing, exhausting, heating with stable temperature maintenance, timing for vulcanization, alarming, and mold opening.Ensures seamless automatic vulcanization processes with built-in alarms and automatic mold opening functionality.
3. The digital display shows the set vulcanizing temperature clearly for precise control.
4. Easily set vulcanizing time via the PLC screen. For instance, if you wish to vulcanize for 1 minute, simply set it, and the machine will alert and open the mold automatically upon completion.
5. The pillar is crafted from premium #45 steel, significantly improving hardness, wear resistance, and durability through quenching and tempering.
6. The top beam and bottom plate are constructed from high-quality Q-235A ductile iron. Post-welding, they undergo artificial vibration or high-temperature aging treatment to eliminate internal stress and prevent deformation.
7. The plunger is manufactured from LG-P cold hard alloy steel with a surface hardness of HRC 60-70 and a chilled layer depth of 8-15mm, ensuring long-lasting durability.
8. Major hydraulic components are imported from Taiwan, ensuring superior quality over local brands.
Product Parameters

model/	XLB-D0.25MN	XLB-D0.5MN	XLB-D0.8MN	XLB-D1.0MN	XLB-D1.0MN
Mold closing force	0.25	0.5	0.8	1.0	1.0
Heating plate size	300*300 350*350	400*400 450*450 500*500	500*500 600*600	450*450	550*550
Working layer	1 / 2	1/ 2	1 / 2	1 / 2	1 / 2
Plate clearance	200	200	200	200	200
Plunger stroke	200/400	200/400	200/400	200 /400	200 /400
Plunger diameter	152	200	250	285	300
Unit area pressure of heating plate (kg/cm2)	27.7 20.4	31.2 24.6	32 22.2	49.3	33
Heating	Electrical	Electrical	Electrical	Electrical	Electrical
Heating temperature	300	300	300	300	300
Control	automatic	automatic	automatic	automatic	automatic
Optional control way	Semi-automatic/ common automatic /PLC text type/ PLC+ touching screen
Gross weight	900	1200/1350/1450	1550/1750	2200	2300

model	XLB-D1.0MN	XLB-D1.2 MN	XLB-D1.6 MN	XLB-D2.0MN	XLB-D2.5MN
Mold closing force	1.0	1.2	1.6 MN	2.0	2.5
Heating plate size	600*600	700*700	750*750	800*800	1000*1000
Working layer	1 / 2	1/ 2	1 / 2	1 / 2	1 / 2
Plate clearance	200	200	200	200	200
Plunger stroke	200/400	200/400	200/400	200 /400	200 /400
Plunger diameter	300	320	360	400	450
Unit area pressure of heating plate (kg/cm2)	27.7	24.5	25	31.25	25
Heating	Electrical	Electrical	Electrical	Electrical	Electrical
Heating temperature	300	300	300	300	300
Control	automatic	automatic	automatic	automatic	automatic
Optional control way	Semi-automatic/ common automatic /PLC text type/ PLC+ touching screen

Company Profile
1.Are your company a trading one or a factory?
Factory + trade (integration), 30 years focusing on rubber machine design and production .
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.
