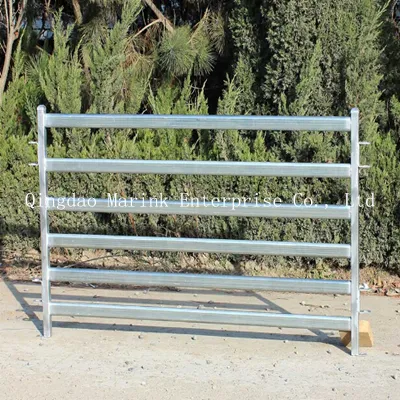

Hot-Dipped Galvanized Cattle Yard Fence Panel with Round Pipe or Square Tube

Product Description

Hot-dipped Galvanized Cattle Yard Fence Panel
with Round Pipe or Square Tube
Company Introduction
Qingdao Marink Enterprise Co., Ltd. is one of the leading manufacturers in China for livestock equipments including sheep hurdle&crush, livestock panel, force yard, hay baskets and relating accessories and fitting parts. We are well known for the punctual delivery, excellet production qualiity and the most competitive prices. Marink's mission is tooffer the best quatiy products that meet or even exceed our customers expectations.
Product Introduction
1.Materials
High quality low carbon steel tube or pipe.
2.Anti corrosion form:
Pre galvanized, zinc coated: 80-120g/m²
Hot dip galvanized, zinc coated: 300-350g/m²
3.Pipe Categries Style
1> Round Pipe Style Cattle Panels
Panel Size: 1.8m height x 2.1m width
2 vertical pipes and 6 horizontal pipes
Both vertical& horizontal rails are OD 32mm pipes or OD 42mm pipe at client's request
Welds :bull bars are fully welded, each weld is protected with epoxy paint
2> Square Pipe Style Cattle Panels
Panels Size: 1.8m height x 2.1m width
2 vertical rails and 6 horizontal rails
Both vertical& horizontal rails are 40x40mm RHS or 50x50mm RHS at client's request
Welds :bull bars are fully welded, each weld is protected with epoxy paint
3> Oval Pipe Style Cattle Panels
Specification1:
panels size: 1800mm height x 2100mm width
Vertical square rails: 40x40mm RHS, 2 bars
Horizontal oval rails: 60x30mm, 6 bars
1 set includes: 2 rain caps, 2 U lugs, 2 L lugs, 2 pins and foot plate.
Specification 2:
panels size: 1800mm height x 2100mm width
Vertical square rails: 50x50mm RHS, 2 bars
Horizontal oval rails: 80x40mm, 6 bars
1 set includes: 2 rain caps, 2 U lugs, 2 L lugs, 2 pins and foot plate
4.Livestock Panels Categories
1>

Cow Panels(economical)
Size	1.8m height,2.1m or 2.4m length
Vertical Pipe	RHS 40*40*1.5mm or Round Pipe 40*1.5mm
Horizontal Pipe	Oval Pipe 80*40*1.6mm
Bars/Rails	6 bars/rails
Accessories	With lugs,caps and pins

2>

Cattle Panels(Heavy Duty)
Size	1.5m or 1.8m height,2.4m or 3m length
Vertical Pipe	RHS 50*50*2.0mm or Round Pipe 60*2.0mm
Horizontal Pipe	Oval Pipe 80*40*2.0mm
Bars/Rails	6 bars/rails
Accessories	With lugs,caps and pins

3>
Sheep Fence
The overall size is 1500mm x 940mm high or 3000*940mm with 2 pieces of drag foot.
Posts and drag foot: Dia32*2.0mm HDG pipes.
6 pieces of rails made by dia26*2.0mm HDG pipe
Middle support: 856*50*5.0mm.
Two posts with end caps.

4>

Horse Panels
Size	1.8m height,2.1m or 3m length
Vertical Pipe	RHS 50*50*1.6mm or Round Pipe 50*1.6mm
Horizontal Pipe	1)Round Pipe:32*1.6mm,42*1.6mm 2)Square Pipe:40*40*1.6mm,50*50*1.6mm 3)Oval Pipe:30*60*1.6mm,40*80*1.6mm
Bars/Rails	6 bars/rails
Accessories	With lugs,caps and pins

5>
Livestock Fence Gate

Size: 2.2m x 2.0m
Frame: Horizontal & Vertical pipe: 50 mm x 50 mm RHS x 1.8 mm thick with fully welded caps
Cattle Gate Horizontal rail: 40 mm x 80 mm x 1.6mm thick x 6 oval rails
Finishing: hot dipped galvanized ,zinc coating:more than 15 microns
Welds :bull bars are fully welded, each weld is protected with epoxy paint

5.Advantages
Our livestock cattle panel meets Australia standard, and is very popular in the Australian market.The panel are interlocking, very sturdy and easy install, no need to dig holes or lay foundations.
The metal rails are hot dip galvanized before welding, thus has strong capability of anticorrosive.
We are a direct china factory and manufacturer, and can provide you with high quality and best prices.
We have more than 7 years exporting experience,and our products are in hot sale in Australian markets,European countries, America markets etc.

6.Application
Farm corral,keep animals safe and protect your farm fields from wild animals or thieves.
We have our own factories which manufacturing tube,pipe,steel channel and other steel accessories,free customization.
7.Packing
Bundle with Plastics Strapping, on Wood Pallet
8.Our Service
1>Reply your enquiry in 24 working hours.
2>Experienced staffs answer all your question in professional and fluent English.
3>Samples are available free.
4>Exclusive and unique solution can be provided to our customer by your own well-trade and professional engineers and staffs.
5>Special discount and protection of sales area provided to your distributor.
6>Do the best cheap wholesale livestock corral fence panel in China.
9.Trade Items
Sample time: 5-7days
Accepted Delivery Terms: FOB, CIF,CFR
Payment Terms :T/T, LC, Western Union
Nearest Port :Qingdao
Delivery Time: After 20 days upon received T/T30% advance payment

CHOOSE US
More than 10 years' experience in forging area;
Customization accepted;
100% quality checking before shipping;
Trial order or sample order for your selection;
OEM or ODM service available.
With rich manufacturing experience and full strict control of raw materials and products inspection, we can provide good quality galvanized/powder coating cattle fence panel with competitive prices , timely delivery and excellent services. We sincerely would like to establish long-term business relationship with you!
